200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 2-18
2. Installation Procedures

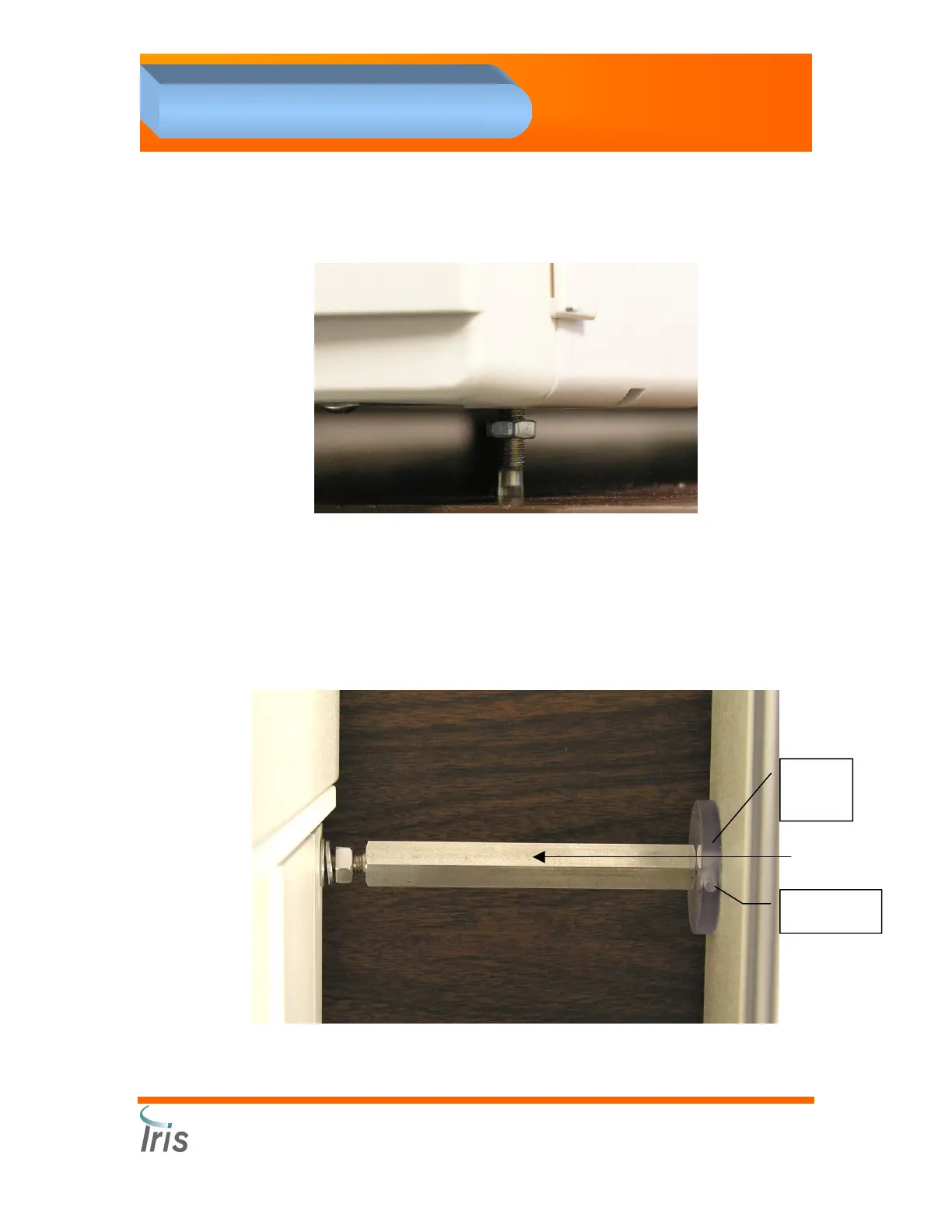

7. Adjust the leveling feet under the Load Station to assure a smooth
transfer of racks.
8. Attach the securing brace to the bottom screw port on the backside of
the iQ200 sampler side cover. The brace mount is attached to the
Load Station with an adhesive strip. Secure the brace to the brace
mount using the setscrew. (see picture below.)
Securing
Brace
Brace
Mount
Set Screw
