JCM iPRO-100-SH2-RC - Ipro-RC Rear Transport Assembly 2 Exploded View; Figure 7-13 Ipro-RC Rear Transport Assembly 2 Exploded View

P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
7-25
Exploded Views and Parts Lists iPRO-RC™ Series Banknote Recycler Section 7

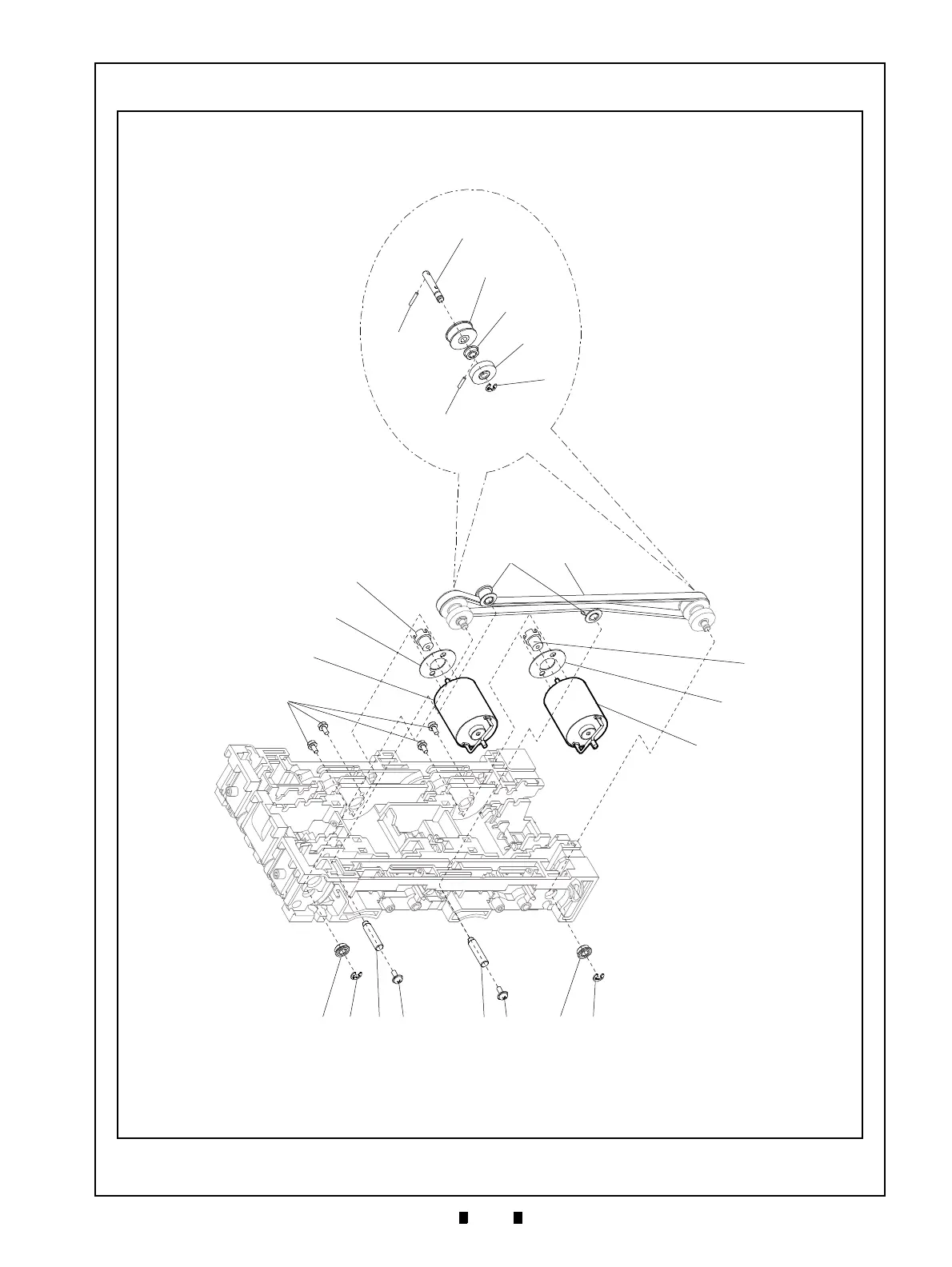

iPRO-RC Rear Transport Assembly 2 Exploded View
Figure 7-13 iPRO-RC Rear Transport Assem-
bly 2 Exploded View
1209
1210
1211
1212
1215
1213
1214
1208
1207
219
1205
1208
1207
220
1200 1201
1203 1206 1204 1206 1202 1204 1203 1202
Figure 7-13 iPRO-RC Rear Transport Assembly 2 Exploded View
