Section 2 iPRO-RC™ Series Banknote Recycler Installation
Sensor and Roller Locations

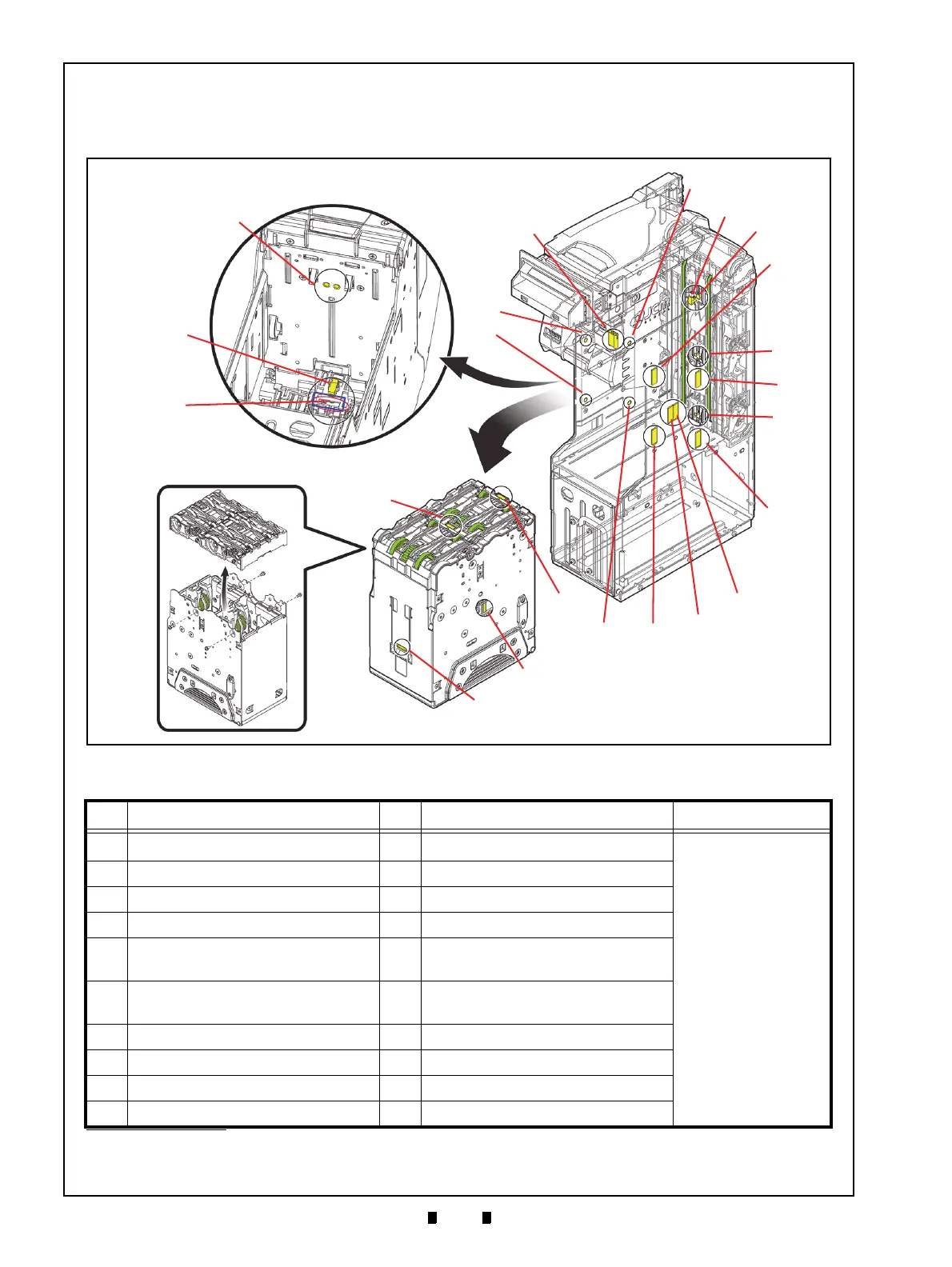

Figure 2-10 illustrates the various iPRO-RC™ Unit’s sensor cleaning locations. Table 2-11 lists the iPRO-
RC™ sensor type cleaning methods.
Table 2-11 iPRO-RC Sensor Type Cleaning Methods
Sym. Sensor/Roller Type Sym. Sensor/Roller Type Cleaning Method
a
RC2 End Sensor LED
k
RC2 Full Sensor LED
Wipe clean using a
lint-free Micro-fiber
cloth, or blow clean
using Compressed
Air
*
*. Wipe and clean all of the Green-colored Rollers and Belts shown in Figure 2-10 using a slightly damp (not wet), lint-free Micro-fiber cloth.
Caution! If liquids drip into the interior, the Unit may not perform correctly.
b RC1 End Sensor LED l Lifter Home Position Sensor LED
c Recycle Unit Sensor m Lifter Home Position Sensor PT
d RC1 Full Sensor PT n RC2 End Sensor PT
e Double Notes Detection Sensor
LED
o
RC2 Full Sensor PT
f Double Notes Detection Sensor
PT
p
Transport Sensor 2 Prism
g RC1 End Sensor PT q Lifter Home Position Sensor Prism
h Transport Sensor 1 r Recycler Unit Sensor Prism
i RC1 Full Sensor LED s Transport Sensor 1 Prism
j Transport Sensor 2
Figure 2-10 iPRO-RC Sensor Cleaning
Locations
Figure 2-10 iPRO-RC Sensor Cleaning Locations
b
a
c
d
f
k
l
f
h
q
r
j
n
p
m
o
g
e
c
i
e
NOTE: Remove the Recycler Unit and clean the enclosed
Blue Rectangular Area (f) with Compressed Air.
NOTE: Disassemble the RC Banknote Path Race and clean the Pick Rollers
using a slightly damp (not wet), lint-free Micro-fiber cloth.
NOTE: Check that the Rear Belts are
properly installed following
cleaning.
s
