P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
7-7
Exploded Views and Parts Lists iPRO-RC™ Series Banknote Recycler Section 7

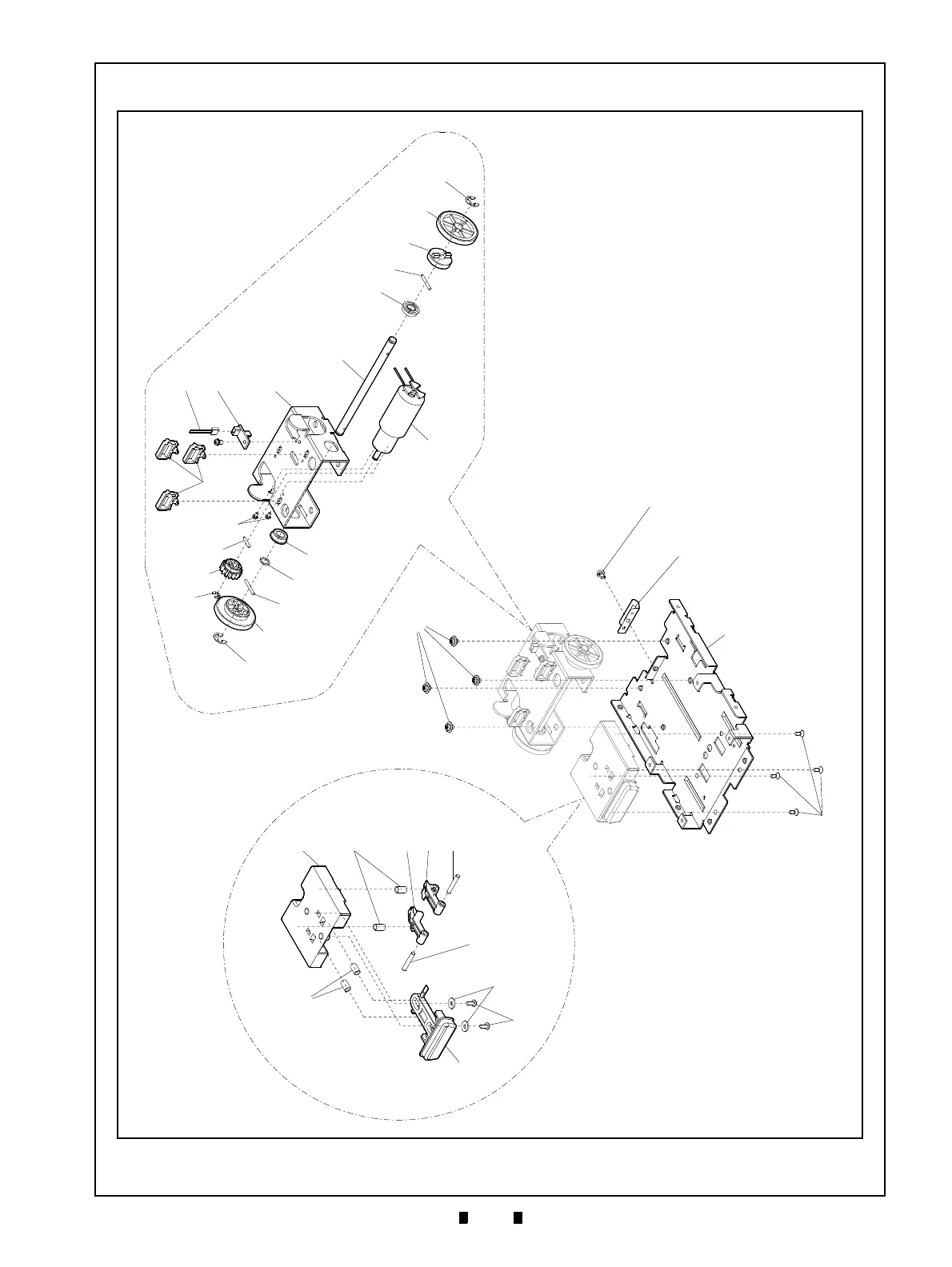

iPRO-RC Frame Unit 3 Exploded View
Figure 7-4 iPRO-RC Frame Unit 3 Exploded
View
300
301
302
302
303
304
305
306
307
308
309
318
320
320
309
221
311
215
312
318
319
307
321
322
310
323
325
327
314
326
313
317
315
316
317
Figure 7-4 iPRO-RC Frame Unit 3 Exploded View
