Appendix A iPRO-RC™ Series Banknote Recycler Troubleshooting
Reference Paper Handling
All JCM Reference Paper should be handled as follows:
1. Do not allow the Reference Papers to endure high temperatures and/or high humidity environments.
2. Store unused Reference Papers in their original Shipping Carton
to avoid exposing them to direct Sunlight and/
or bright indoor light. Ensure that the Reference Papers being stored are not damaged as they are replaced back
into their shipping carton.
3. Do not use Reference Paper containing damaged areas
that are worn, dirty, wrinkled, distorted
and/or discolored.
4. Use new Reference Paper for every 400 Units being calib
rated. Incorrect calibration errors may occur when
using Reference Paper that has been used for calibration of more than 400 Units.
Table A-5 Ad
ditional Maintenance Equipment Parts List
Ltr.
EDP No.
*
*. A Product EDP Number that begins with a “G” is a Product developed by JCM-E Germany.
JAC No. Description Qty. Remark
a 202366 Use EDP# Reference Paper (KS-087) 1
b G00205 501-100218R UAC Module 1
c G00230 400-100249R UAC USB Cable 1
d G00213 302-100007RA Power Cord (USA or Euro) 1 For UAC
e G00286 Use G# AC Power Adaptor 1 For UAC
f G00388 Use G# iPRO-RC Harness 1
For ID003/
ccT
alk
Maintenance Equipment Requirements
This section provides product information for obtaining the additional iPRO-RC™ Maintenance
Equipment.

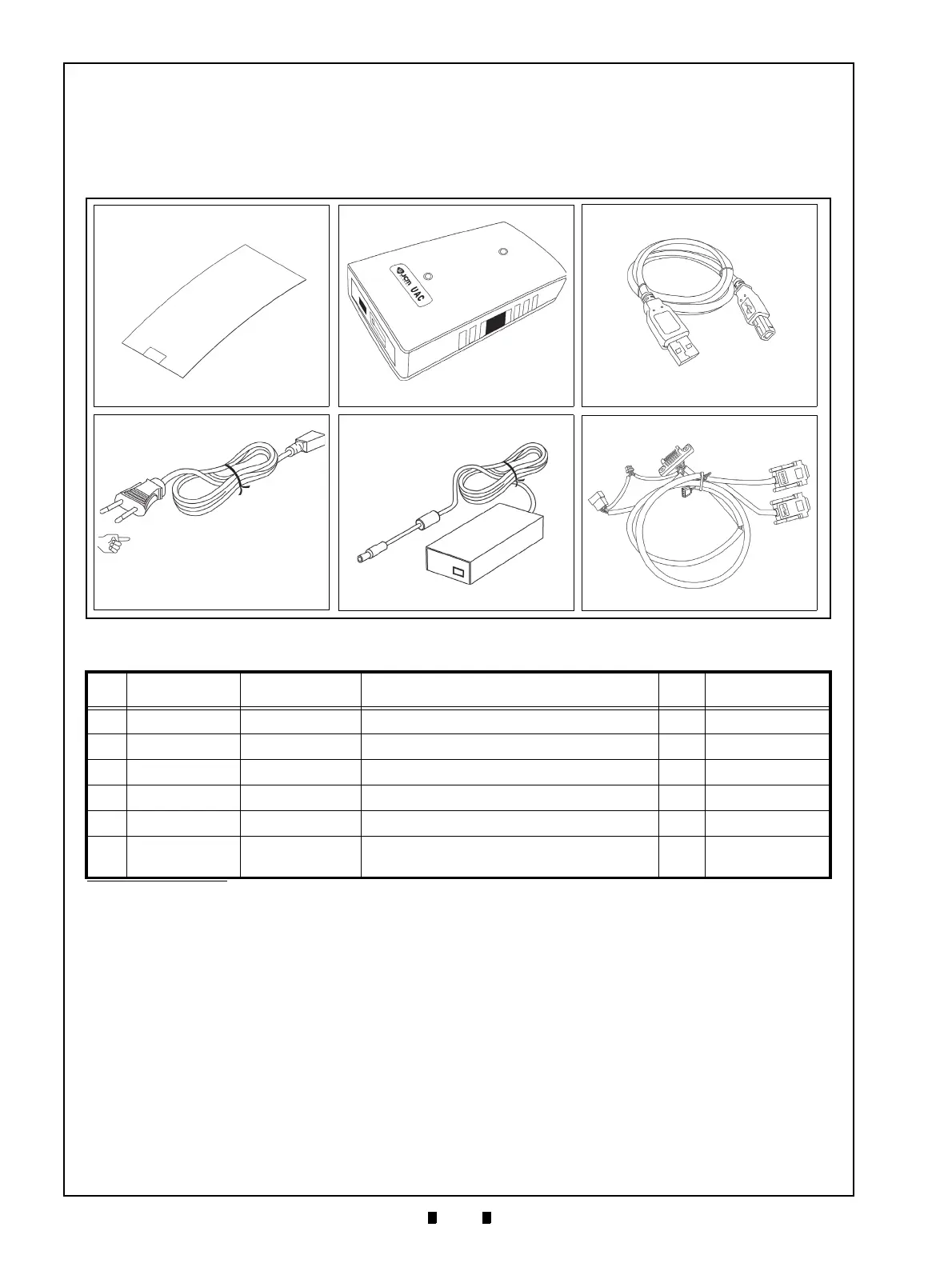

Figure A-7 Additional Maintenance Equipment
Requirements
Additional iPRO-RC Maintenance Equipment
NOTE: Only the European
Connector Version is shown here.
Order the “JAC No.” to obtain the
USA Style AC Wall Plug.
b
d
e
c
a
f
Figure A-7 Additional Maintenance Equipment Requirements
To Next Page
