7-35

Exploded Views and Parts Lists iPRO-RC™ Series Banknote Recycler Section 7

WBA-SH2 Cash Box Exploded View 1

WBA-SH2 Cash Box Parts List 1

Table 7-18 WBA-SH2 Cash Box Parts List 1

Ref No. EDP No. Description Qty Remark

1700 131845 WBA-SH Half Box 1

1701 131844 WBA-SH2 Pusher Mechanism 1

170

2 003609 M3x6 Washer (Small) 2

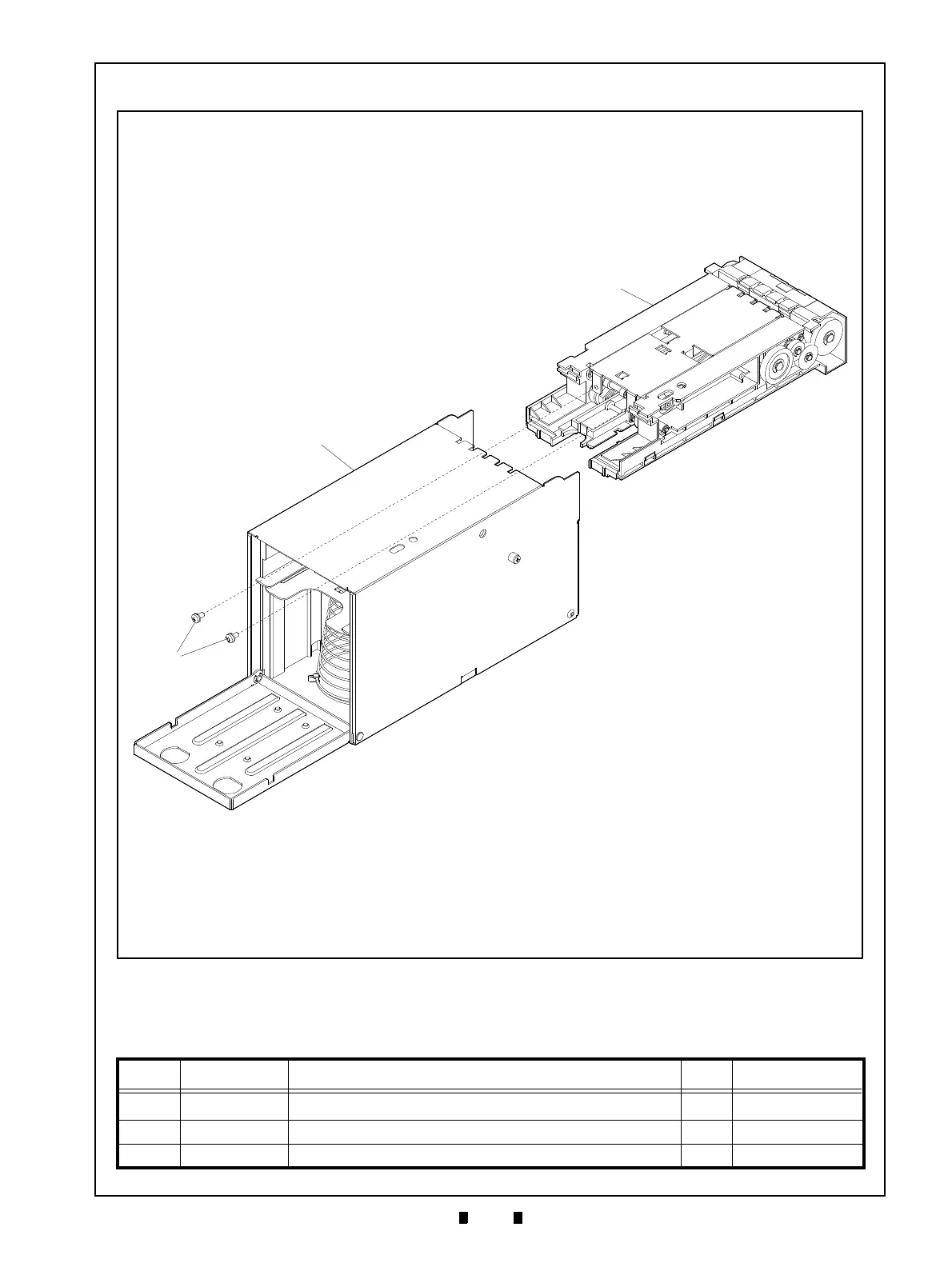

Figure 7-18 WBA-SH2 Cash Box Exploded

1700

1701

1702

Figure 7-18 WBA-SH2 Cash Box Exploded View 1
