Performance Tests iPRO-RC™ Series Banknote Recycler Section 6
5. Click on the “OK” Screen
Button to end the Procedure (Figure 6-42 b).
This completes the Model Information Saving
Procedure.
Reading the Model Information
Perform the following steps to read an iPRO-RC™
Unit’s Model Information.
1. On the “iPRO-RC Maintenance Tool” Screen,
click on the “
Serial No. =>” Screen
Button (Figure 6-43 a).
2. Confirm that the “
iPRO-RC Maintenance Tool”
Screen shown in Figure 6-44 appears.
3. Click on the “
Loading the Model Information”
Screen Button (Figure 6-44 a)
located at the bottom of the “
Loading the Model
Information
” Text Fields.
The current Model Information for the
Date, Ver-
sion, Model Name
and Serial No. will appear in
each related Cell Field located below the “
Load-
ing the Model Information
” Text Field (Figure 6-
45 a), and a “
Loading the Model Information Com-
pleted
” message will appear in the upper Text
Field (Figure 6-45 b).
This completes the Reading Model Information
Procedure.
Reading the iPRO-RC Maintenance Tool
Version
Perform the following steps to read an iPRO-RC™
Unit’s Software Version using the “
iPRO-RCMain-
tenanceTool.exe
” Application.
1. Click on the “iPRO-RC Maintenance Tool” Tool
Bar’s “
Help” pull-down Menu, and select “Ver-
sion
” from the selections available (Figure 6-46
a).
2. The “
iPRO-RCMaintenanceTool.exe” Calibration
Application Version information will appear in a
Pop-up Dialog Screen on the PC. Each Version is
indicated by an “X.X.X.X” Text Format (Figure
6-47 a).
3. Click on the “
OK” Screen Button to
accept the reported state (Figure 6-47 b).
This completes the Reading Software Version
Information Procedure.

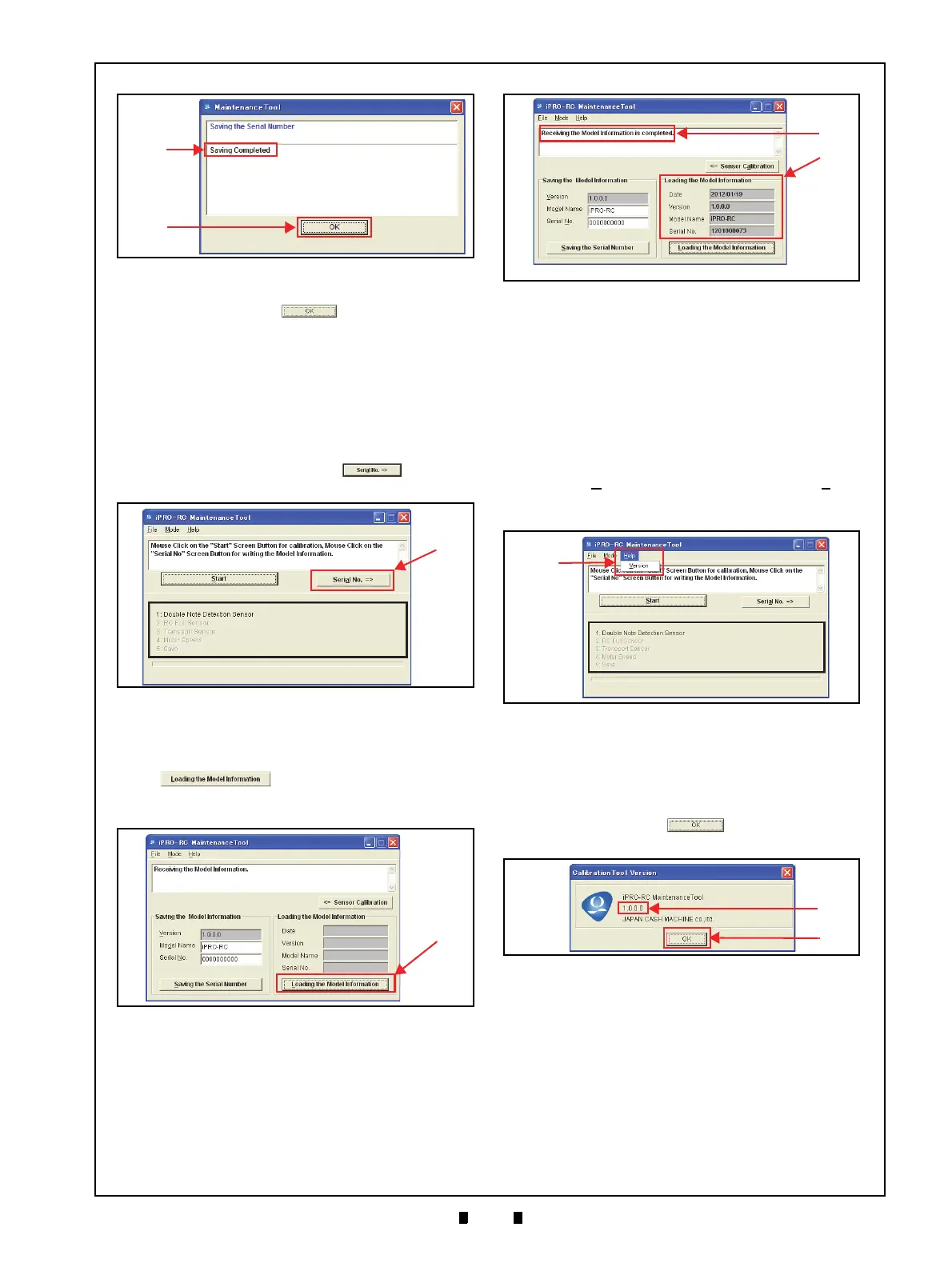

Figure 6-42 Model Information Saving Com-
pleted Screen
Figure 6-42 Model Information Saving Completed
Screen
Figure 6-43 Sensor Calibration Screen Button
Figure 6-43 Sensor Calibration Screen Button
Figure 6-44 Loading Model Information
Screen 1
Figure 6-44 Loading Model Information Screen 1
Figure 6-45 Loading Model Information
Screen 2
Figure 6-45 Loading Model Information Screen 2
a
NOTE: The Saved Model Information shown is the default information.
b
Figure 6-46 Version Information Screen 1
Figure 6-46 Version Information Screen 1
Figure 6-47 Version Information Screen 2
Figure 6-47 Version Information Screen 2
