Section 6 iPRO-RC™ Series Banknote Recycler Performance Tests
10. Highlight select the desired iPRO-RC™ Firm-
ware (Figure 6-17 a)
from the PC Folder.
11. Click on the “
Open” Screen
Button (Figure 6-17 b) to launch the selected file.
12. The “
JCM Downloader Suite Edition Version
X.XX
” Screen will re-appear (Figure 6-18).
If the “
Auto Download Mode” Check Box
located next to the “Download” Screen
Button (Figure 6-18 a) is clicked, it will allow the
same iPRO-RC™ Firmware to be downloaded to
another iPRO-RC™ Unit automatically when
Power is supplied to it during the launch of the
JCM Downloader Screen.
The “
Reset” Pull-down Menu contains the
following three (3) selections:
• Auto
• Manual
• Reset.
If “Auto” is left pre-selected in the “Reset” Pull-
down Menu (Figure 6-18 b), the Downloader will
enter Stand-by Mode automatically when down-
loading is complete, and the iPRO™ Transport
Unit LED will then start alternately flashing at a
Green and Red Color rate.
If “
Manual” is selected from the “Reset” Pull-
down Menu, the LED will light a steady Green
Color when the download is complete.
If “
Reset” is selected from the “Reset” Pull-
down Menu, the Downloader’s Status will be
reset back to Stand-by Mode. The LED will again
begin alternately flashing between a Green and
Red Color rate.
13. Click on the center “
Download” Screen
Button (Figure 6-19 a) t
o begin a Firmware
download. The LED will begin flashing alter-
nately at a Green and Red
Color Rate while a
download is in progress. The Downloading
Screen will display a Blue Progress Bar during
the download operation (Figure 6-19 b), and a
Blue
Text Line below the “Download”
Screen Button will indicate the download Per-
centage as “
Downloading : XX%” (Figure 6-19 c).
14. When the desired download is complete, a “
Get-
ting and Verifying CRC and Version information.
”
Blue Text Line will appear (Figure 6-20 a), and
Model Information will start being
collected.
15. First, a “
Download Success. Validator is reboot-
ing.
” message will appear; then, a second “Down-
load Success. Reset Done. Waiting for USB Cable
Discon
nection.
” Blue Text Line will appear (Fig-
ure 6-21 a)
during the Model information collec-
tion process.
16. Confirm that the Host’s Checksum and the Unit’s
Checks
um identically match each other (Figure 6-
21 b) after
the LED starts flashing at a Green
Color Rate.

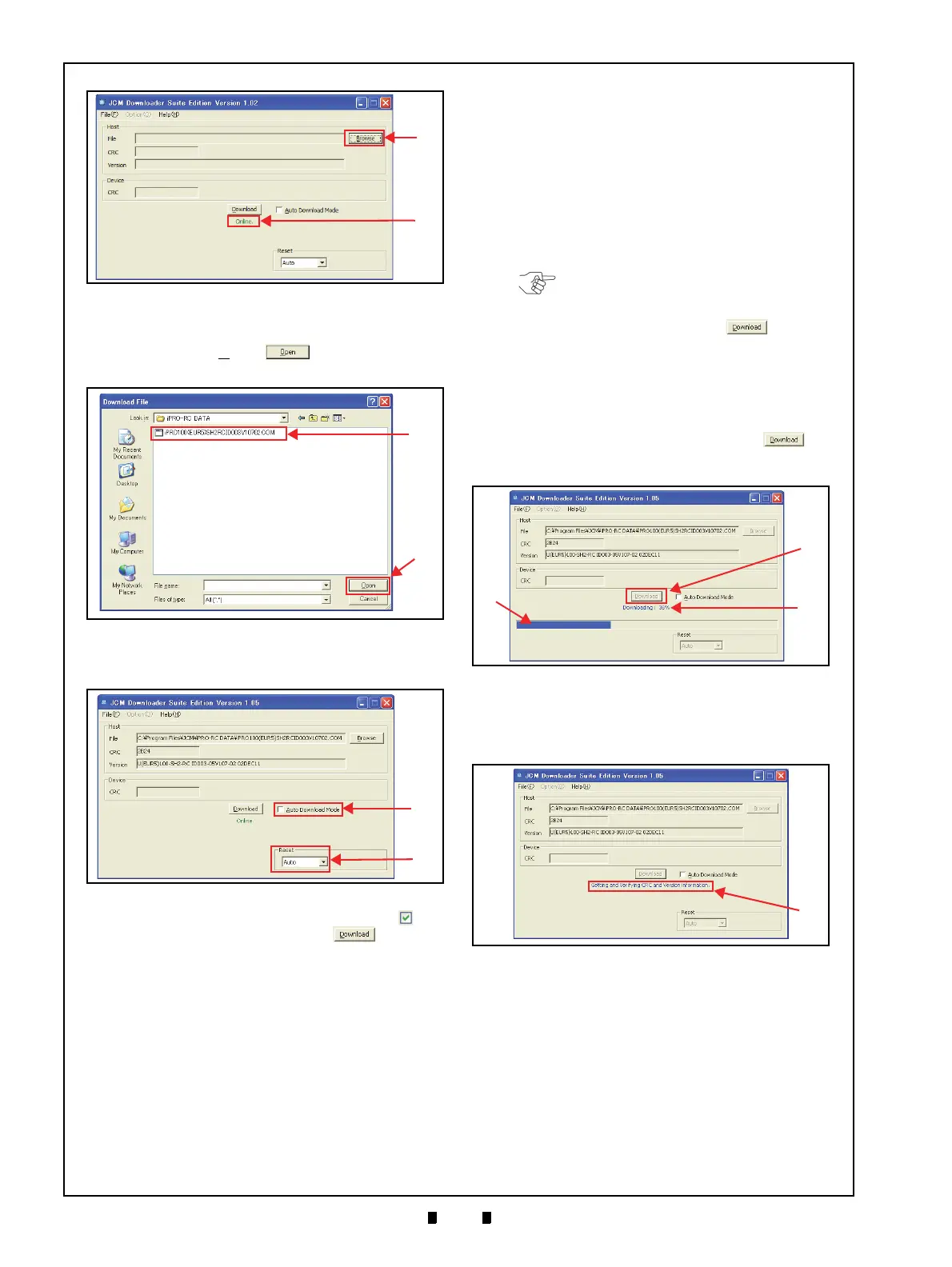

Figure 6-16 Select Firmware 1
Figure 6-16 Select Firmware 1
Figure 6-17 Select Firmware 2
Figure 6-17 Select Firmware 2
Figure 6-18 Select Firmware 3
Figure 6-18 Select Firmware 3
NOTE: All of the above steps are
explained in detail onscreen when “Auto”
is selected in the “Reset” Pull Down Menu.
Figure 6-19 Download Progress Screen
Figure 6-19 Download Progress Screen
Figure 6-20 Download Progress Screen
Figure 6-20 Download Progress Screen
