P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
1-5
General Information iPRO-RC™ Series Banknote Recycler Section 1
Component Names

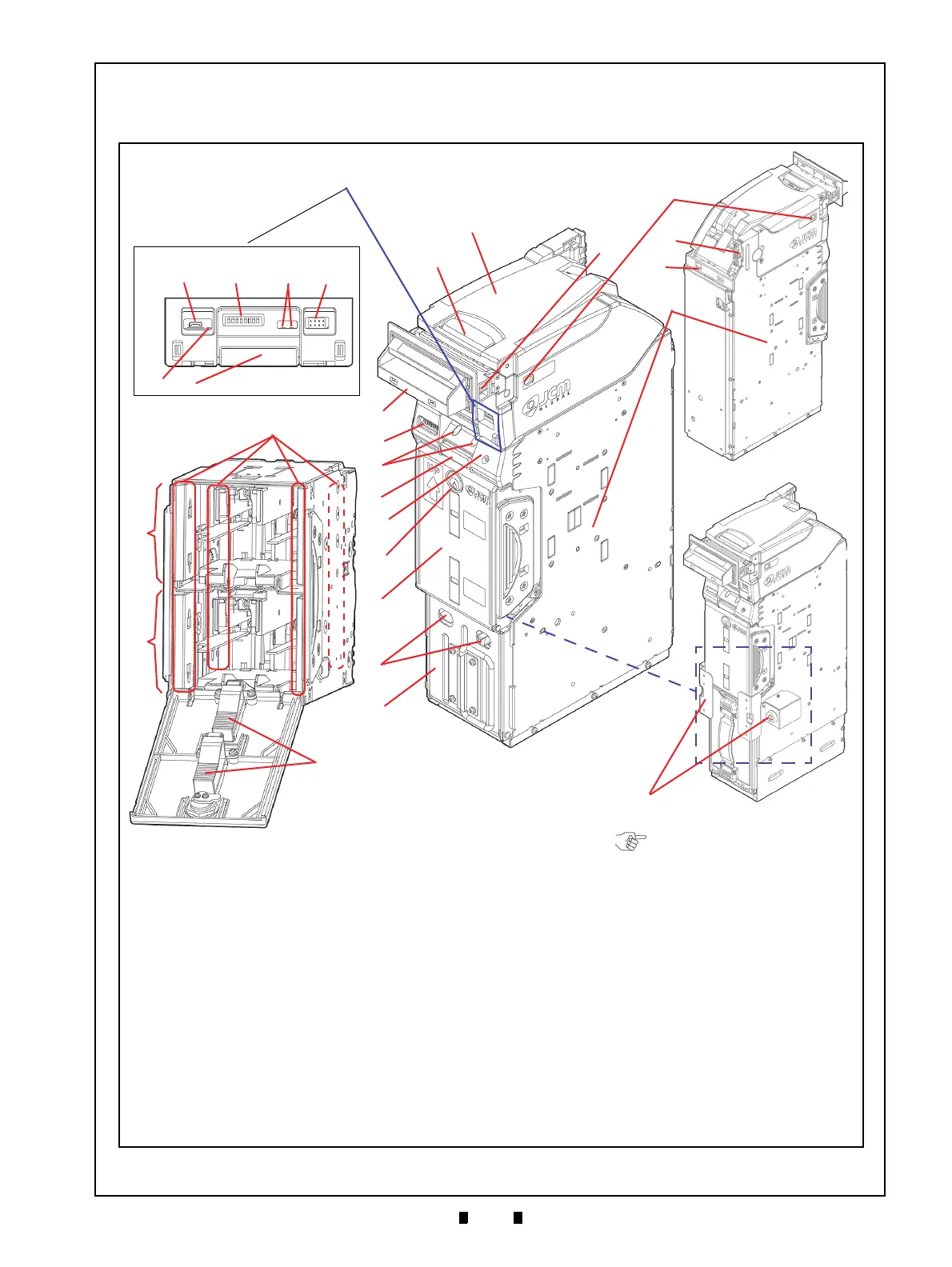

Figure 1-5 illustrates the iPRO-RC™ component names and locations.
Figure 1-5 iPRO-RC Component Names
Figure 1-5 iPRO-RC Component Names
A.iPRO Transport Unit
(User Supplied)
B.iPRO Unit Upper Guide Access Lever
C.Front Panel Access
1.USB mini-B Type Receptacle
(for performing
Software downloads and adjustments)
2.8 Position DIP Switch Block
3.iPRO Transport Unit LEDs (Green & Red)
4.Front Bezel Receptacle (for the Optional Bezel
Assembly Plug)
5.Centering LED
6.Transport Unit Release Lever
D.RC Unit DIP Switch Block
E.RC Unit LEDs
(Green, Red & Yellow)
F. Recycler Unit Release Pushbutton
G.Restore Pushbutton (for moving Banknotes from the
Recycler Unit into the Cash Box)
H.Recycler Unit Lock (Supplied with Key)
I. Recycler Unit
J. Cash Box Lock Holes
(Locks are User Supplied
Options)
K.Cash Box
L. Bezel Accessory
(One of 3 Options Available)
M.Bezel Spacer
N.Centering Guide Release Port
O.Interface Connector
(Connects to the Host Machine)
P. Housing Frame
Q.RC1-Bin Assembly Banknote Space
R.RC2-Bin Assembly Banknote Space
S.Banknote Width Guide
T. Banknote Length Guide
U.Power Connector
V. Optional Lock Unit
(Right or Left side)
A
B
E
G
H
I
L
M
D
F
N
J
K
123
5
4
C: Front Panel Access
6
Recycler Unit Assembly
Rear Side
Front Side
Optional Lock
O
U
P
Q
R
T
C
S
V
NOTE: The Optional Lock is
available for installation on
either the right or left side of an
iPRO-RC Unit.
