JCM iPRO-100-SH2-RC User Manual

P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
6-8
Section 6 iPRO-RC™ Series Banknote Recycler Performance Tests
24. Confirm that the Test’s progress appears on the
“
iPRO-RC Maintenance Tool” Screen by view-
ing the Figure 6-37a Green Progress Bar
.
25. When the RC Bin Transport Motor Tests are com-
plete, the calibration value will be
saved and the
“
Calibration Completed.” Pop-up Dialog Screen
message shown in Figure 6-38 will appear. Click
on the “
OK” Screen Button (Figure 6-38 a)
to complete the Calibration and Testing Proce-
dures.
This completes the iPRO-RC™ Calibration and
Performance Testing Procedures.
Model Information Confirmation
Perform the following steps to confirm the 
iPRO-RC™ Unit’s Model Information.
1. On the “iPRO-100 Maintenance Tool” Screen,
click on the “
Serial No. =>” Screen
Button (Figure 6-39 a).
2. Confirm the “
Model Name” and the “Serial No.”
of the Unit being tested as shown in Figure 6-40.
3. Type the required iPRO-RC™ Model Name using
seven (7) Characters (Figure 6-41 a), and a Serial
No. containing a maximum of ten (10) Characters
(Figure 6-41 b)
into each related Text Entry Field;
then click on the “
Saving the Serial Number”
Screen Button (Figure 6-41 c).
4. Confirm that the message in the second Text Field
of the “
Maintenance Tool” Screen reads “Saving
Completed
” (Figure 6-42 a).

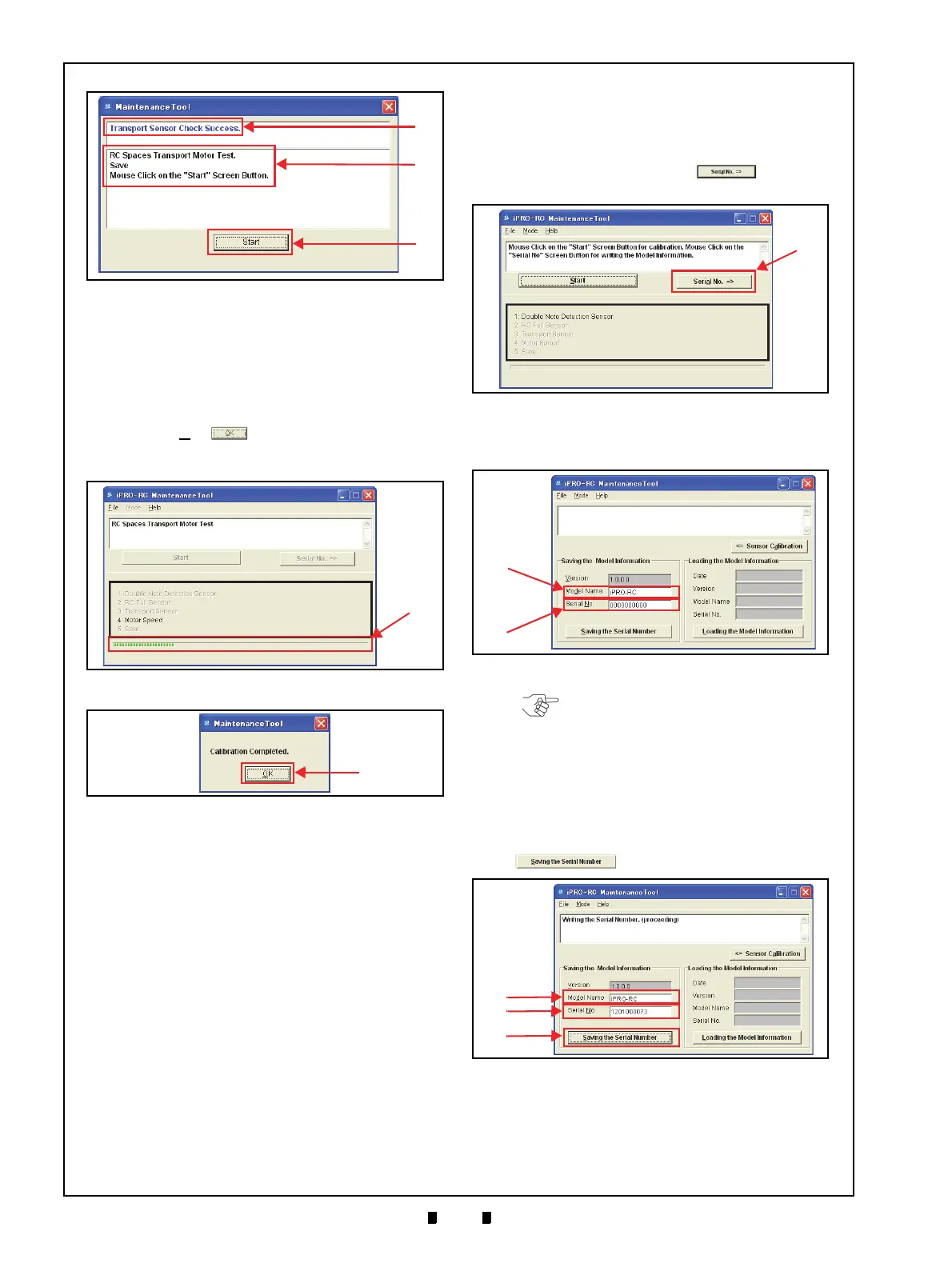

Figure 6-36 iPRO-RC Maintenance Tool
Screen 8
Figure 6-36 iPRO-RC Maintenance Tool Screen 8
b
a
c
Figure 6-37 iPRO-RC Maintenance Tool
Screen 9
Figure 6-37 iPRO-RC Maintenance Tool Screen 9
a
Figure 6-38 Calibration Completed Dialog Box
Figure 6-38 Calibration Completed Dialog Box
a
Figure 6-39 Serial No. Screen Button Location
Figure 6-39 Serial No. Screen Button Location
a
Figure 6-40 Model Information Saving Screen
1
Figure 6-40 Model Information Saving Screen 1
a
b
NOTE: The Model Name of the “iPRO-RC”
(Figure 6-40 a), and the Serial No.
“0000000000” shown in Figure 6-40b are
default settings for use in this “Saving the
Model Information
” example.
Figure 6-41 Model Information Saving Screen
2
Figure 6-41 Model Information Saving Screen 2
a
b
c
