JCM iPRO-100-SH2-RC User Manual

P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
1-1
iPRO-RC™ Series
Banknote Recycler
Section 1
Description
This section provides a general overview of the 
iPRO-RC™ Series Banknote Recycler (iPRO-100-
SH2-RC; iPRO-RC™) Unit Assembly pictured in
Figure 1-1. This first section is designed to help
you navigate through this guide with ease, and 
provides the following information:
• iPRO-RC™ Unit Assembly
• Model Descriptions
• Precautions
• Primary Features
• Component Names
• Specifications
• Unit Dimensions
• Technical Contact Information.
In order to make operation of this device easier and
make navigation within this manual simpler, the
following illustrations were used within the text:
• Safety Instructions, which need to be
observed in order to protect the operators and
equipment, have been written in Bold text and
have been given the following pictographs:
• Special Notes, which affect the use of the
Banknote Recycler have been written in italic
text and have been given the pictograph:
• Steps, requiring the operator to perform
specific actions are given sequential numbers
(1., 2., 3., etc).
1 GENERAL INFORMATION

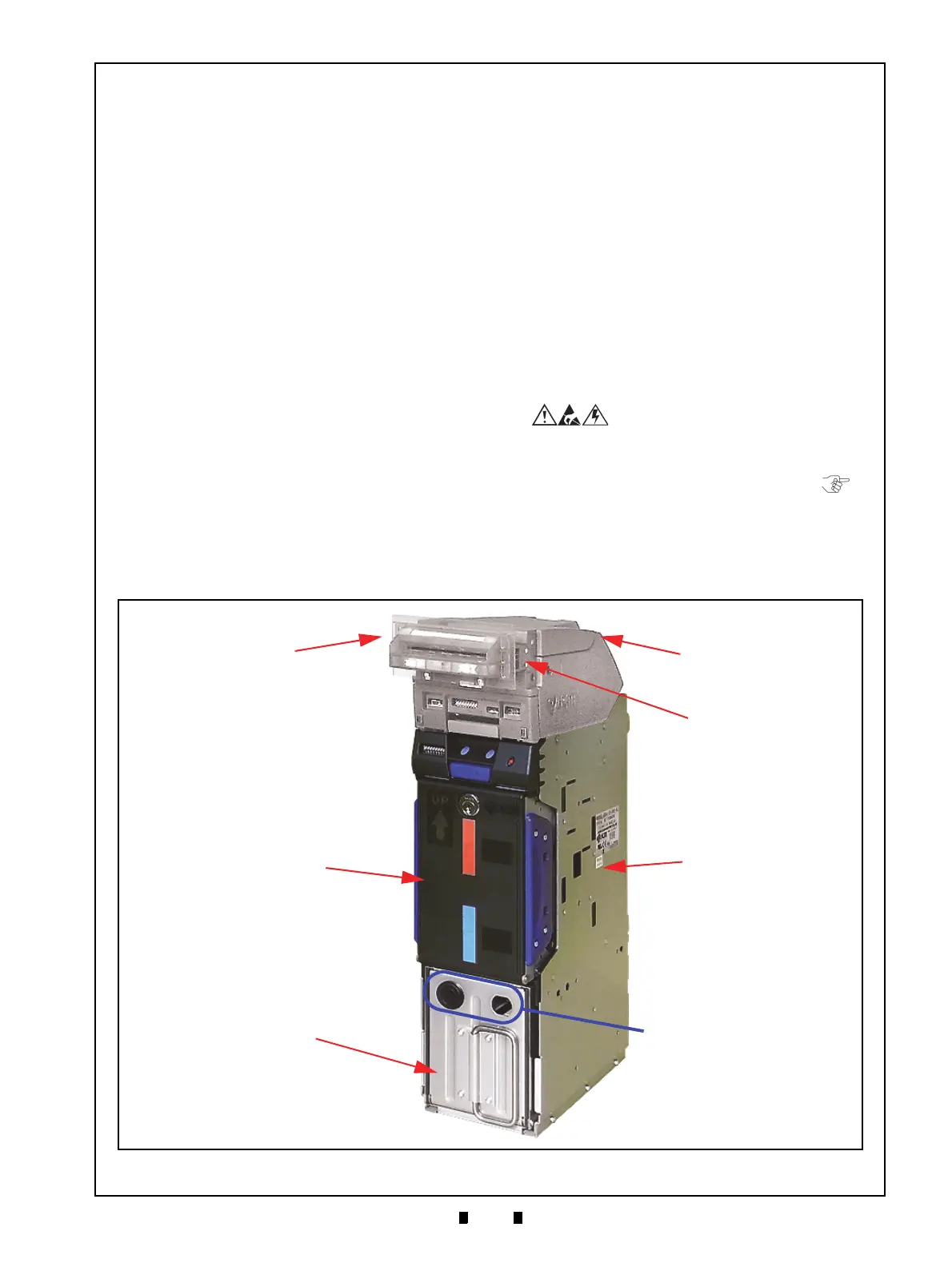

Figure 1-1 iPRO-RC Unit Assembly
iPRO-RC Unit Assembly
Figure 1-1 iPRO-RC Unit Assembly
O PTIONAL B EZEL
A SSEMBLY
I
PRO V ALIDATION
A SSEMBLY
I
PRO-RC
F RAME U NIT
I
PRO-RC R ECYCLER
A SSEMBLY
I
PRO-RC C ASH B OX
A
SSEMBLY
(N OT I NCLUDED )
NOTE: Cash Box Locks are
Provided Selection
an Optional User
(N OT I NCLUDED )
B EZEL S PACER
(B EHIND B EZEL )

JCM iPRO-100-SH2-RC Specifications

General

Brand	JCM
Model	iPRO-100-SH2-RC
Category	Bank Note Validator
Language	English
