P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
7-44
Section 7 iPRO-RC™ Series Banknote Recycler Exploded Views and Parts Lists

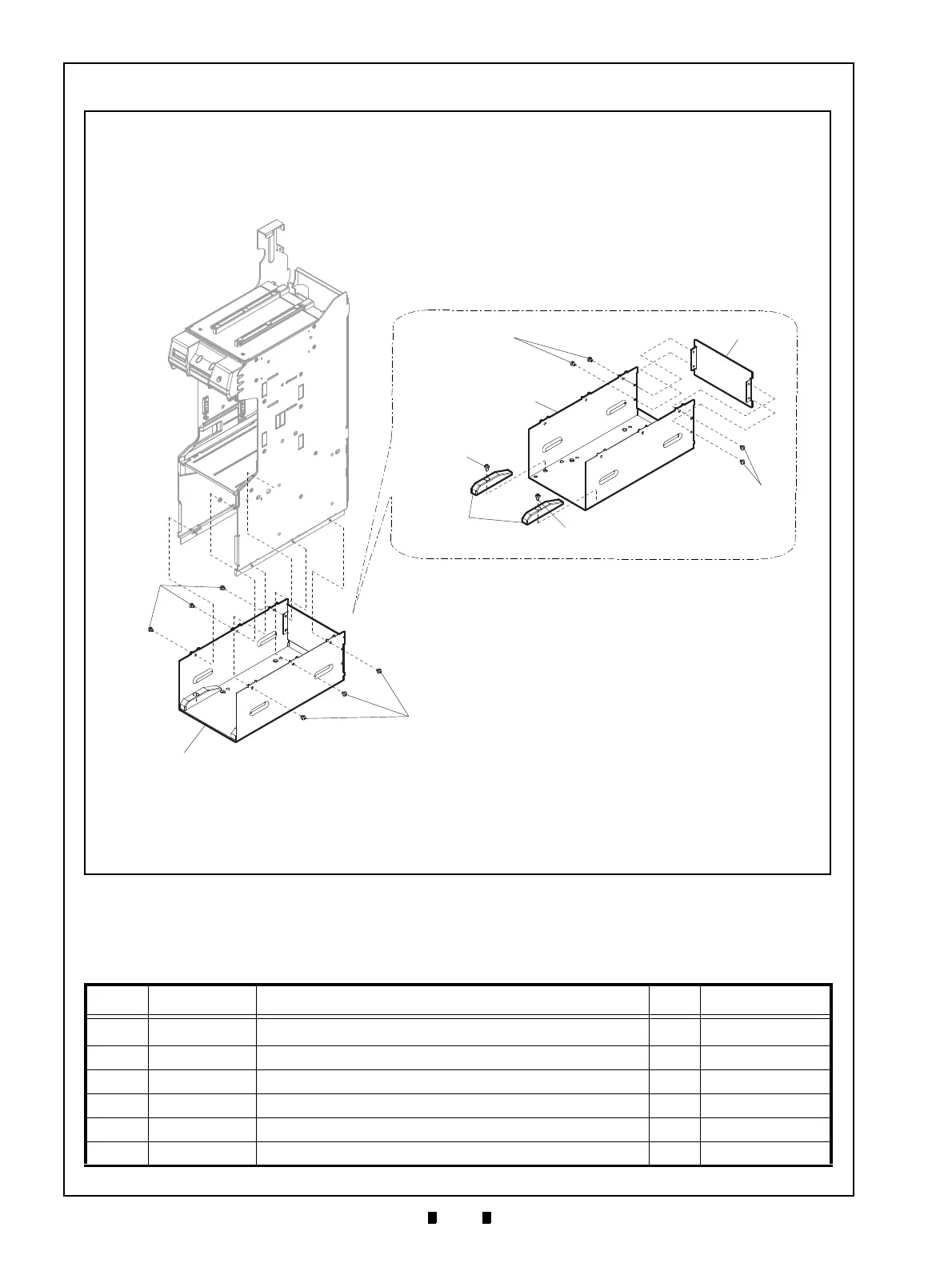

iPRO-RC Large Cash Box Frame Unit Exploded View
iPRO-RC Large Cash Box Frame Unit Parts List
Table 7-23 iPRO-RC Large Cash Box Frame Unit Parts List
Ref No. EDP No. Description Qty Remark
2200 204990 Base Frame for the Large Cash Box 1
2201 204988 Base Guide for the Large Cash Box 2
220
2 204985 Rear Frame for the Large Cash Box 1
220
3 206443 Large Cash Box Frame Assy. 1
220
4 003609 M3x6 W Washer (Small) 2
220
5 006036 M3x4 Washer 10
Figure 7-23 iPRO-RC Large Cash Box Frame
Unit Exploded View
2205
2200
2201
2202
2204
2204
2203
2205
2205
2205
Figure 7-23 iPRO-RC Large Cash Box Frame Unit Exploded View
