JCM iPRO-100-SH2-RC - Optional Lock Unit Exploded View; Figure 7-24 Optional Lock Unit Exploded View

P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
7-45
Exploded Views and Parts Lists iPRO-RC™ Series Banknote Recycler Section 7
Optional Lock Unit Exploded View

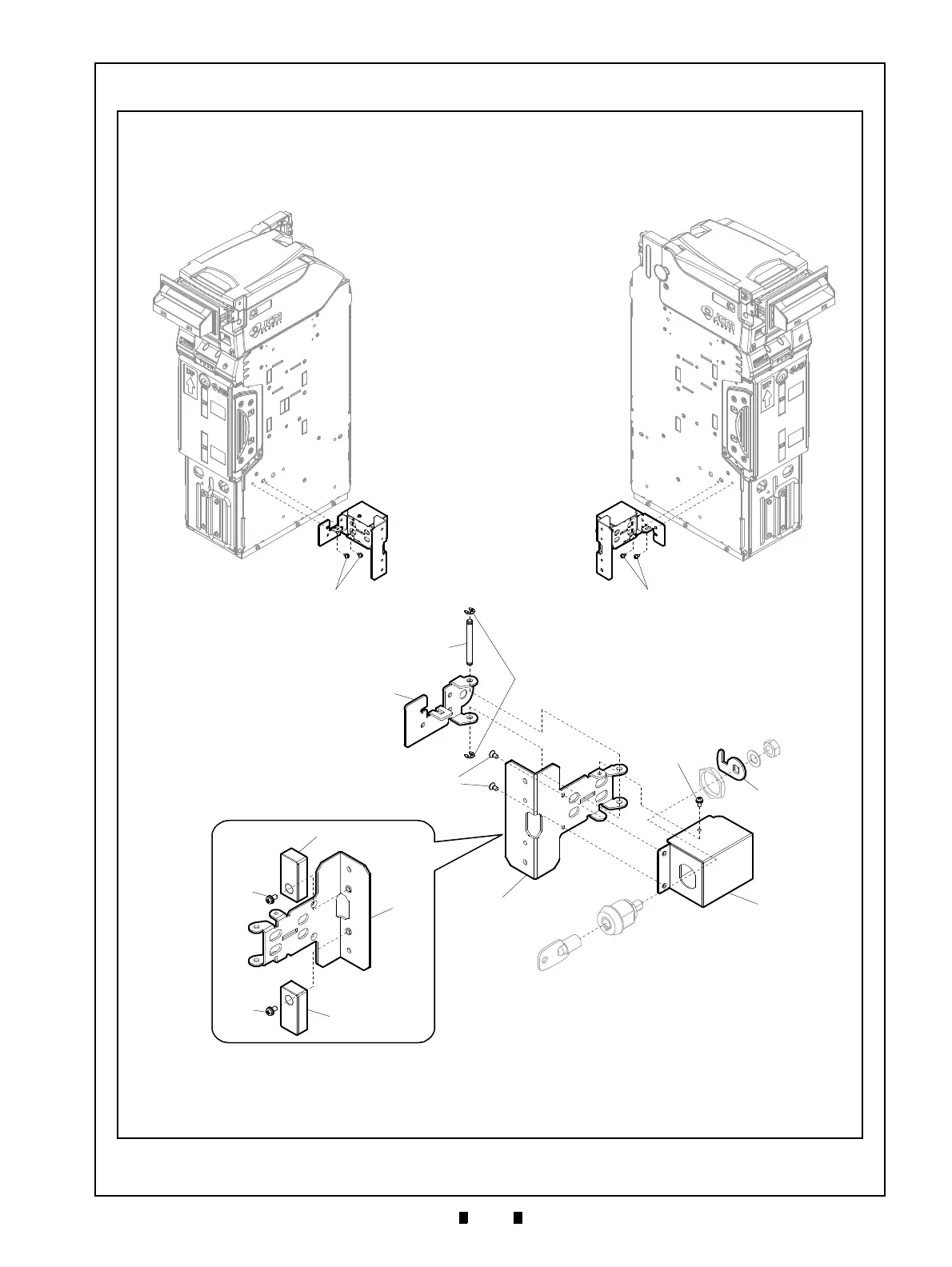

Figure 7-24 Optional Lock Unit Exploded View
OP1
OP2
OP3
OP3
OP3
OP7
OP7
OP9
OP8
OP4
OP11
OP11
OP10
OP6
OP5
OP2
Figure 7-24 Optional Lock Unit Exploded View
