P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
Troubleshooting iPRO-RC™ Series Banknote Recycler Appendix A
Width Guide Replacement
To replace the Width Guide in the Recycler Unit,
proceed as follows:
1. Remove the four (4) Mounting Screws from the
right and left rear sides of the Recycler Unit (Fig-
ure A-4 a
1
to a
4
).
2. Lift the RC Race upward and remove it up and off
the Recycler Unit (Figure A-4 b).
3. Slide each Width Guide in the direction
indicated
by the small Arrows (Figure A-5 a
1
, a
2
& b
1
, b
2
),
then remove it off of the Recycler Unit.
4. Install the desired Width Guide by reversing the
procedure i
n Steps 1 through 3 above.
5. Reassemble the RC Race (Figure A-6 a) onto the
Recycler Unit.
6. Install the four (4) Mounting Screws (Figure A-6
c) previo
usly removed into both sides of the
Recycler Unit.
This completes the iPRO-RC™ Troubleshooting
Section.
NOTE: When installing a Width
Guide, fit the Width Guide into the
Recycler Unit indentations, as shown
in Figure A-5c.
NOTE: A Width Guide may not be
necessary, depending on the
denomination value desired. Refer to
the specific “Software Information
Sheet” to confirm the Width Guide
selection required for your Country’s
Currency.

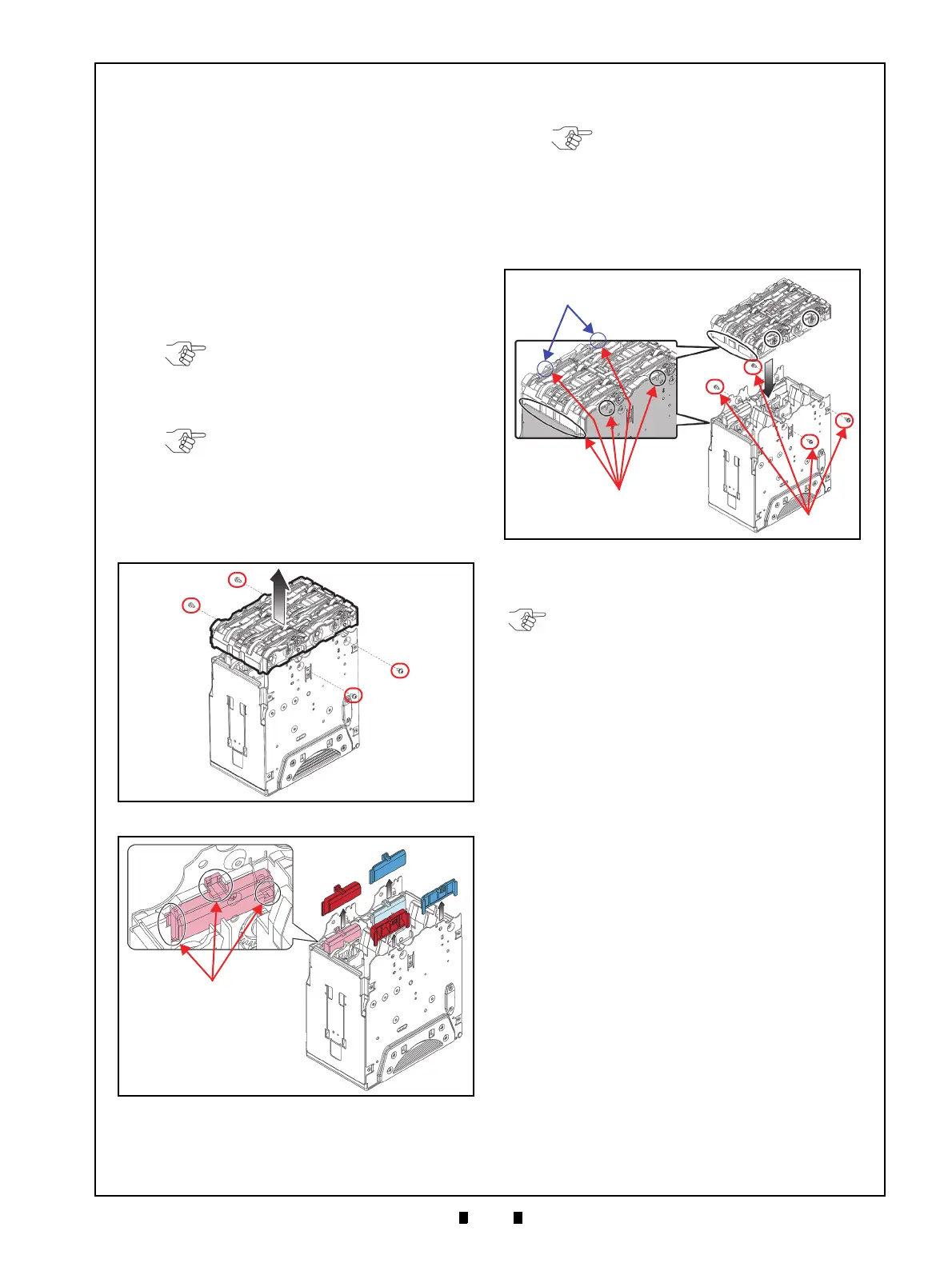

Figure A-4 New Width Guide Installation 2
Figure A-4 New Width Guide Installation 2
Figure A-5 New Width Guide Installation 3
Figure A-5 New Width Guide Installation 3
NOTE: Ensure that no space exists
where the RC Race curved area
meets the Recycler Unit’s
indentations indicated by the circled
area in Figure A-6b.
Figure A-6 New Width Guide Installation 4
Figure A-6 New Width Guide Installation 4
NOTE: Refer to each country’s “Software
Information Sheet” when selecting the Banknote
Guides for the iPRO-RC.
