P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
Section 2 iPRO-RC™ Series Banknote Recycler Installation
Operational Flowchart
Figure 2-16 depicts a typical iPRO-RC™ Primary Sequence flow process.

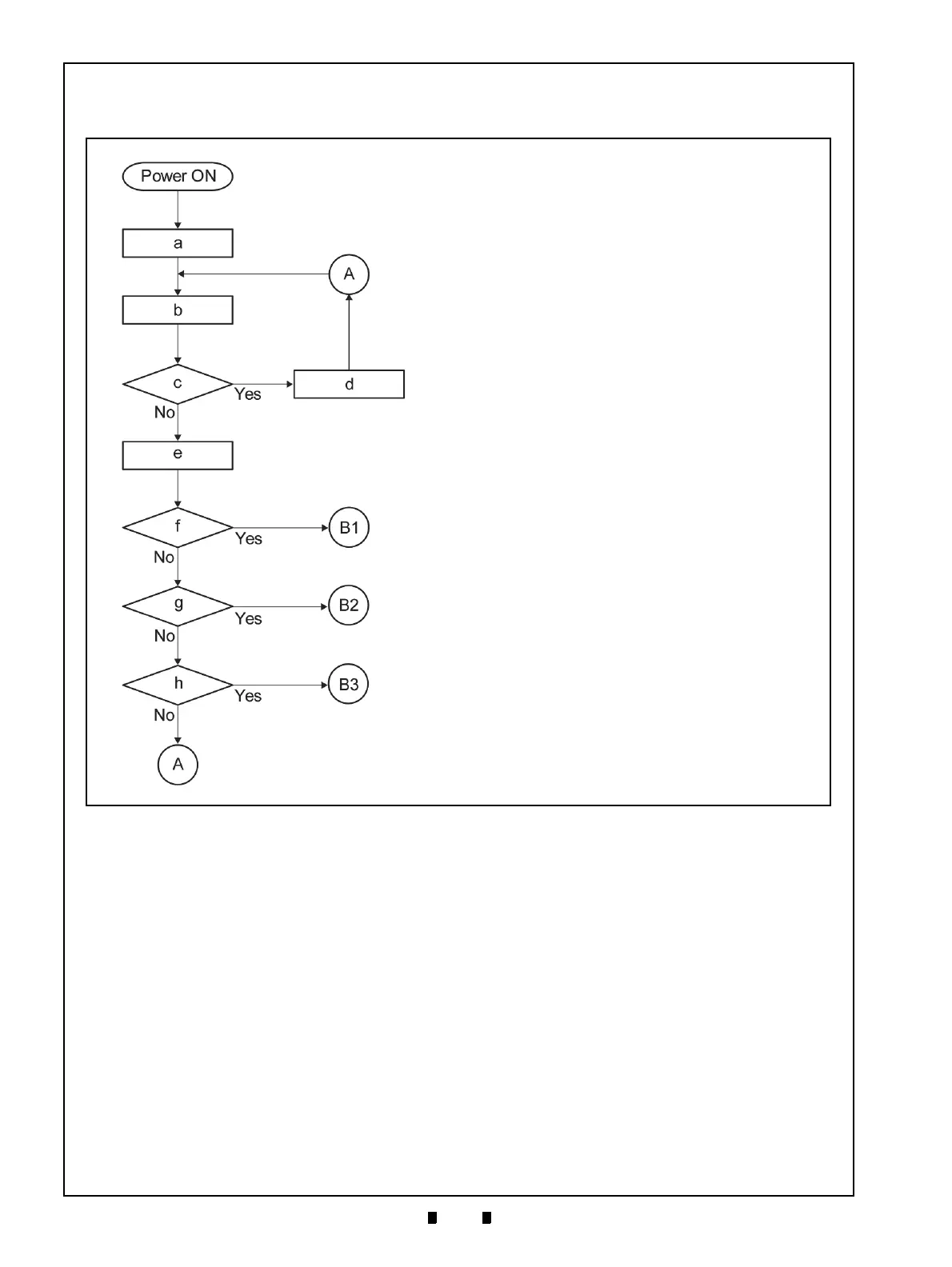

Figure 2-16 iPRO-RC Operational Flowchart
(Primary Sequence)
Figure 2-16 iPRO-RC Operational Flowchart (Primary Sequence)
a) Initializing
b) Stand-by
c) Is Acceptance inhibited?
e) External LED lights
f) Is a Banknote inserted?
B1) To Figure 2-17 “Validation” Flow on page2-19 of
this Service Manual
g) Is Banknote dispensing required?
A) Return from “h” or “d” in this Flow
Apply Power to the Unit.
d) External LED extinguished
B2) To Figure 2-20 “Dispensing” Flow on page2-22
of this Service Manual
h) Is Banknote collection required?
B3) To Figure 2-22 “Retrieving” Flow on page2-24
of this Service Manual
A) Return to “A” in this Flow
To Next Page
