P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
7-11
Exploded Views and Parts Lists iPRO-RC™ Series Banknote Recycler Section 7

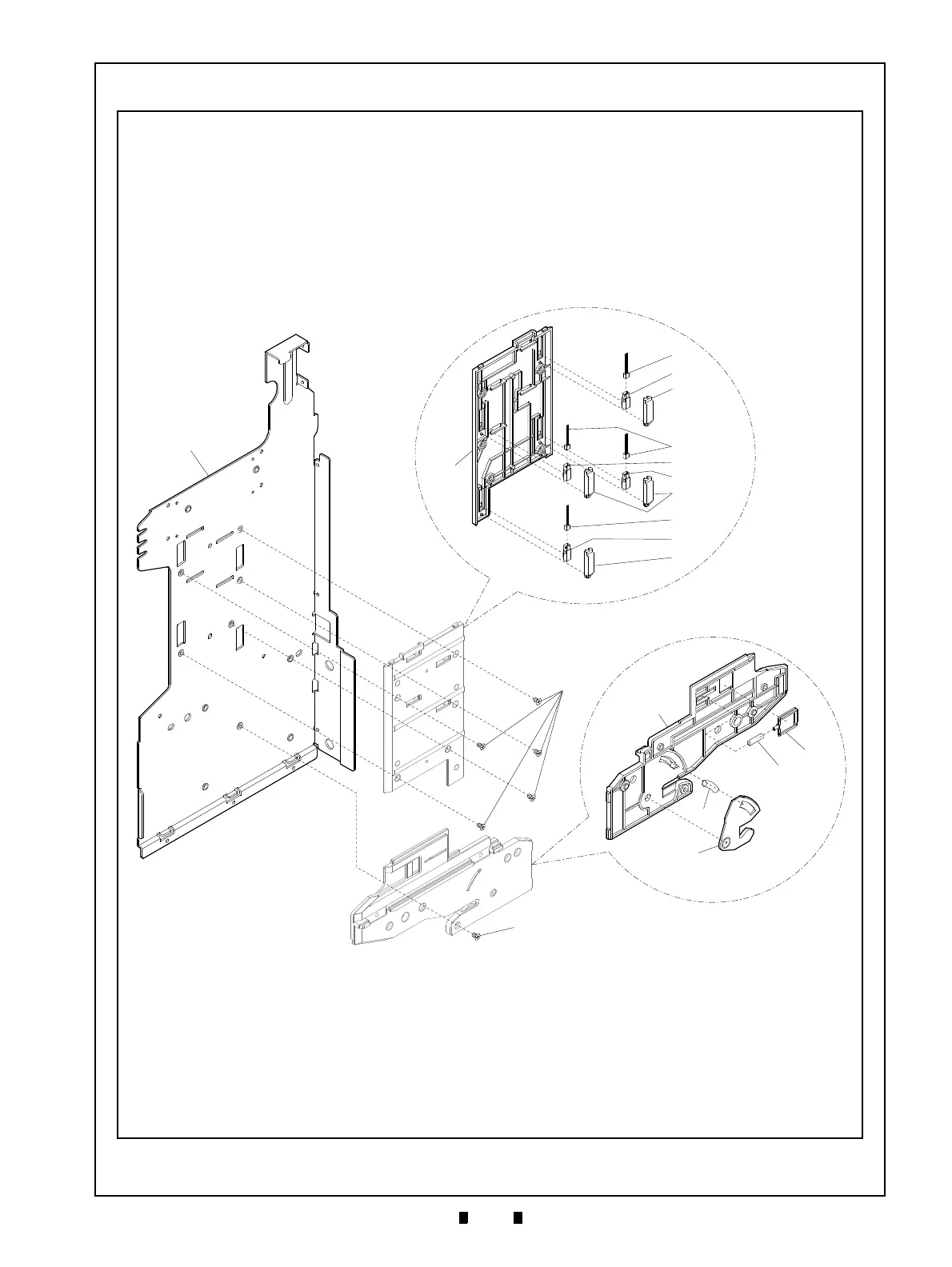

iPRO-RC Frame Unit 5 Exploded View
Figure 7-6 iPRO-RC Frame Unit 5 Exploded
View
214
510
511
501
509
508
500
502
505
506
503
504
512
512
507
501
501
214
214
Figure 7-6 iPRO-RC Frame Unit 5 Exploded View
