Performance Tests iPRO-RC™ Series Banknote Recycler Section 6
15. Remove the KS-087 Reference Paper from the
Validator Head.
16. Confirm that the message “
Double Note Detection
Sensor Validation Success.
” (Figure 6-32 a)
appears in the upper Text Field area of the Screen.
This message notifies the User that Double Note
Detection Sensor Calibration procedure is com-
plete.
17. Prepare to start the RC Full
Sensor Calibration
Procedure by following the Instructional Message
stated in the Figure 6-32b T
ext Field.
Ensure that no KS-087 Reference Paper, or any
Banknotes or Tickets are present within the Recy-
cler Unit; and then click on the “
Start”
Screen Button (Figure 6-32 c)
to begin the RC
Full Sensor Calibration Procedure.
18. Confirm that the Test’s progress appears on the
“
iPRO-RC Maintenance Tool” Screen by view-
ing the Figure 6-33a Green Progress Bar.
.
19. Confirm that the message “RC Full Sensor Cali-
bration Success
” appears (Figure 6-34 a). The RC
Full Sensor Calibration is complete.
20. Click on the “
Start” Screen Button (Fig-
ure 6-34 b) and fo
llow the Instructional Message
stated in the Figure 6-34c
Text Field to begin the
Transport Sensor Check.
21. Confirm that the Test’s progress appears on the
“
iPRO-RC Maintenance Tool” Screen by view-
ing the Figure 6-35a Green Progress
Bar.
22. Confirm that the message “
Transport Sensor
Check Success.
” (Figure 6-36 a) appears. The
Transport Sensor Check is complete when this
message appears.
23. Click on the “
Start” Screen
Button (Figure 6-36 b) and fo
llow the Instruc-
tional Message stated in the Figure 6-36c Text
Field to begin the RC Spaces Transport Motor
Te
st.

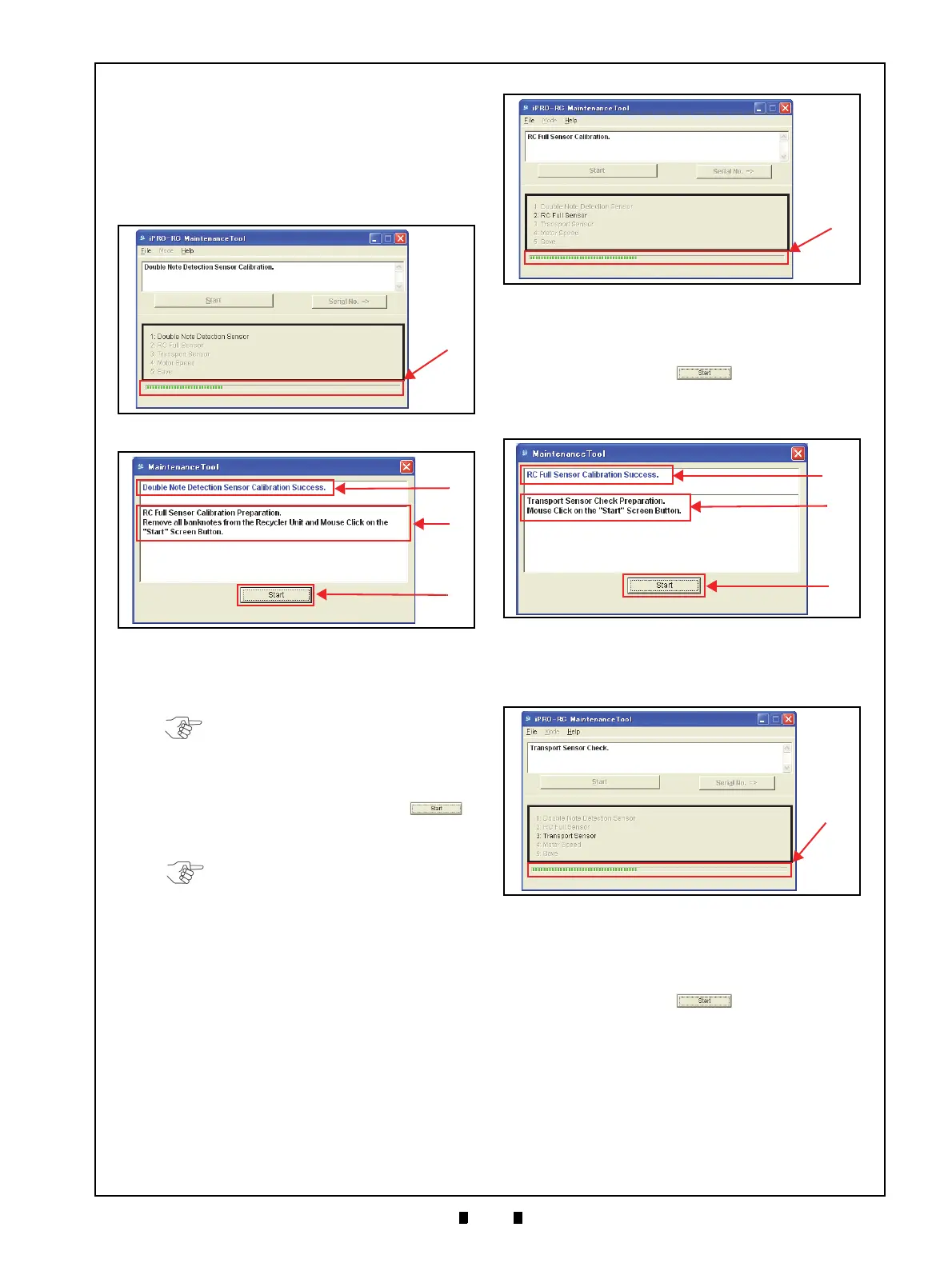

Figure 6-31 iPRO-RC Maintenance Tool
Screen 3
Figure 6-31 iPRO-RC Maintenance Tool Screen 3
Figure 6-32 iPRO-RC Maintenance Tool
Screen 4
Figure 6-32 iPRO-RC Maintenance Tool Screen 4
NOTE: The RC End Sensor Calibration
Procedure is performed during the RC Full
Sensor Calibration Procedure.
NOTE: Once the RC Full Sensor
Calibration Procedure has begun, the
Lifter within the Recycler Unit will move
upward, and then return to its Home
position when the Calibration Procedure
is complete.
Figure 6-33 iPRO-RC Maintenance Tool
Screen 5
Figure 6-33 iPRO-RC Maintenance Tool Screen 5
Figure 6-34 iPRO-RC Maintenance Tool
Screen 6
Figure 6-34 iPRO-RC Maintenance Tool Screen 6
Figure 6-35 iPRO-RC Maintenance Tool
Screen 7
Figure 6-35 iPRO-RC Maintenance Tool Screen 7
