P/N 960-000164R_Rev. 3 {EDP #213631} © 2018, JAPAN CASH MACHINE CO., LTD.
2-13
Installation iPRO-RC™ Series Banknote Recycler Section 2
Standard Interface Circuit Schematics

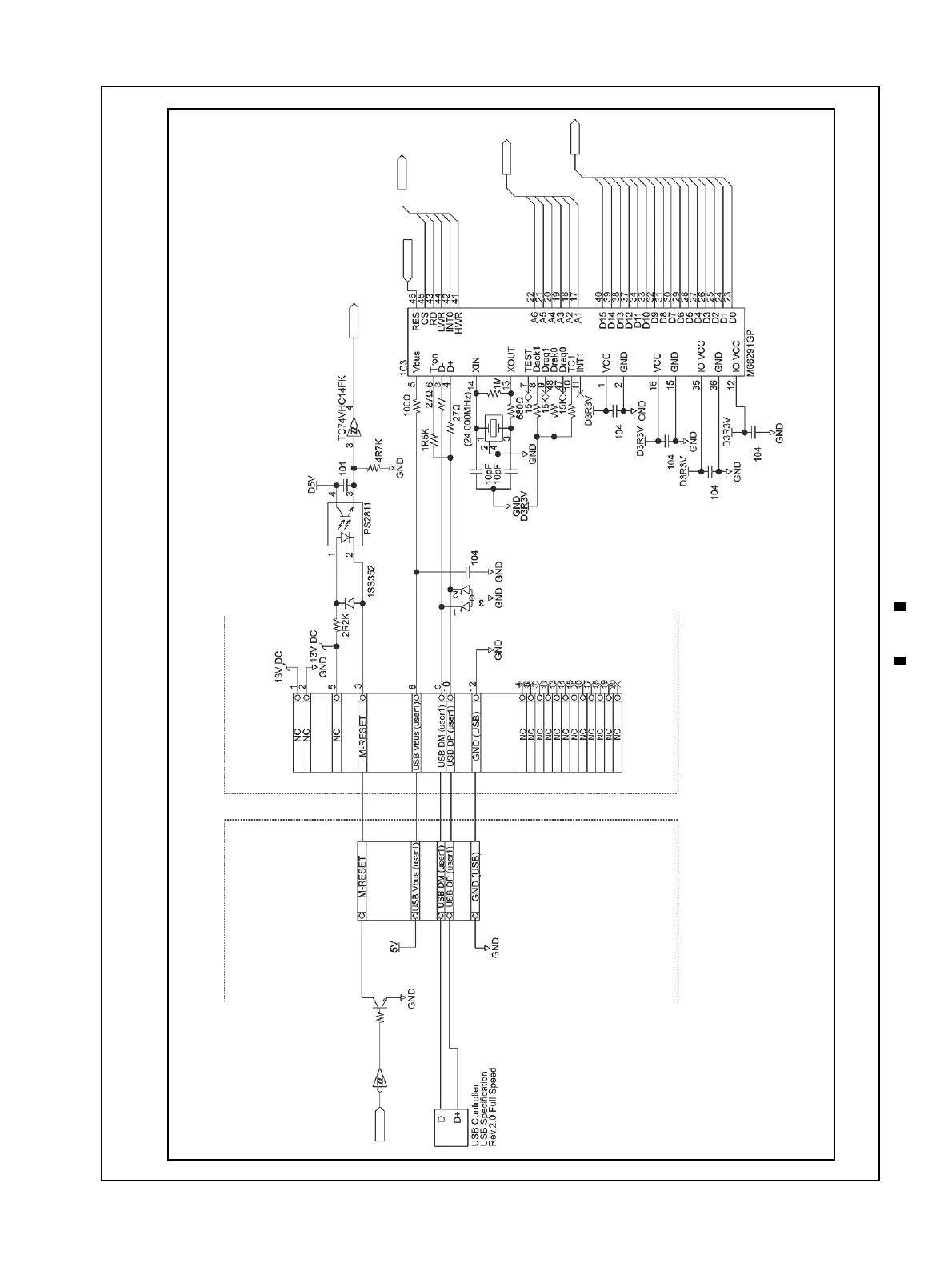

Figure 2-11 illustrates the iPRO-RC™ USB Interface Schematic Diagram.
Figure 2-11 iPRO-RC USB Interface Sche-
matic Diagram
Figure 2-11 iPRO-RC USB Interface Schematic Diagram
Controller Side
Validator Side
