Micro equalizer

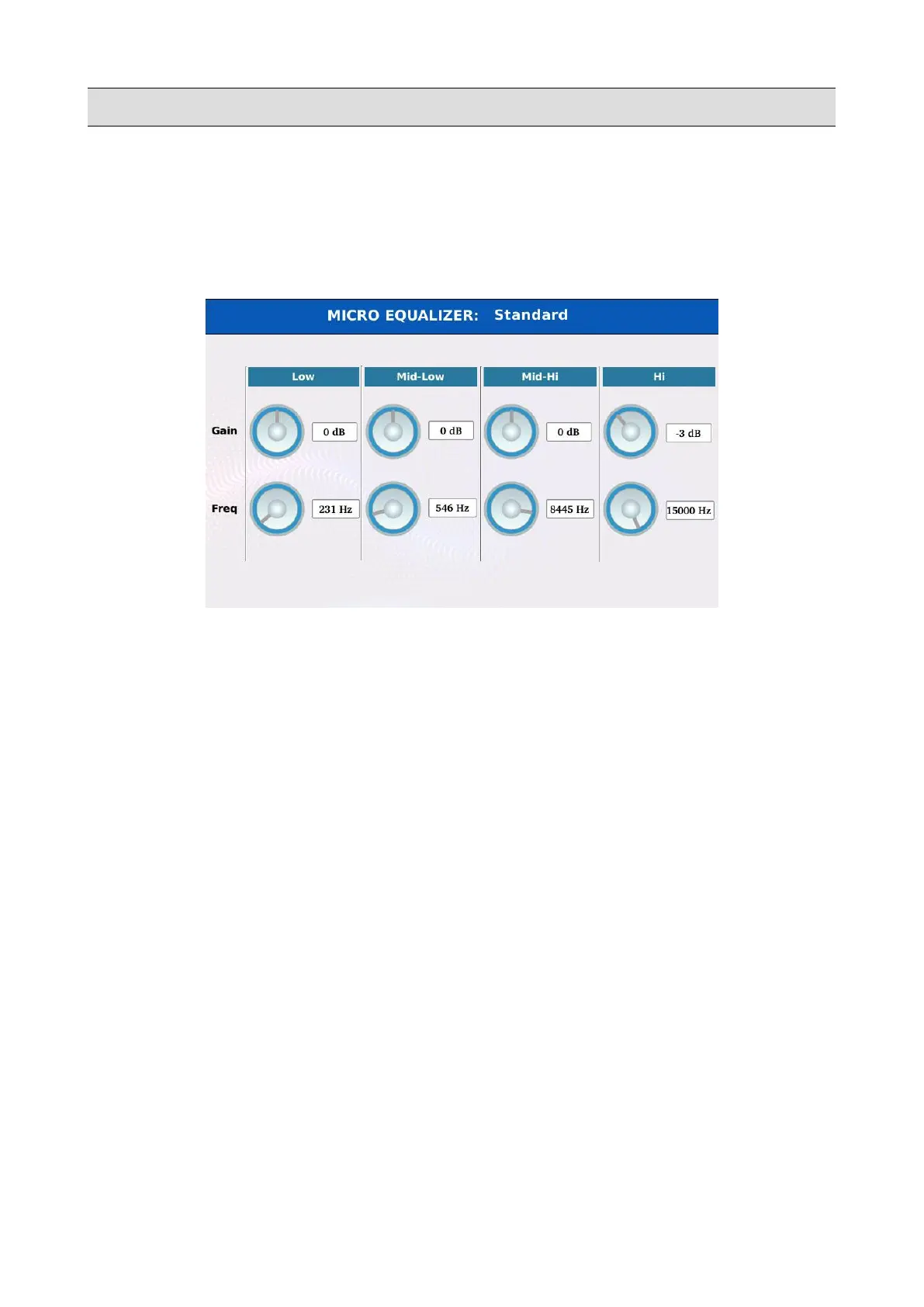

Tap on the VIEW button on the MICRO EDIT page to display the microphone equalizer page. The
signal is processed by two shelving filter, one for the low frequencies (LOW) and one for the high
frequencies (HIGH) and by two peak filters, one for the mid-low frequencies (MID-LOW) and one
for the mid-high frequencies (MID-HIGH).
• Tap on the GAIN virtual knob and use the Value Dial to cut or boost below or above the
central frequency. The range is -12 to +12 dB.
• Tap on the FREQ virtual knob and use the Value Dial to set the central frequency. The
ranges of the different bands are 80 to 2000 Hz (LOW), 60 to 3000 Hz (MID-LOW), 60 to
10300 Hz (MID-HIGH) and 500 to 15000 Hz (HIGH).
• Press SAVE to store the changes into a user preset.
148 - KETRON - LOUNGE
