376 N9030B PXA Signal Analyzer Service Guide
Service and Diagnostics Menus
Service Key Descriptions
Show Software
The Show Software screen displays revision information for Keysight
internal software that comprises the embedded application and
programmable hardware devices (FPGAs and PLDs).

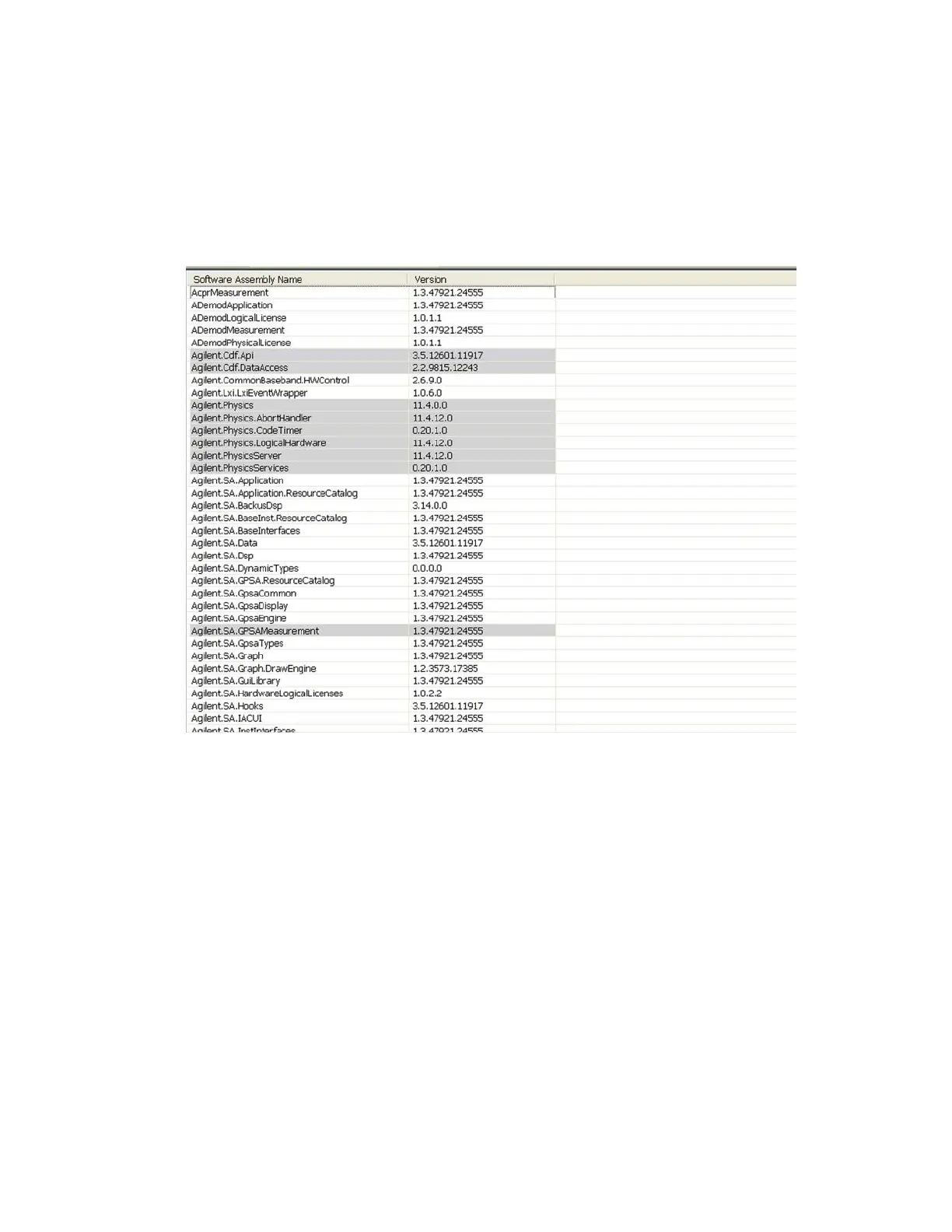

Figure 14-3 Example Screen
The software name is left justified, with the revision information right
justified. This is a multi-page list with Next Page and Previous Page
menu key control in accordance with other text screens (Show
Systems, Show Errors, etc.).
Show Hard ware Screen
Press System, Show, Hard ware
To Next Page
