590 N9030B PXA Signal Analyzer Service Guide
Functional Tests
Frequency Response (Flatness)

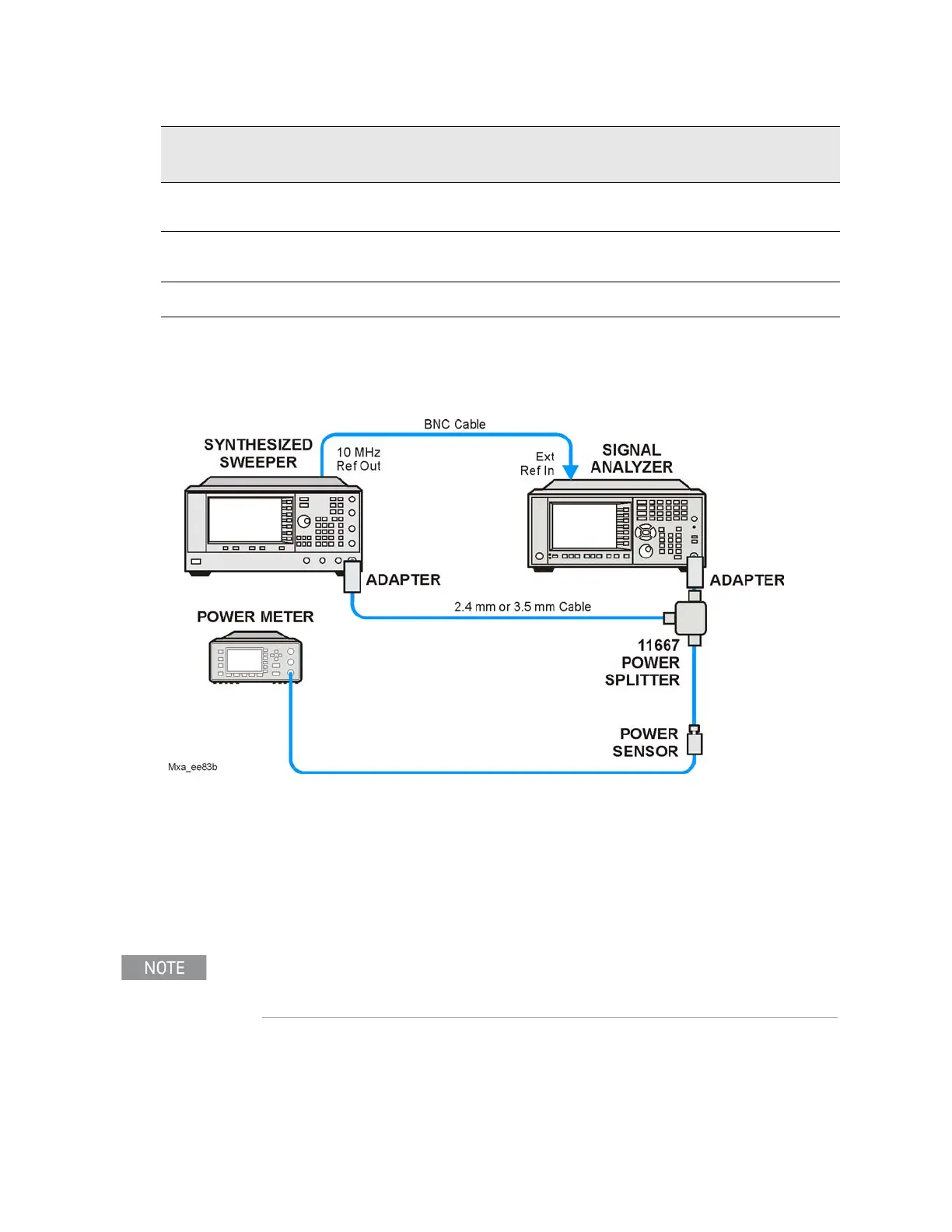

Figure 18-5 Frequency Response Test Setup
Procedure
1. Zero and calibrate the power meter and power sensor as described in the
power meter operation manual.
2. Configure the equipment as shown in Figure 18-5.
3. Assure the signal analyzer’s built-in auto alignment has been performed
within the last 24 hours.
Power Splitter
(Opt 503, 508, 513, 526)
Frequency Range: 50 MHz to 26.5 GHz
Tracking between ports: < 0.25 dB
11667B
Power Splitter
(Opt 544, 550)
Frequency Range: 50 MHz to 50 GHz
Tracking between ports: < 0.40 dB
11667C
Synthesized Sweeper
Frequency Range: 50 MHz to 50 GHz
a
PSG
a. Maximum frequency of the sweeper must be greater than or equal to maximum specified fre-
quency of the PXA.
Item
Critical Specifications
(for this test)
Recommended
Keysight Model
Connect the power splitter to the signal analyzer input using the
appropriate adapter. Do not use a cable. An adapter will only be necessary
if the PXA input connector is Type-N.
To Next Page
