N9030B PXA Signal Analyzer Service Guide 415
Replaceable Parts
Hardware

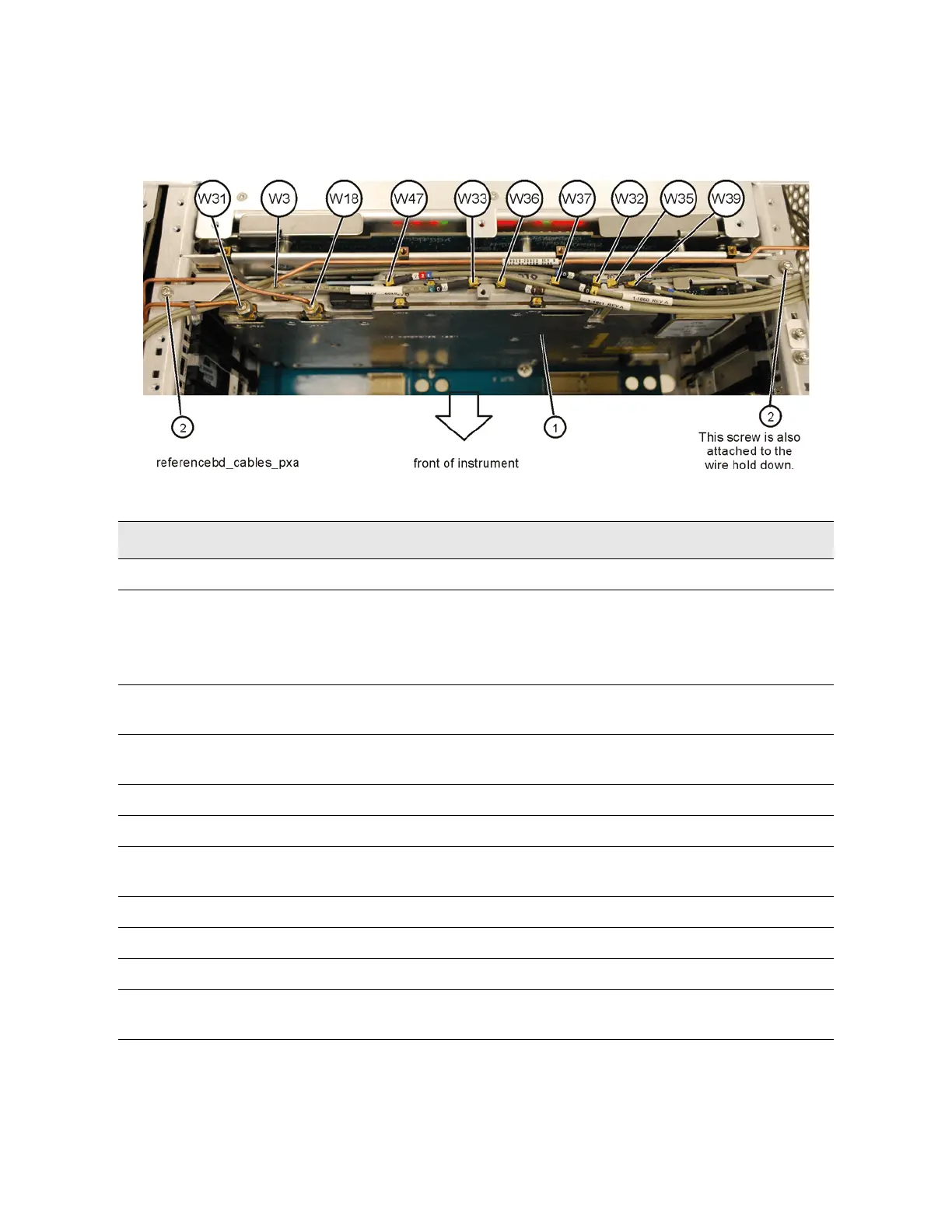

Figure 15-15 Reference Assembly Cables (Option EP1)
Table 15-17 Reference Assembly Cables (Option EP1)
Item Description Keysight Part Number
1 A16 Reference Assembly , Standard (Option EP1) N9020-60188
W3 Cable, semi-rigid, Cal In to attenuator, Reference Assy J701 to
Attenuator A (Options 503, 508, 513, 526)
Cable, semi-rigid, Cal In to attenuator, Reference Assy J701 to
Attenuator A (Options 544, 550)
N9020-20023
N9020-20072
W18 Cable, semi-rigid, 2nd LO In, Reference Assy J702 to Front End Assy
J1
N9020-20022
W31 Cable, semi-rigid, 4.8GHz 2nd LO. Reference Assy, J703 to
Synthesizer Assy J4 (without EP0)
N9020-20021
W32 Cable, coax, 100 MHz, Reference Assy J706 to LO Synthesizer J10 8121-1401
W33 Cable, coax, 50 MHz Align, Front End Assy J6 to Reference Assy J705 8121-1940
W35 Cable Assembly, flexible coax, A19J101, BBIQ Main Board to A16J707
Reference Board (Option BBA)
8121-1401
W36 Cable, coax, 300 MHz, Reference Assy J711 to Analog IF J300 8121-1861
W37 Cable, coax, External Reference IN, rear panel to Reference Assy J704 8121-1860
W39 Cable, coax, 100 MHz ref B, Reference Assy J716 to Digital IF J14 8121-1401
W47 Cable, coax, Step Cal, A3 Digital IF J17 to Reference board J726
(Required if no Option B1X, B2X, B5X)
8121-1401
