N9030B PXA Signal Analyzer Service Guide 487
Assembly Replacement Procedures
RF Area (Options 544, 550)
Options MPB and LNP
Removal
1. Refer to Figure 16-53. Remove rigid cable W51 (N9020-20171) (1) from
top switch port 1 to Attenuator B output.

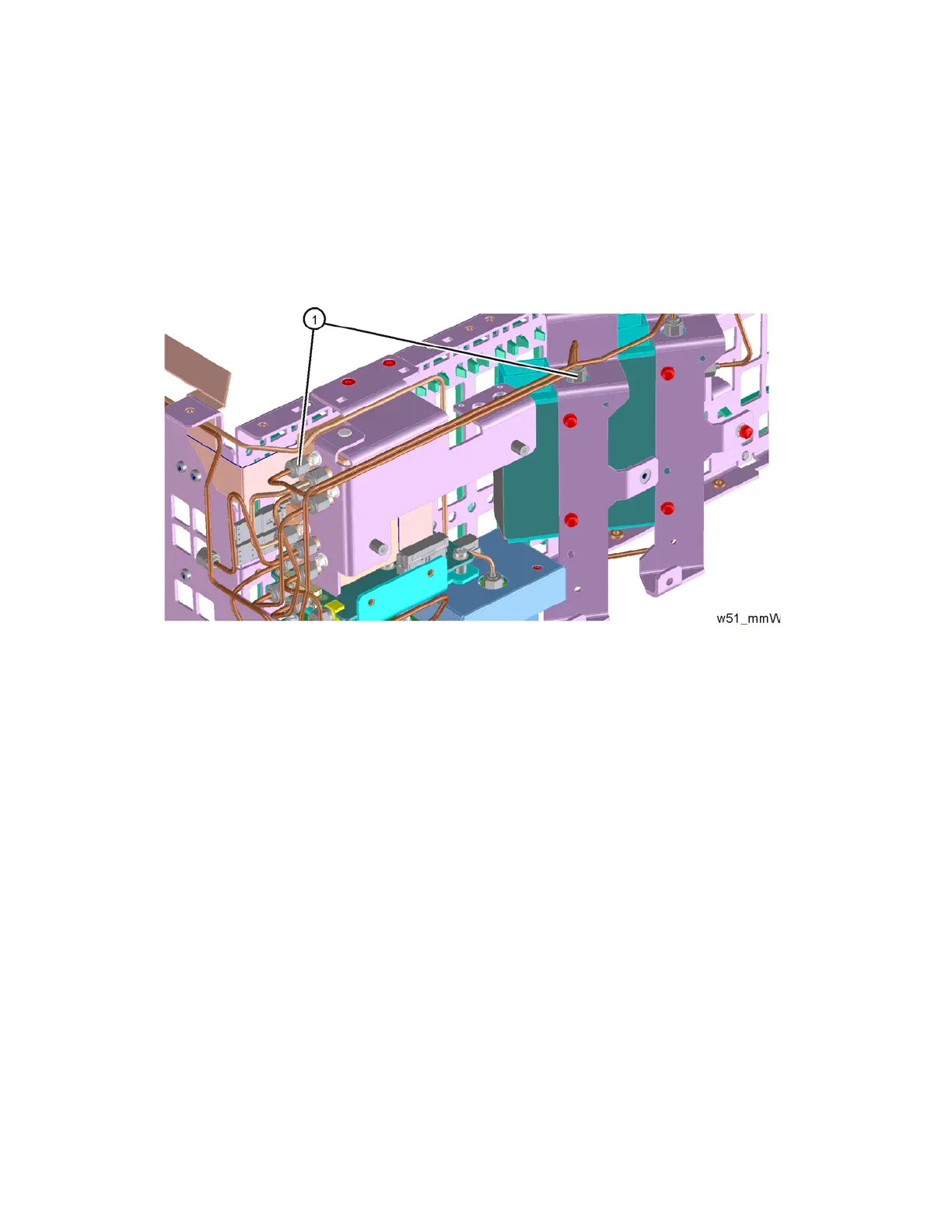

Figure 16-53 W51 Cable Removal
To Next Page
