Keysight Technologies N9030B User Manual

N9030B PXA Signal Analyzer Service Guide 505
Assembly Replacement Procedures
Option B1X
Option B1X
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the top brace. Refer to the Top Brace and Power Supply Bracket
removal procedure.
3. Refer to Figure 16-72. Locate the Wideband Analog IF and Wideband
Digital IF assemblies.

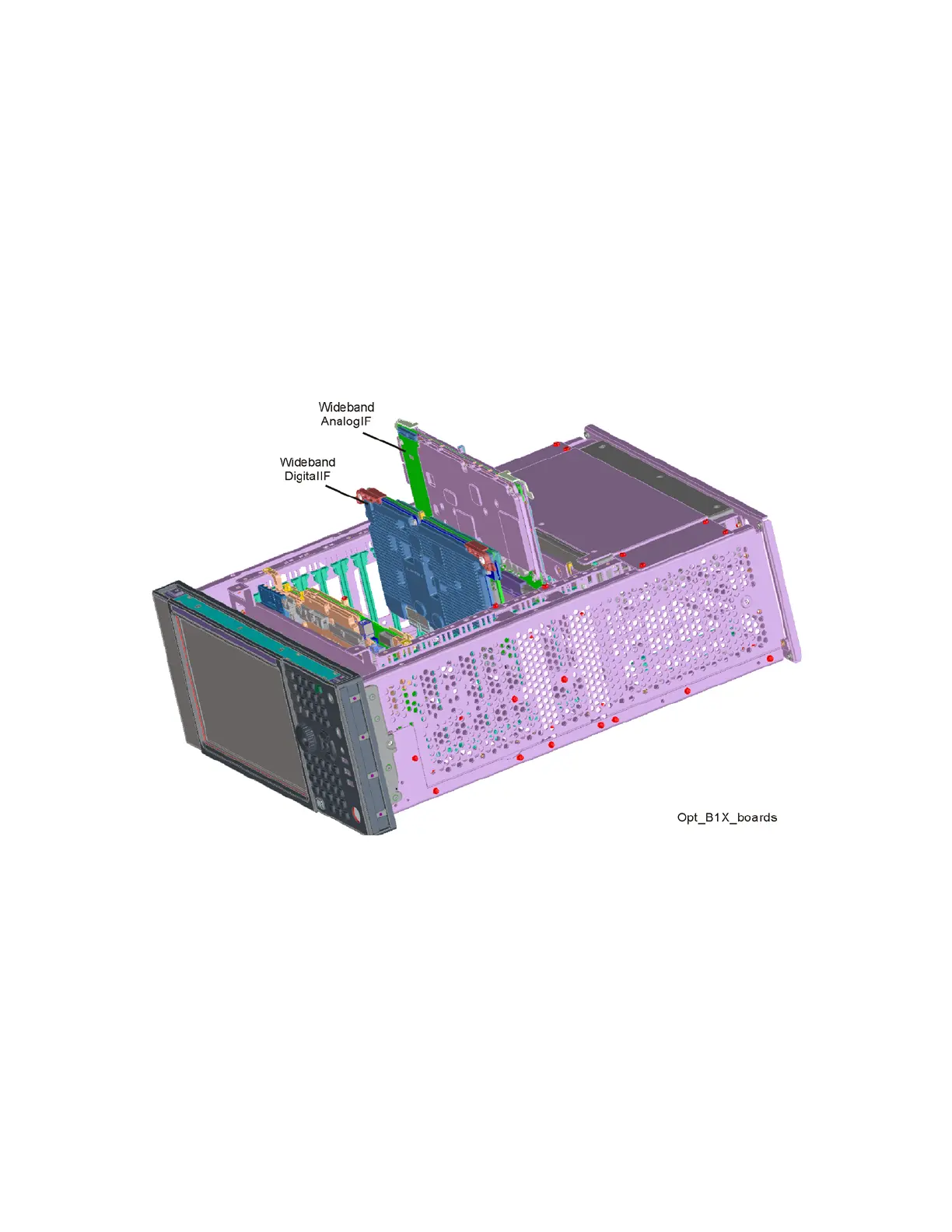

Figure 16-72 Assembly Locations
