N9030B PXA Signal Analyzer Service Guide 397
Replaceable Parts
Hardware
Hardware

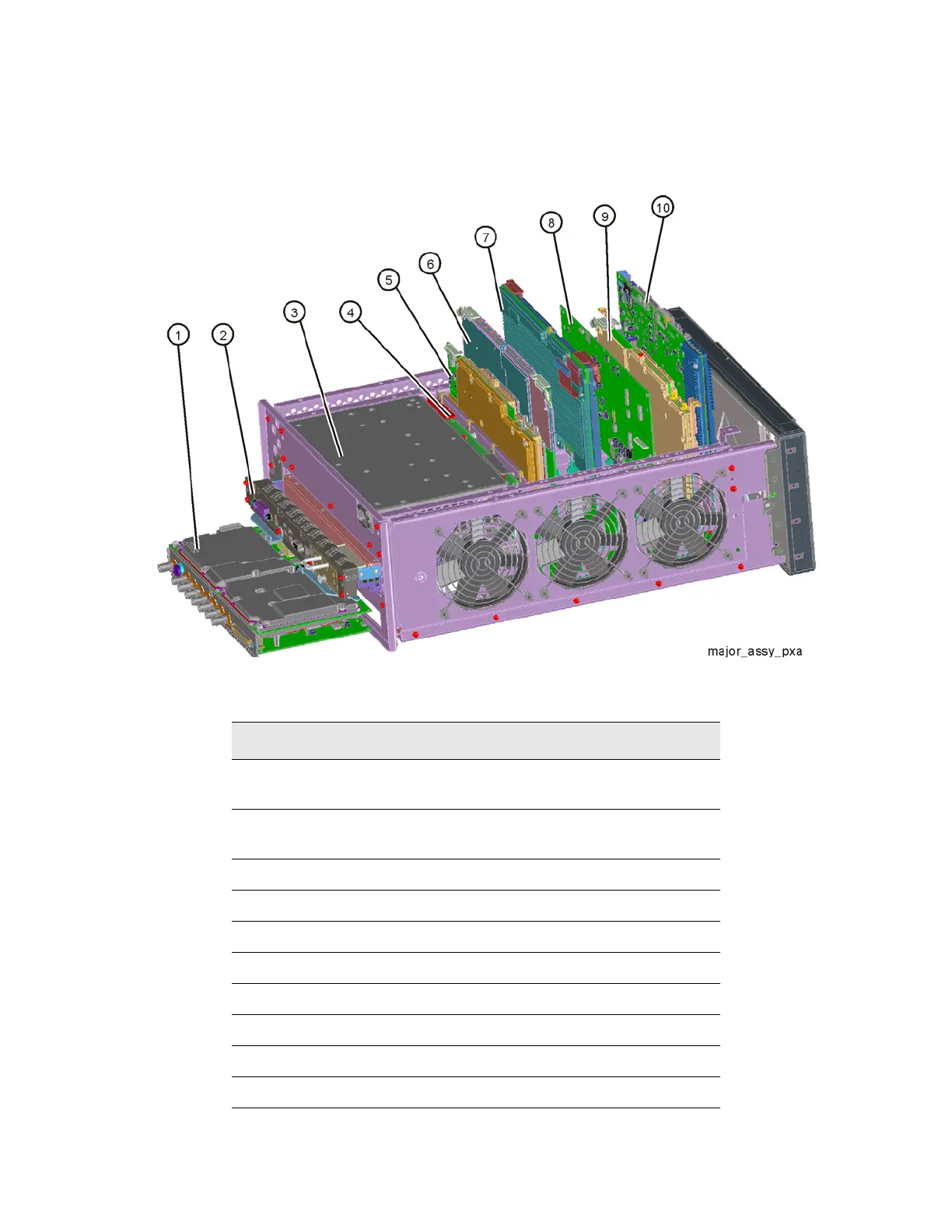

Figure 15-1 Major Assemblies
Table 15-3 Major Assemblies
Item Description
1 A2 Analog IF Assembly
A3 Digital IF Assembly
2 A4 CPU Board (without A5 drive or drive tray parts,
includes battery and SD memory card)
3 A6 Power Supply
4 A7 Midplane Assembly
5 A16 Reference Assembly , Standard (Option EP1)
6 A25 Wideband Analog IF (Option B1X)
7 A26 Wideband Digital IF (Option B1X or B2X)
8 A19 BBIQ Main Board (Option BBA)
9 A14 Synthesizer Assembly, Standard (Option EP1)
10 A15 Front End Controller
