N9030B PXA Signal Analyzer Service Guide 547
Assembly Replacement Procedures
Front Frame Assembly
Display Assembly
Removal
1. Refer to Figure 16-105. Remove the four screws (2) (0515-0372) and the
seven screws (3) (0515-1946). The display assembly (1) can now be
lifted out of the front frame. When replacing the display assembly in the
front frame, torque the screws to 9 inch-pounds.

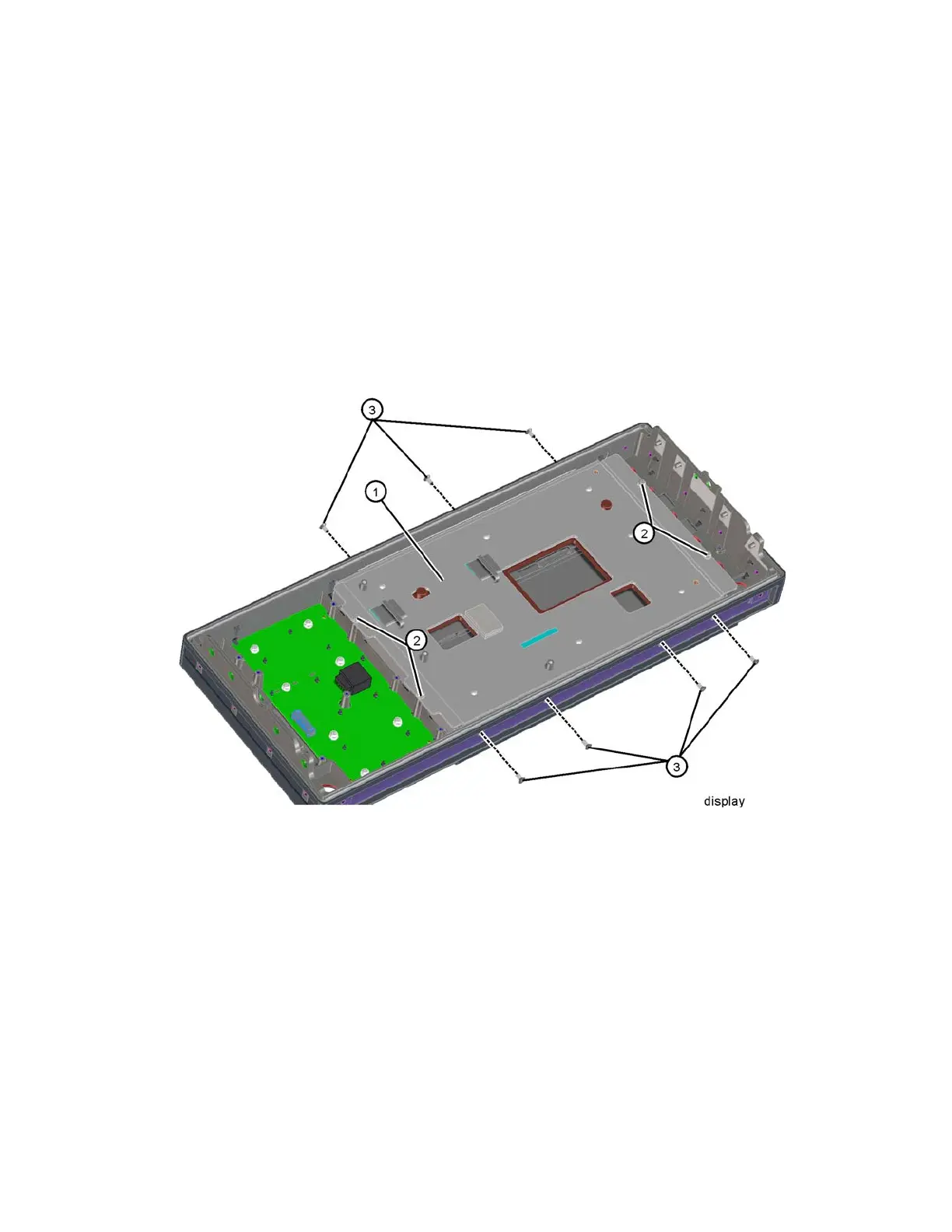

Figure 16-105 Display Removal
