500 N9030B PXA Signal Analyzer Service Guide
Assembly Replacement Procedures
LO Synthesizer Assembly
LO Synthesizer Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the instrument top brace. Refer to the Top Brace and Power
Supply Bracket removal procedure.
3. Refer to Figure 16-67. Locate the LO Synthesizer assembly (2).

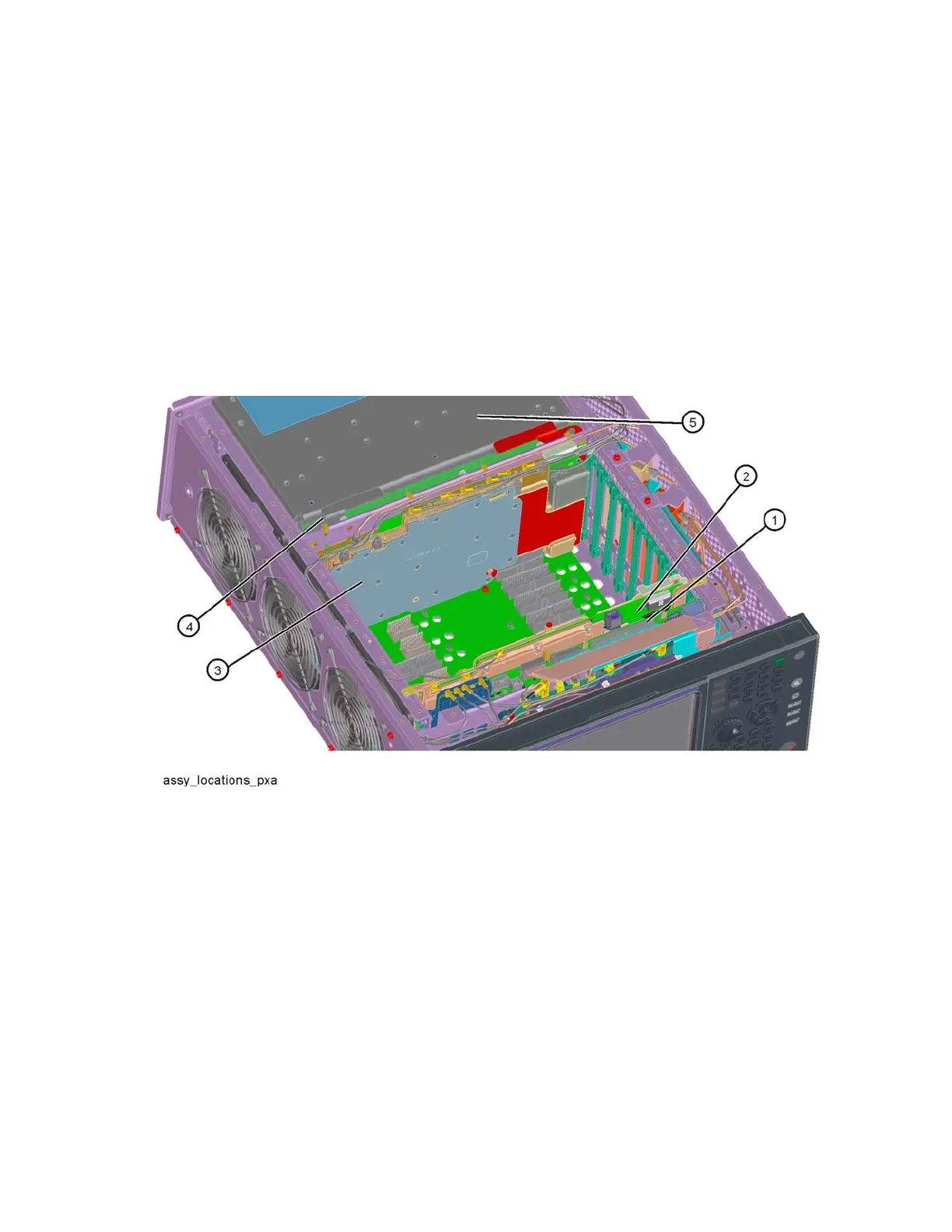

Figure 16-67 Assembly Locations
