N9030B PXA Signal Analyzer Service Guide 541
Assembly Replacement Procedures
Front Frame Assembly
Front Frame Assembly Components

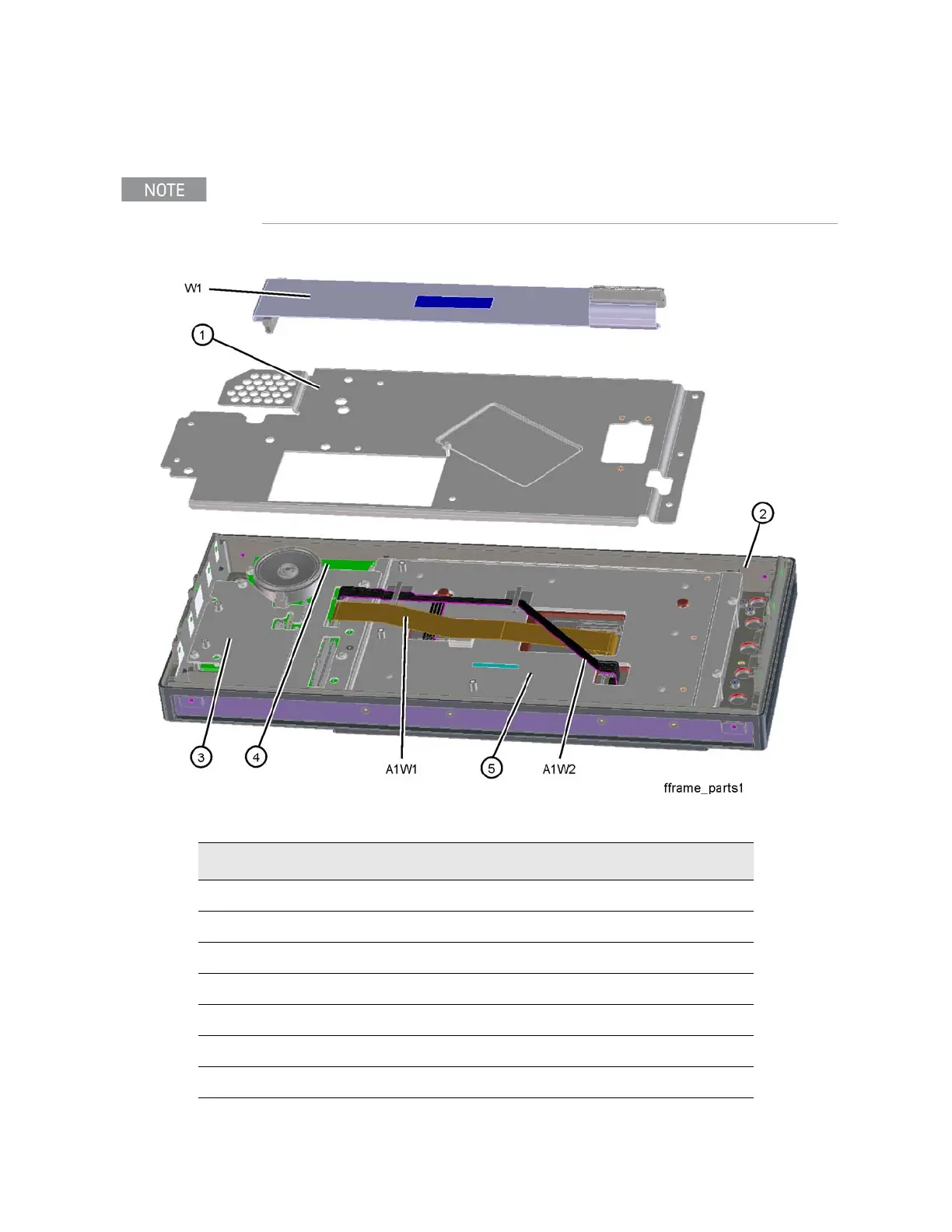

Figure 16-100 Front Frame Parts
Access to any of the Front Frame assemblies requires removal of the Front Frame Assembly from
the chassis.
Table 16-17 Front Frame Parts
Item Description
1 A1MP14 Shield
2 A1A1 Front Frame
3 A1MP10 Bracket front panel shield
4 A1A2 Front Panel Control Board
5 A1MP11 Display Bracket, Front Panel
A1W1 Flex Circuit, Display to Front Panel Control Board
A1W2 Cable Assembly, Backlight
