N9030B PXA Signal Analyzer Service Guide 409
Replaceable Parts
Hardware

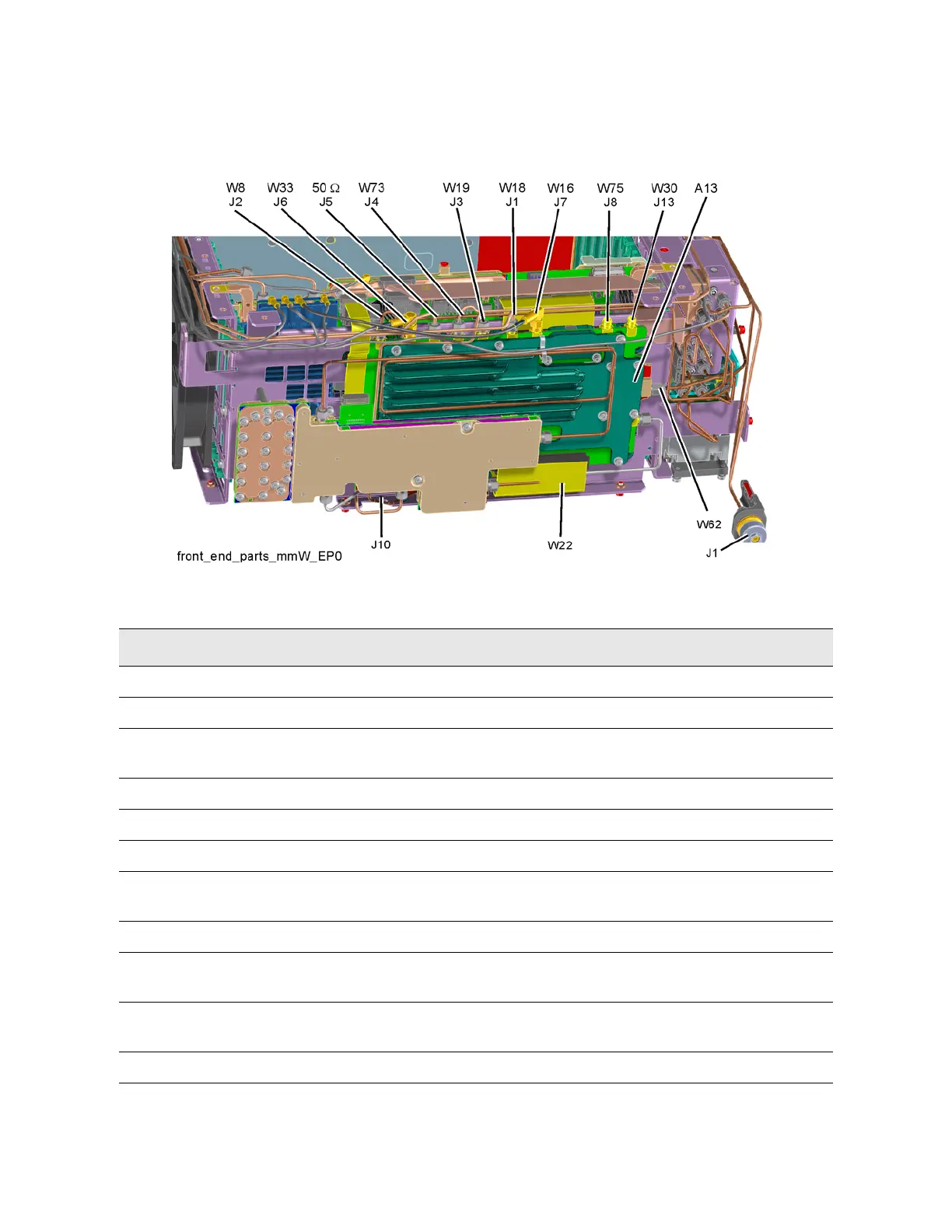

Figure 15-11 Front End Parts (Options 544, 550, EP0, B2X)
Table 15-13 Front End Parts (Options 544, 550, EP0, B2X)
Item Description Keysight Part Number
A13 A13 Front End Assembly (Options 544, 550) with Option EP0/B2X N9020-60210
J1 2.4 mm Input Connector Assembly (Options 544, 550) N9030-60011
W8 Cable, semi-rigid, Front End assy J2 to Low Band Switch J2 (Options
544, 550)
N9020-20131
W16 Cable, IF Out from Front End Assy J7 to Front End Control J902 8121-1862
W18 Cable, semi-rigid, 2nd LO In, Reference Assy J702 to Front End Assy J1 N9020-20022
W22 Cable, ribbon, Front End Assy control J12 to Front End Controller J102 E4410-60156
W30 Cable, coax, Ext IF Out, A13J13 to Front End Control J903 (Option 544,
550) (Option EXM)
8121-2025
W33 Cable, coax, 50 MHz Align, Front End Assy J6 to Reference Assy J705 8121-1940
W62 Cable, semi-rigid, Switch 4 Port 2 to A13A1 Input J9 (Options 544, 550
with Option LNP or MPB)
N9020-20130
W73 Cable, Semi-rigid, A14J1 Synthesizer Assembly to A13J4, Front End
Assembly (Option EP0)
N9020-20301
W75 Cable, Semi-rigid, Front End A13J8 to W29 (Option EXM, 544, 550) N9020-20167
