Keysight Technologies N9030B User Manual

N9030B PXA Signal Analyzer Service Guide 433
Assembly Replacement Procedures
Major Assembly Locations
Major Assembly Locations

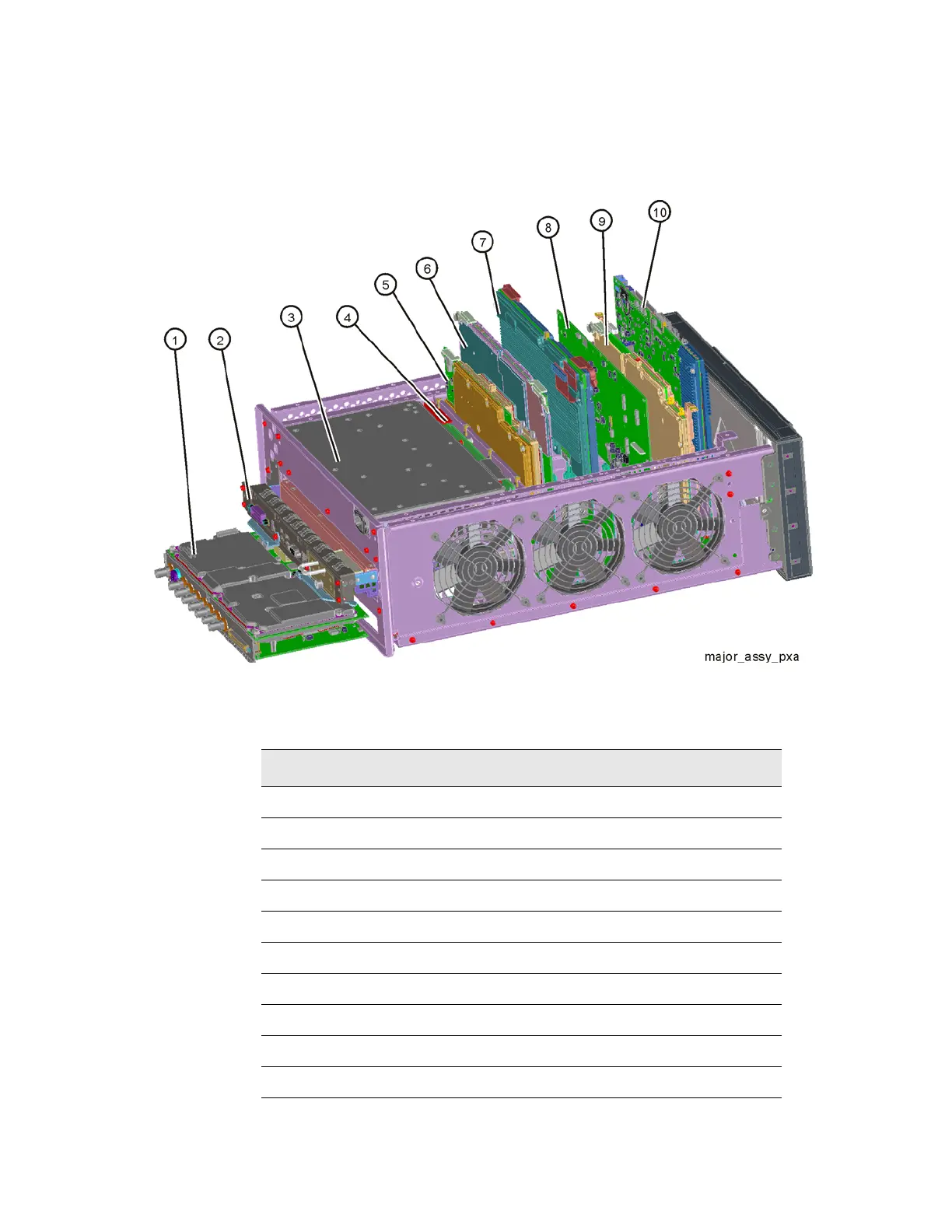

Figure 16-2 Major Assemblies
Table 16-2
Item Description
1 A2 Analog IF Assembly and A3 Digital IF Assembly
2 A4 CPU Assembly
3 A6 Power Supply
4 A7 Midplane Assembly
5 A16 Reference Assembly , Standard (Option EP1)
6 A25 Wideband Analog IF (Option B1X)
7 A26 Wideband Digital IF (Option B1X or B2X)
8 A19 BBIQ Main Board (Option BBA)
9 A14 Synthesizer Assembly, Standard (Option EP1)
10 A15 Front End Controller
