Assembly Replacement Procedures
Reference Assembly
Reference Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the top brace. Refer to the Top Brace and Power Supply Bracket
removal procedure.

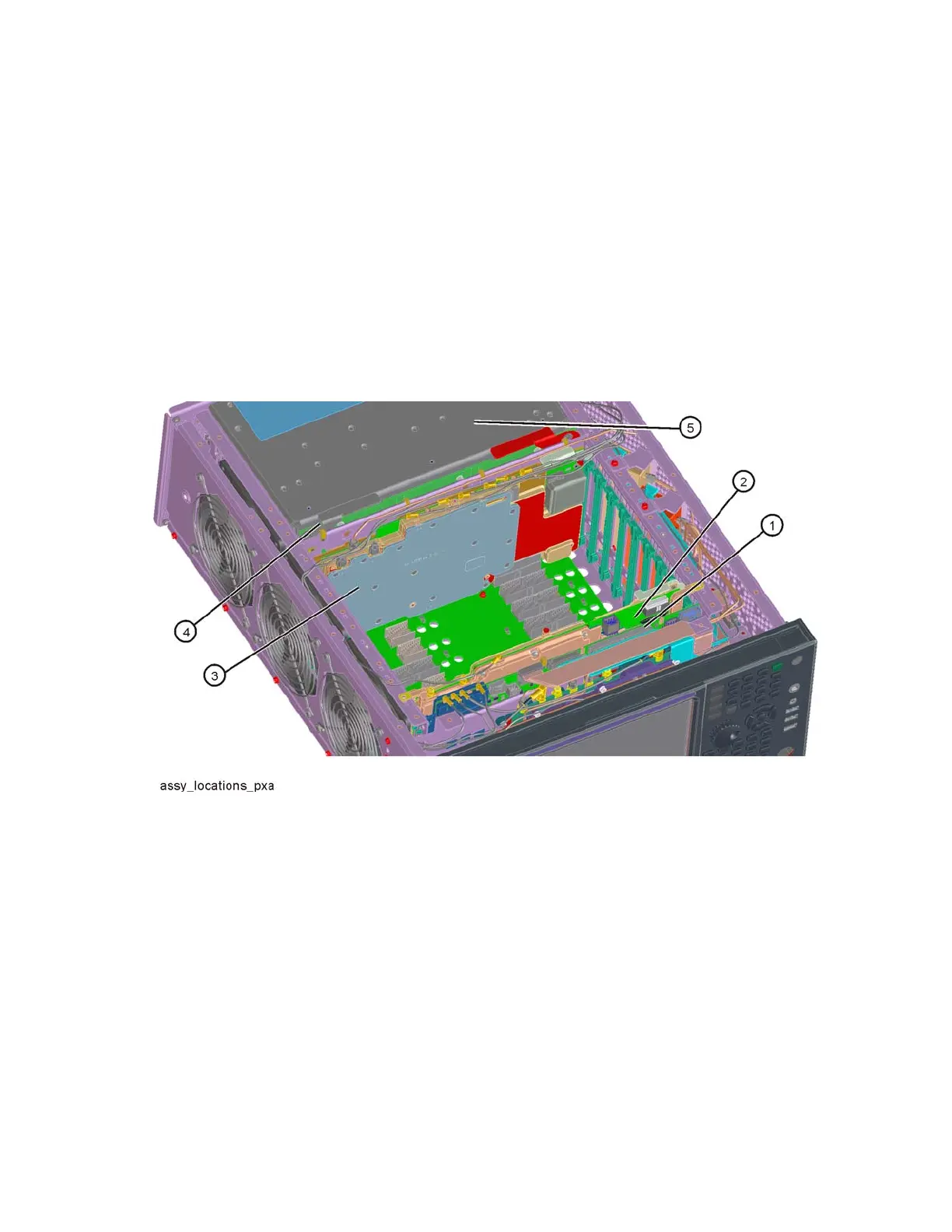

3. Refer to Figure 16-69. Locate the Reference assembly (3).
Figure 16-69 Assembly Locations
