408 N9030B PXA Signal Analyzer Service Guide
Replaceable Parts
Hardware

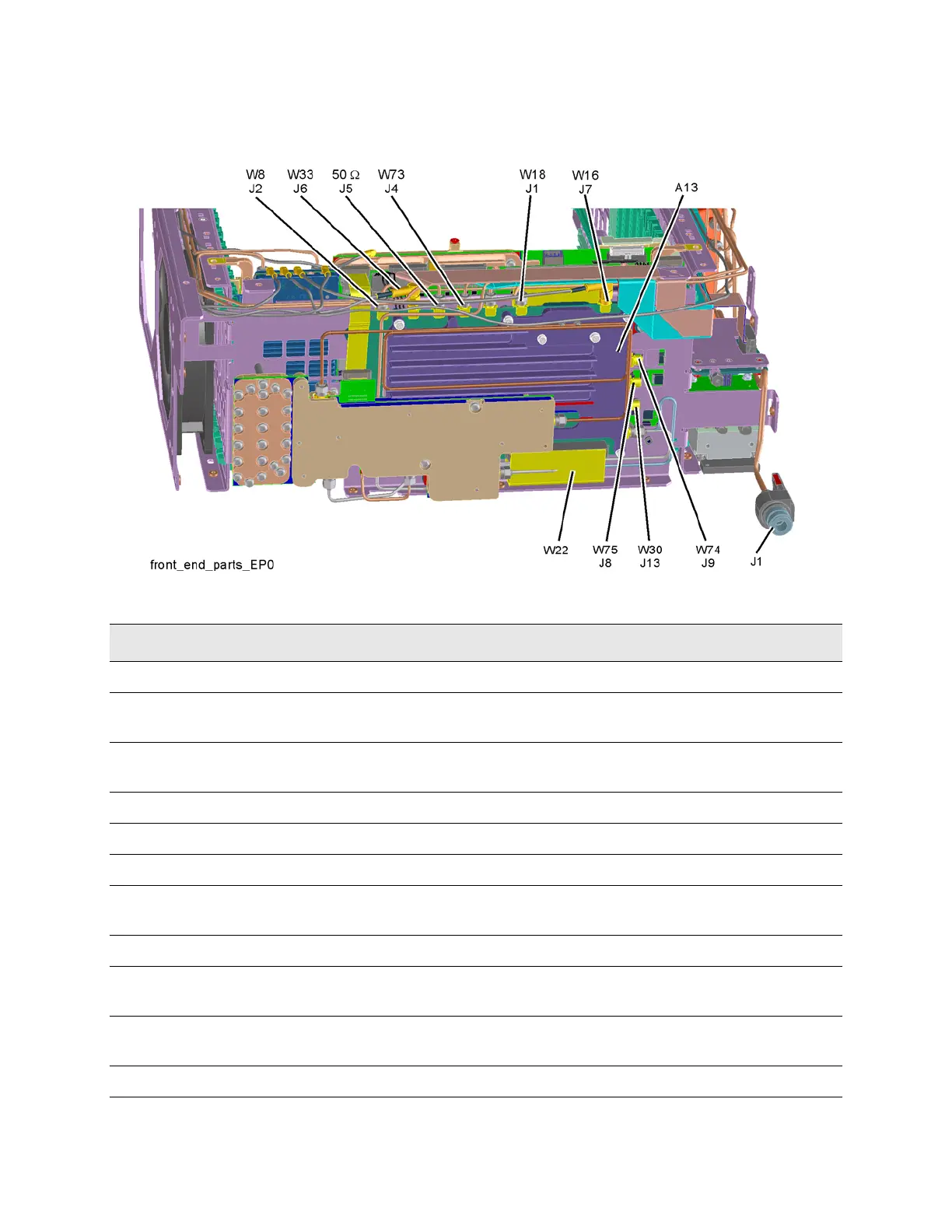

Figure 15-10 Front End Parts (Options 503, 508, 513, 526, EP0, B2X)
Table 15-12 Front End Parts (Options 503, 508, 513, 526, EP0, B2X)
Item Description Keysight Part Number
A13 A13 Front End Assembly (Options 503, 508, 513, 526) N9020-60129
J1 Type-N Input Connector Assembly (Options 503, 508, 513, 526 without
Option C35)
N9039-60030
W8 Cable, semi-rigid, Front End assy J2 to Low Band Switch J2 (Options 503,
508, 513, 526)
N9020-20101
W16 Cable, IF Out from Front End Assy J7 to Front End Control J902 8121-1862
W18 Cable, semi-rigid, 2nd LO In, Reference Assy J702 to Front End Assy J1 N9020-20022
W22 Cable, ribbon, Front End Assy control J12 to Front End Controller J102 E4410-60156
W30 Cable, coax, Ext IF Out, A13J13 to Front End Control J903 (Option 503, 508,
513, 526) (Option EXM)
8121-2027
W33 Cable, coax, 50 MHz Align, Front End Assy J6 to Reference Assy J705 8121-1940
W73 Cable, Semi-rigid, A14J1 Synthesizer Assembly to A13J4, Front End
Assembly (Option EP0)
N9020-20301
W74 Cable, Semi-rigid, Front End A13J9 to lower coax switch port C (Option B2X,
B5X)
N9020-20305
W75 Cable, Semi-rigid, Front End A13J8 to W29 (Option EXM, 508, 513, 526) N9020-20304
