N9030B PXA Signal Analyzer Service Guide 407
Replaceable Parts
Hardware

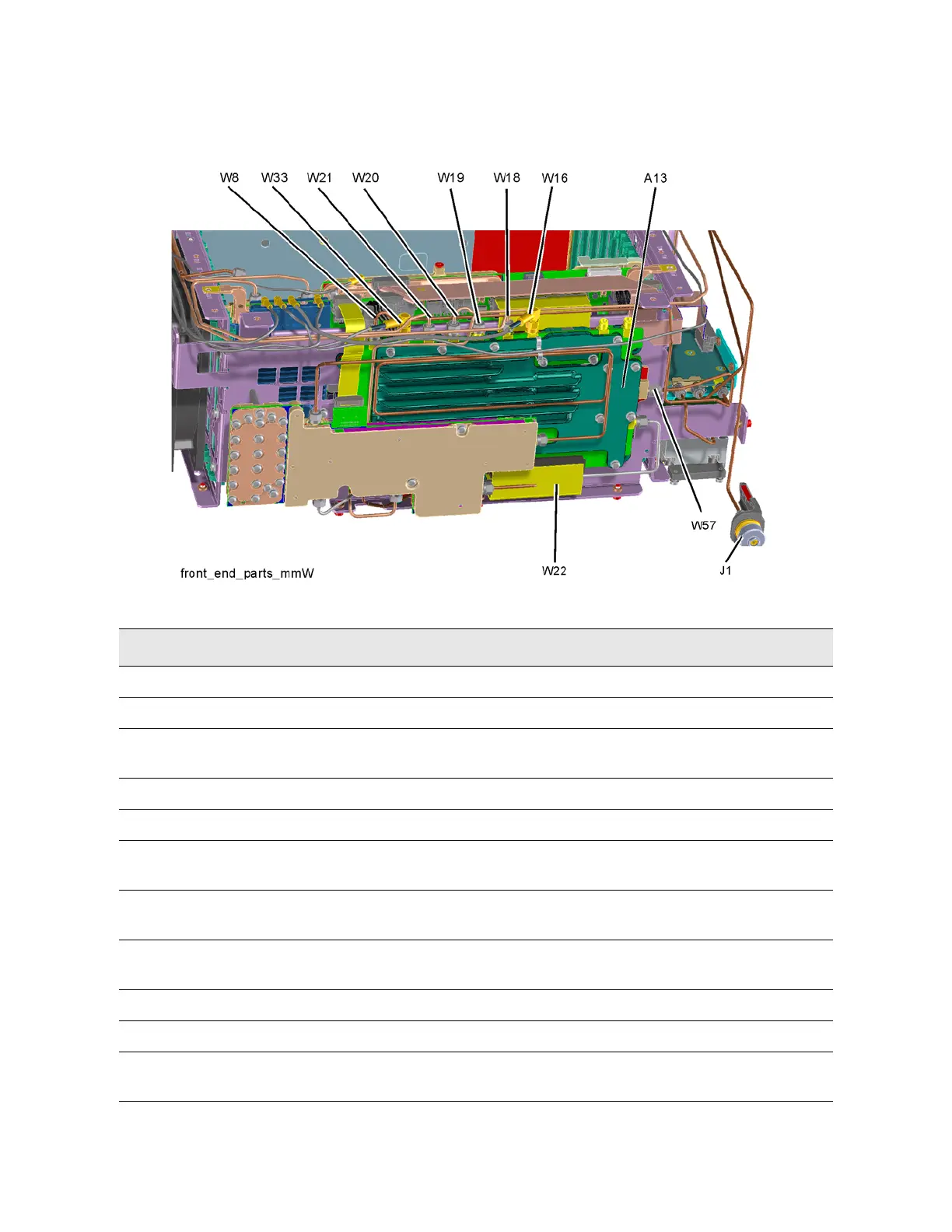

Figure 15-9 Front End Parts (Options 544, 550, EP1)
Table 15-11 Front End Parts (Options 544, 550, EP1)
Item Description Keysight Part Number
A13 A13 Front End Assembly (Options 544, 550) N9020-60144
J1 2.4 mm Input Connector Assembly (Options 544, 550) N9030-60011
W8 Cable, semi-rigid, Front End assy J2 to Low Band Switch J2 (Options
544, 550)
N9020-20131
W16 Cable, IF Out from Front End Assy J7 to Front End Control J902 8121-1862
W18 Cable, semi-rigid, 2nd LO In, Reference Assy J702 to Front End Assy J1 N9020-20022
W19 Cable, semi-rigid, AUX LO Out from Front End Assy J3 to Switched
Filter Assy J6
N9020-20077
W20 Cable, semi-rigid, Front End Assy J4 To YTO (Options 503, 508, 513,
526 - without EP0)
N9020-20152
W21 Cable, semi-rigid, LO Synthesizer Assy J20 to Front End Assy J5
(without EP0)
N9020-20019
W22 Cable, ribbon, Front End Assy control J12 to Front End Controller J102 E4410-60156
W33 Cable, coax, 50 MHz Align, Front End Assy J6 to Reference Assy J705 8121-1940
W57 Cable, semi-rigid, YTF output to Front End assy J9 (Options 544, 550
without Option MPB or LNP); see W62 if Option LNP/MPB
N9010-20006
