546 N9030B PXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Front Frame Assembly
2. Refer to Figure 16-104. To remove the Front Panel Control board (1),
remove the seven screws (2) (0515-0372). When replacing the board
torque the screws to 9 inch-pounds.

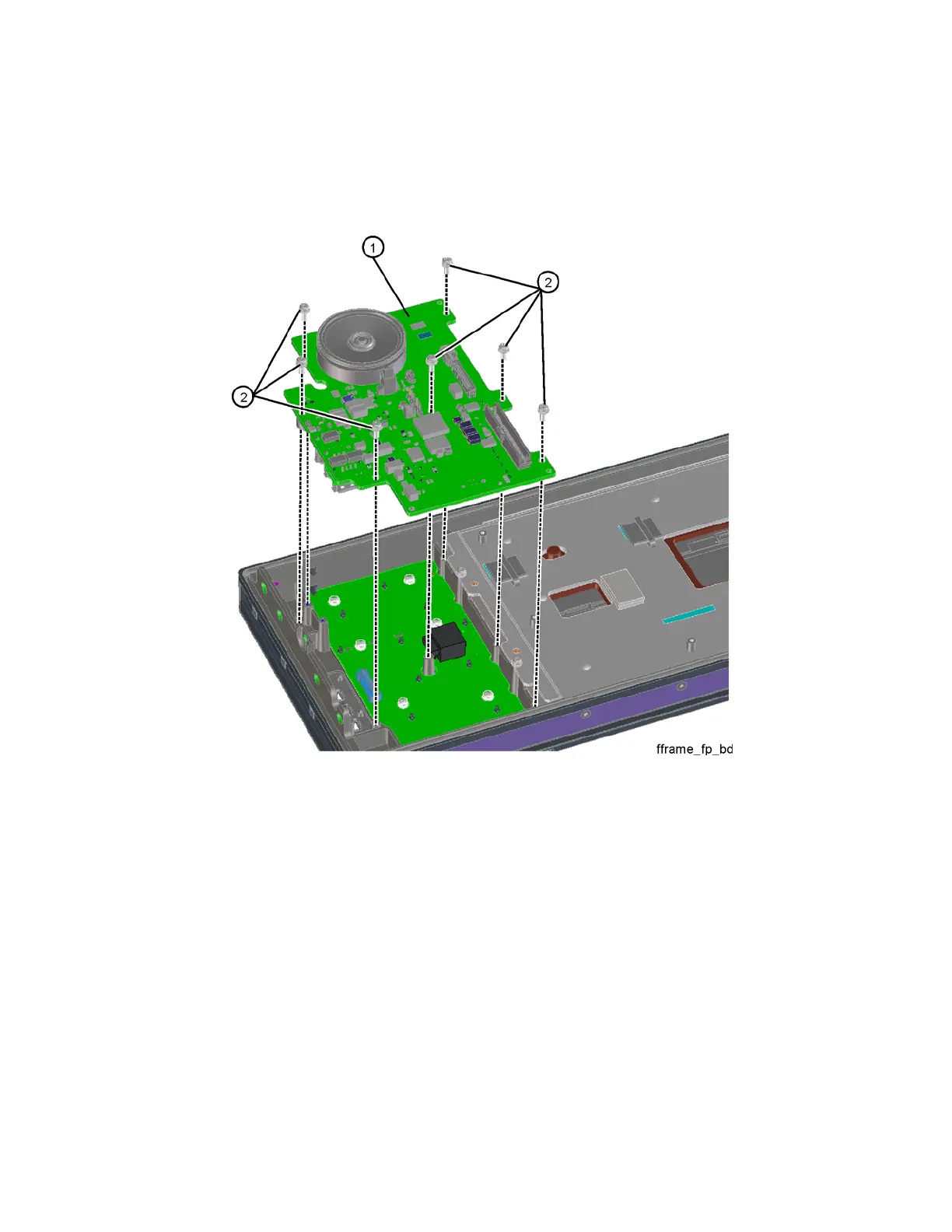

Figure 16-104 Front Panel Control Board
