414 N9030B PXA Signal Analyzer Service Guide
Replaceable Parts
Hardware

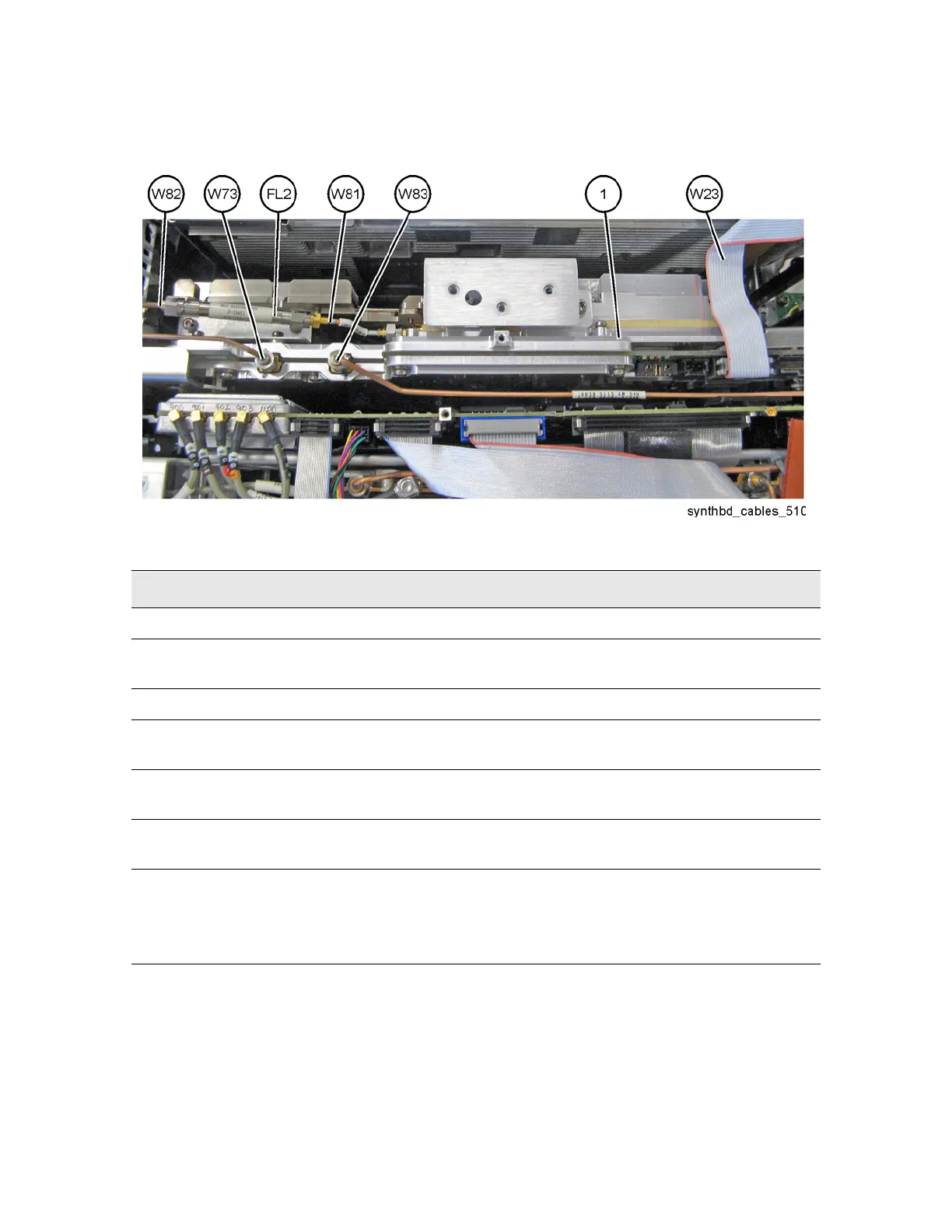

Figure 15-14 Synthesizer Assembly Cables (Option EP0)
Table 15-16 Synthesizer Assembly Cables (Option EP0)
Item Description Keysight Part Number
1 A14 Synthesizer Assembly, (Option EP0) N9020-60227
FL2 7.2 GHz bandpass filter (connects to semi rigid from A14) (Option
EP0)
9135-6218
W23 Cable, ribbon, YTO Control, LO Synthesizer J25 to YTO N9020-60024
W73 Cable, Semi-rigid, A14J1 Synthesizer Assembly to A13J4, Front
End Assembly (Option EP0)
N9020-20301
W81 Cable, Semi-rigid, A14 Synthesizer Assembly to FL2, 7.2 GHz BPF
(Option EP0)
N9020-20226
W82 Cable, Semi-rigid, A16J703 Reference Assembly to FL2, 7.2 GHz
BPF (Option EP0)
N9020-20303
W83 Cable, Semi-rigid, A14J2 Synthesizer Assembly to A20 YTO
Assembly output (Options 503, 508, 513, 526 with Option EP0)
Cable, Semi-rigid, A14J2 Synthesizer Assembly to A20 YTO
Assembly output (Options 544, 550 with Option EP0)
N9020-20302
N9020-20298
To Next Page
