416 N9030B PXA Signal Analyzer Service Guide
Replaceable Parts
Hardware

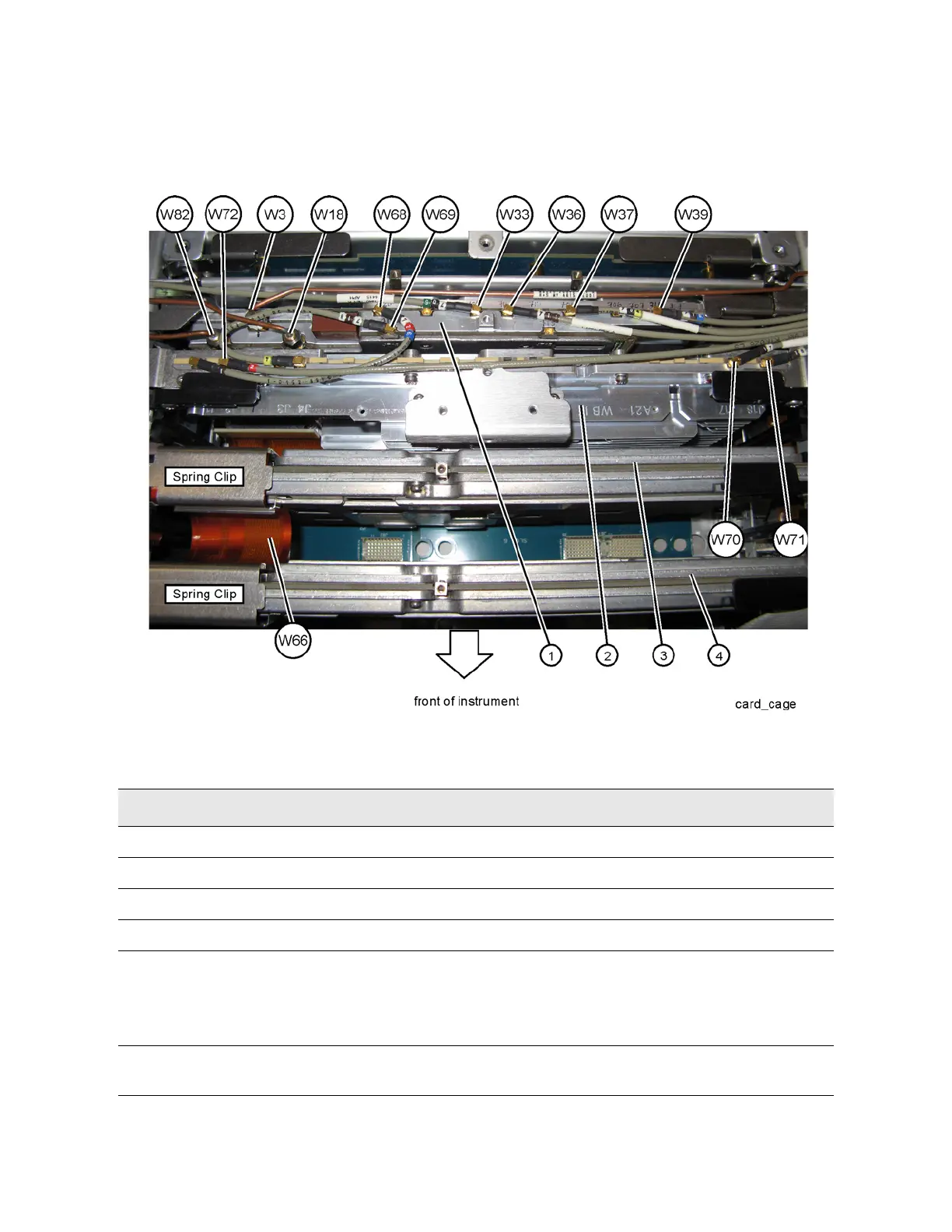

Figure 15-16 Reference Assembly Cables (Option EP0),
and Wide Bandwidth Analog IF Cables (Option B2X, B5X)
Table 15-18 Reference Assembly Cables (Option EP0),
and Wide Bandwidth Analog IF Cables (Option B2X, B5X)
Item Description Keysight Part Number
1 A16 Reference Assembly (Option EP0) N9020-60187
2 A25 Wideband Analog IF (Option B2X or B5X) N9020-60043
3 A26 Wideband Digital IF (Option B1X or B2X) N9020-60311
4 A27 Wideband Digital IF (Option B5X) N9020-60311
W3 Cable, semi-rigid, Cal In to attenuator, Reference Assy J701 to
Attenuator A (Options 503, 508, 513, 526)
Cable, semi-rigid, Cal In to attenuator, Reference Assy J701 to
Attenuator A (Options 544, 550)
N9020-20023
N9020-20072
W18 Cable, semi-rigid, 2nd LO In, Reference Assy J702 to Front End Assy
J1
N9020-20022
To Next Page
