570 N9030B PXA Signal Analyzer Service Guide
Post-Repair Procedures
Post-Repair Procedures

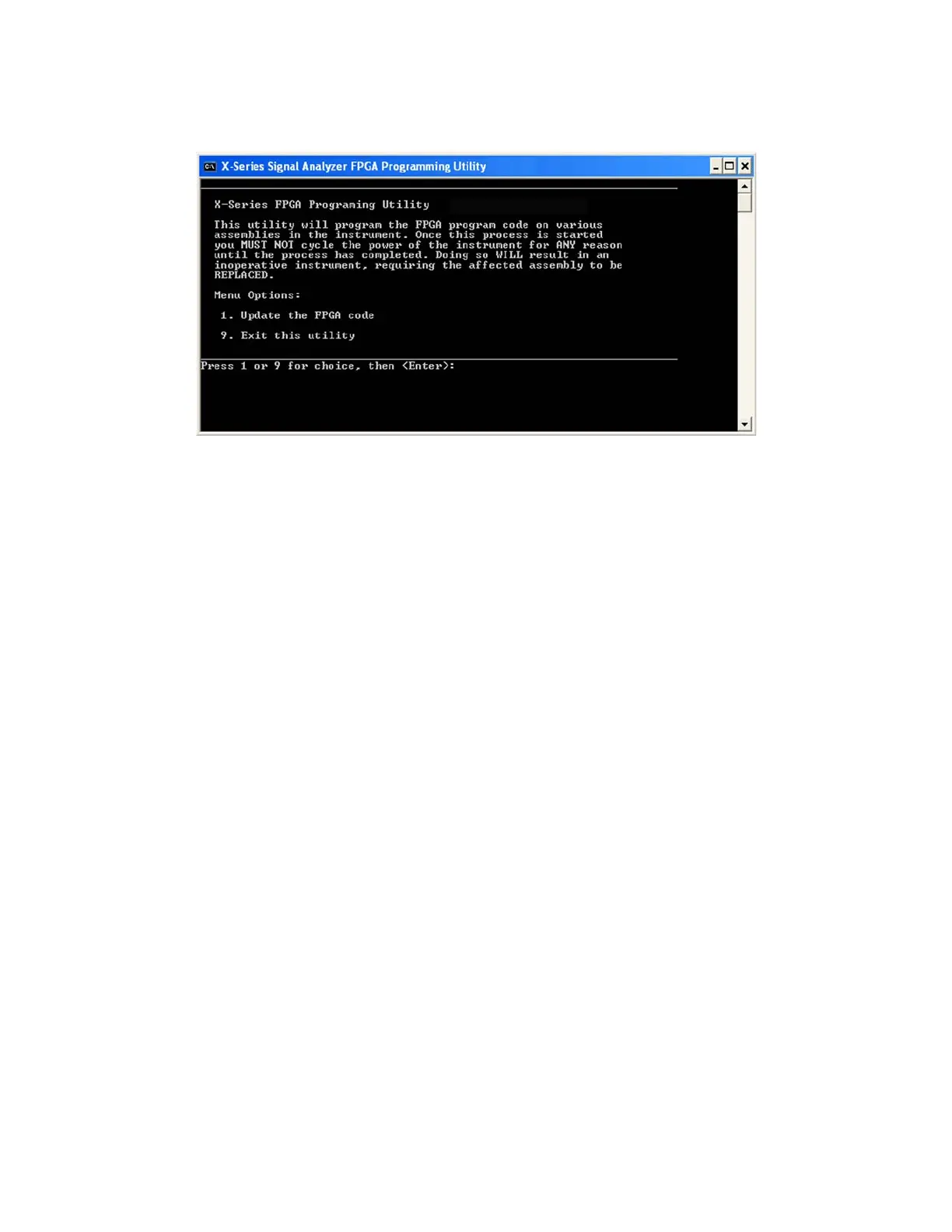

Figure 17-11 FPGA Programming Utility
8. To program the FPGA code enter 1 and press Enter. You will need to
confirm this selection by pressing 1 and Enter one more time.
9. The programming of the FPGA code could take a few minutes to complete.
Once it has finished the instrument will reboot itself to use the new code
and this process will then be completed.
