N9030B PXA Signal Analyzer Service Guide 603
Functional Tests
BBIQ Input Frequency Response (Option BBA only)

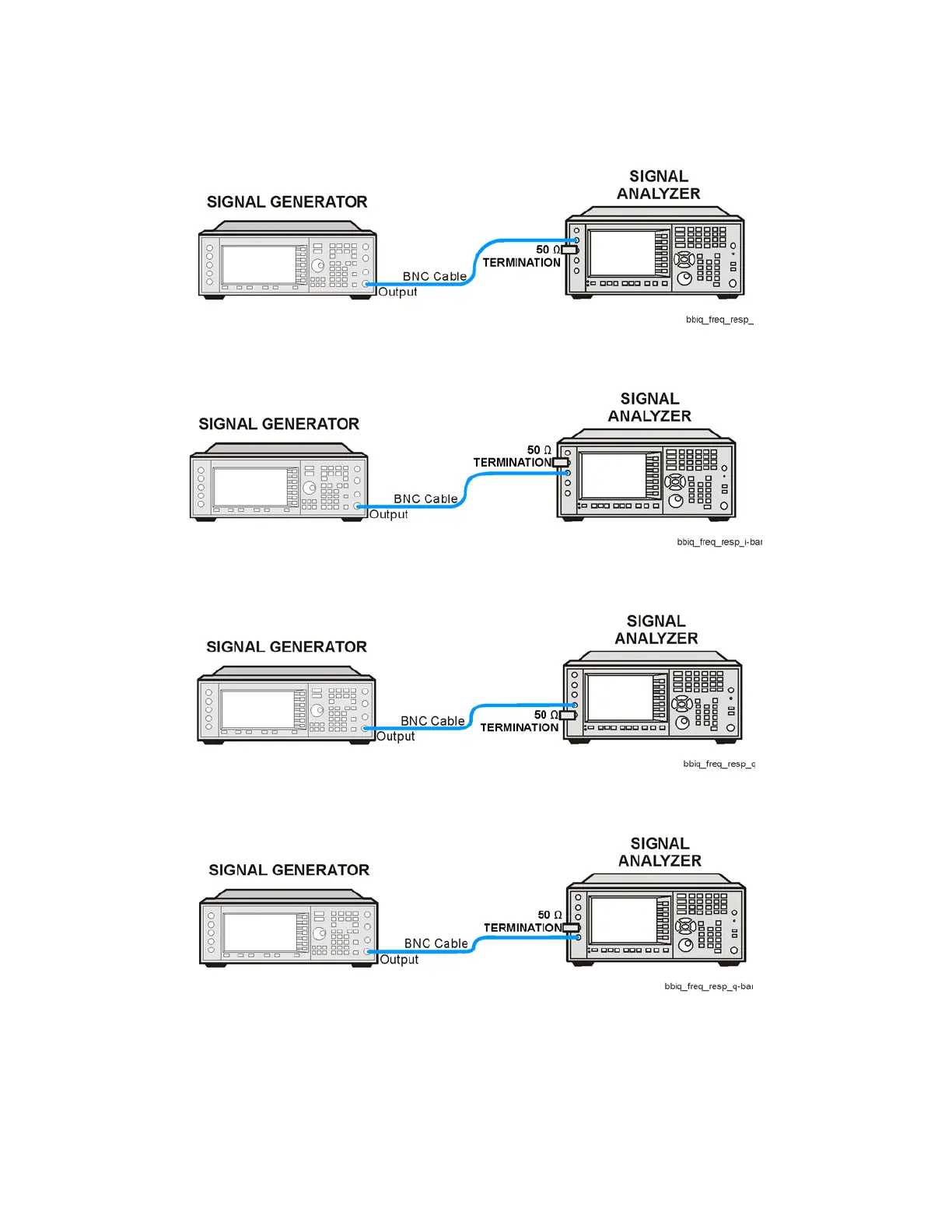

Figure 18-8 BBIQ Input Frequency Response Setup (I Input)
Figure 18-9 BBIQ Input Frequency Response Setup (I Input)
Figure 18-10 BBIQ Input Frequency Response Setup (Q Input)
Figure 18-11 BBIQ Input Frequency Response Setup (Q Input)
