92 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Optimizing Performance for All Models

Using the Dual Power Meter Display (with USB U2000A Series Power Sensors)

17.Press Done

Calibration progress bar is displayed. Refer to Figure 5-12 on page 92.

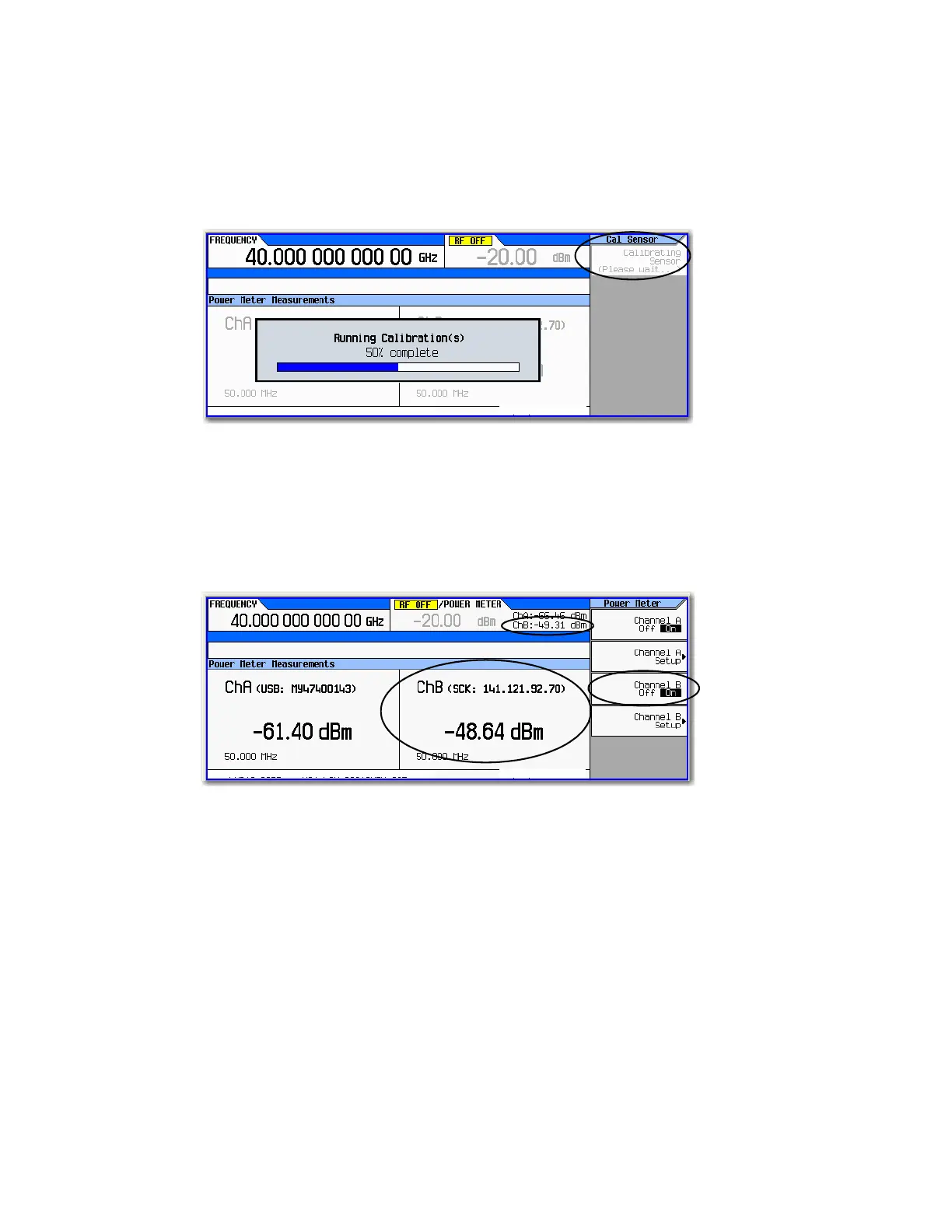

Figure 5-12 Running Calibration(s) Bar (Calibrating Sensor)

18.Press Return > Channel B to On

19.The current power meter sensor reading should be displayed on the signal generator in the

ChB portion of the display and in the upper right corner of the display under Power Meter and

to the left of the Power Meter power sensor reading.

Figure 5-13 Channel B Power Sensor Displayed on MXG/EXG

20.The power sensors are now ready to be connected in a measurement setup.
