Keysight EXG and MXG X-Series Signal Generators User’s Guide 251
Basic Digital Operation for N5172B/82B with Options 653/655/656/657
Waveform Licensing
Example: Licensing a Signal Studio Waveform
The following steps add a waveform file to a license slot and lock the slot for permanent playback.
1. Press Mode > Dual ARB > More > Waveform Utilities > Waveform Licensing
The signal generator displays a catalog of files labeled: Catalog of BBG Segment Files in
BBG Memory.
2. Use the arrow keys to highlight and select the file to be licensed.
3. Press Add Waveform to add the selected waveform to the first available slot.

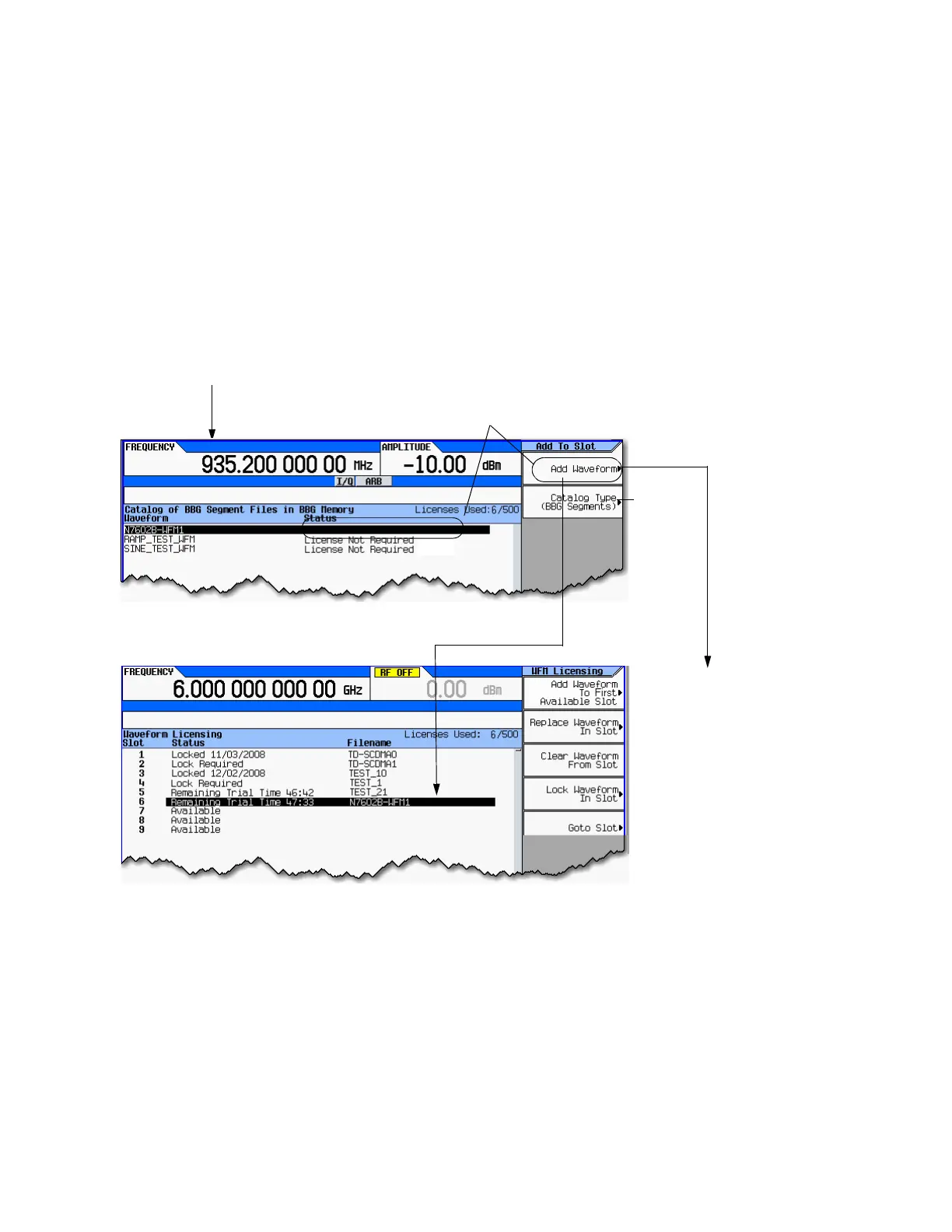

Figure 8-36 Add Waveform
Mode > Dual ARB > More > Waveform Licensing>
Add Waveform to First Available Slot
page248
Status area for the waveform
N7602B–WFM1 is empty and the
Add Waveform softkey is active,
indicating the waveform is
licensable.
The selected waveform is
added to the first
available slot. The trial
time for the slot begins as
soon as the waveform is
added.
During the 48 hour trial
period, the waveform can
be played and replaced
any number of times.
When the trial time
expires, the licensing
status of the slot changes
to Lock Required after
which the waveform can
no longer be played until
the slot is locked.
To Next Page
