MMC Smart Drive Hardware Manual - 460V 3 PHASE MMC SMART DRIVE NEXTGEN

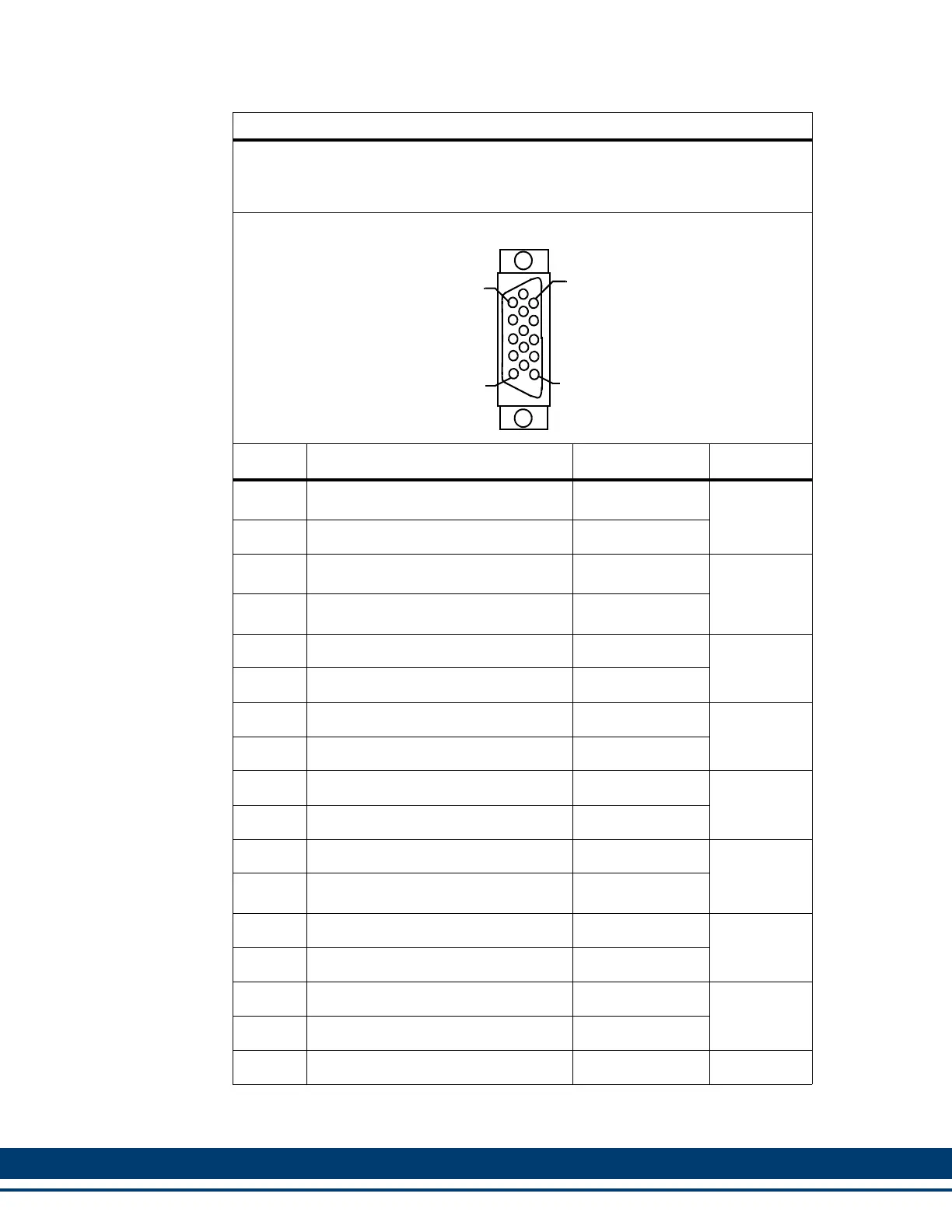

Table 6-9: Feedback Port (F1 and F2) to Flying Lead Cable
1 M (3.3 ft): M.3000.1334 3 M (9.8 ft): M.3000.1335
6 M (19.7 ft): M.3000.1336 9 M (29.5 ft): M.3000.1337
Cable type: 28 AWG, (1 pair 16 AWG) shielded, twisted pair, 16 conductor.
15-Pin HD male D-sub (to F1/F2 Port, face view)
Pin Signal Color Notes
1
S1
a
Yellow Twisted
N/C N/A White/Yellow Pair
2
S2
a
, RS-485 Clock+
Brown Twisted
3
S3
a
, RS-485 Clock-
White/Brown Pair
4 +5V Sense+ Violet Twisted
5 +5V Sense- White/Violet Pair
6 RS-485 Data+, Com+, Carrier+ Black Twisted
7 RS-485 Data-, Com-, Carrier- White/Black Pair
8 Temperature+ Red Twisted
9 Temperature- White/Red Pair
10 +5V Source Gray Twisted
11 Common White/Gray
Pair
b
12 Sine/Sin+ Green Twisted
13 Sine/, Sin- White/Green Pair
14 Cos, Cos+ Orange Twisted
15 Cos/, Cos- White/Orange Pair
Shell Shield N/A
a. Hall signals S1, S2, and S3 are only available on F2
b. Pins 10 & 11 are 16 AWG
