Lenze 8400 StateLine C - Page 308

8400 StateLine C | Reference manual
Technology applications
TA "Actuating drive speed"
308 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

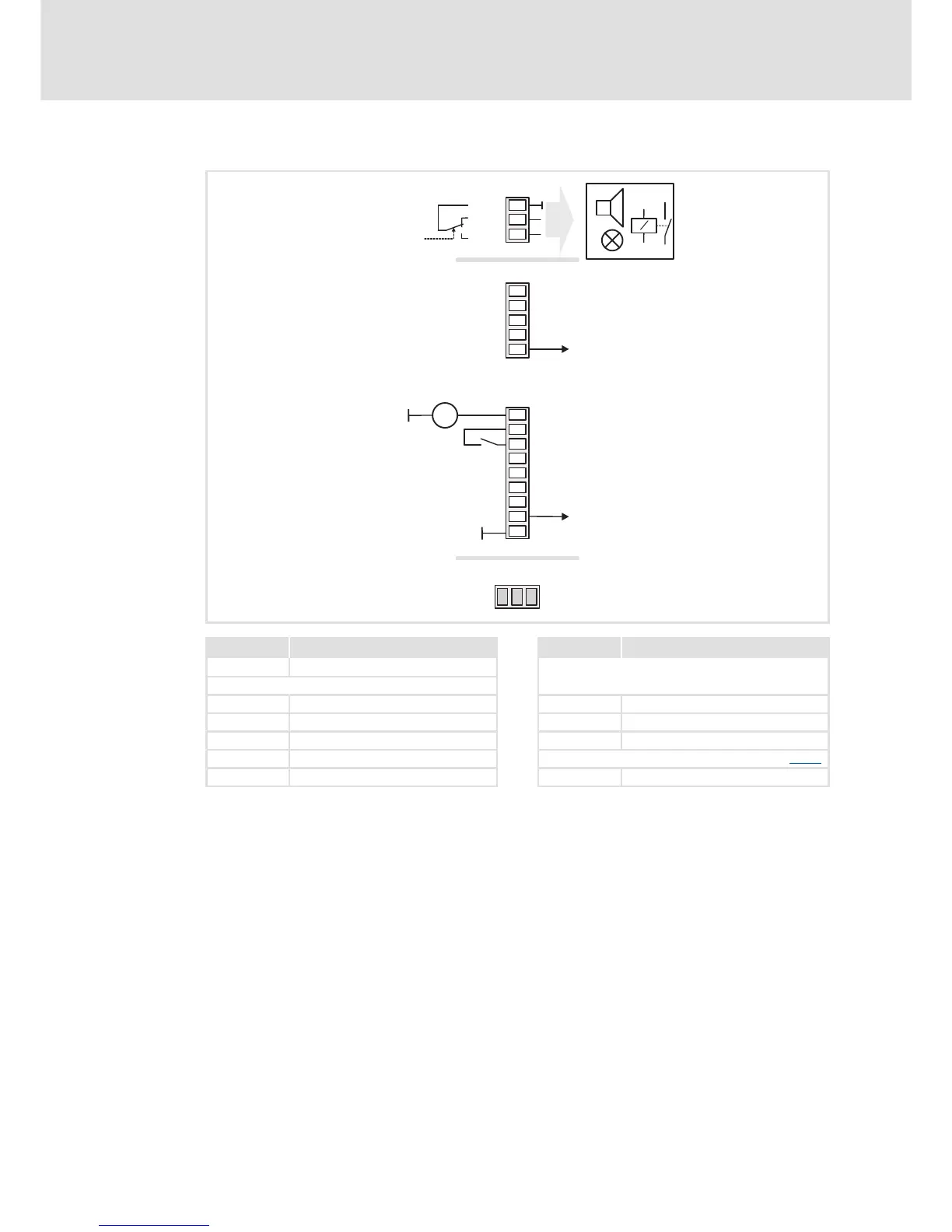

7.2.3.6 PC
Connection Assignment Connection Assignment
X101/NC-NO LA_NCtrl.bDriveFail
X4/RFR LA_NCtrl.bFailReset X3/A1U -
X4/DI1 - X3/A1I -
X4/DI2 - X3/O1U LA_NCtrl.nMotorSpeedAct_a *
X4/DI3 - * 10 V ≡ 100 % reference speed (C00011
)
X4/DI4 - X4/DO1 LA_NCtrl.bDriveReady
=
+++
X4
DI3
DI2
DI4
GIO
24I
DI1
RFR
24E
+
X3
AR
A1U
GA
A1I
DO1
O1U
COM
NC
NO
X101
CG
CL
CH
X1
Controller enable / reset error
External
supply
24 V DC
DriveReady
Actual speed value
DriveFail
