Lenze 8400 StateLine C - Page 335

Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 335
8400 StateLine C | Reference manual
Technology applications

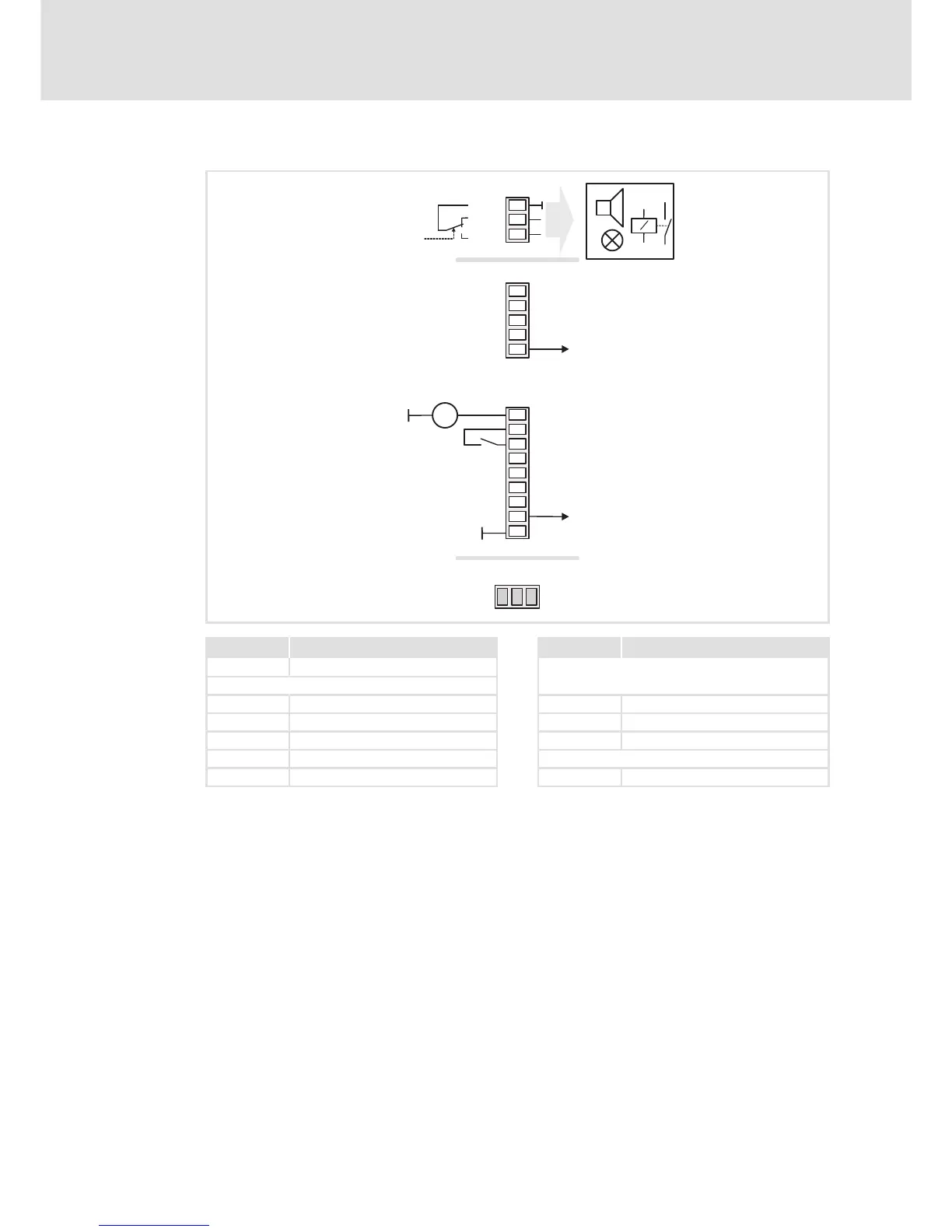

TA "Switch-off positioning"
7.3.3.6 PC
Connection Assignment Connection Assignment
X101/NC-NO LA_SwitchPos.bDriveFail
X4/RFR LA_SwitchPos.bFailReset X3/A1U -
X4/DI1 - X3/A1I -
X4/DI2 - X3/O1U -
X4/DI3 -
X4/DI4 - X4/DO1 LA_SwitchPos.bDriveReady
=
+++
X4
DI3
DI2
DI4
GIO
24I
DI1
RFR
24E
+
X3
AR
A1U
GA
A1I
DO1
O1U
COM
NC
NO
X101
CG
CL
CH
X1
External
supply
24 V DC
Controller enable / reset error
