Lexmark MS410 series Service Manual

Horizontal top contact connector
This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding.
The horizontal top contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift or close the two tabs located
on each end of the actuator. The two tabs should be moved simultaneously. Do not close the actuator from the
center of the actuator.
Removing a cable from the horizontal top contact connector
1

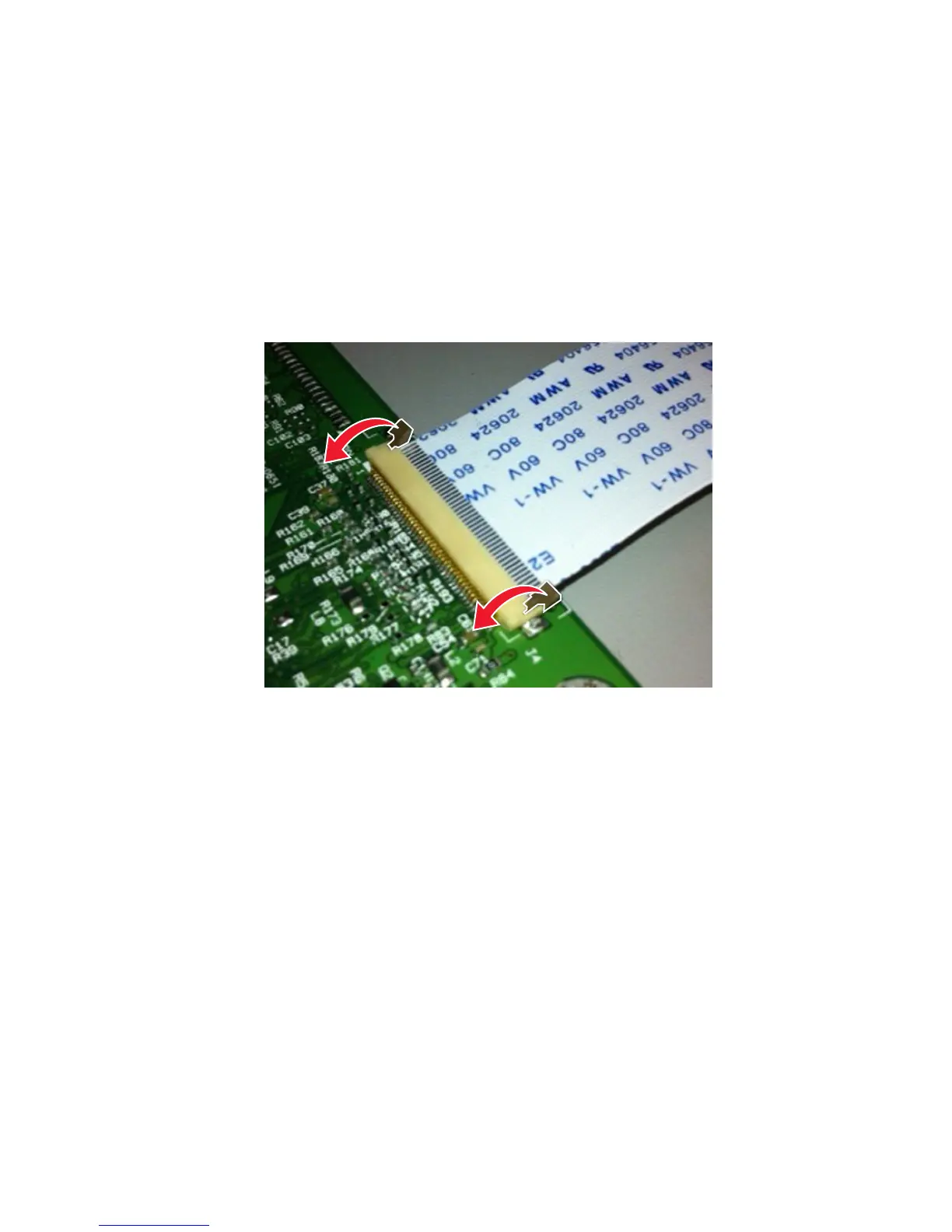

Place a finger at each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
4514-420, -430
Repair information
130

Lexmark MS410 series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 40 ppm
Duplex Printing	Standard
Processor Speed	800 MHz
Warranty	1-year limited warranty
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Input Capacity	250-Sheet Input
Output Capacity	150 sheets
Mobile Printing	Lexmark Mobile Print
Operating System Compatibility	Windows, macOS, Linux
Dimensions	15.7 x 15.0 x 10.3 inches
Weight	31.0 lbs
Recommended Monthly Page Volume	750 - 3, 500 pages
