Lexmark MS410 series Service Manual

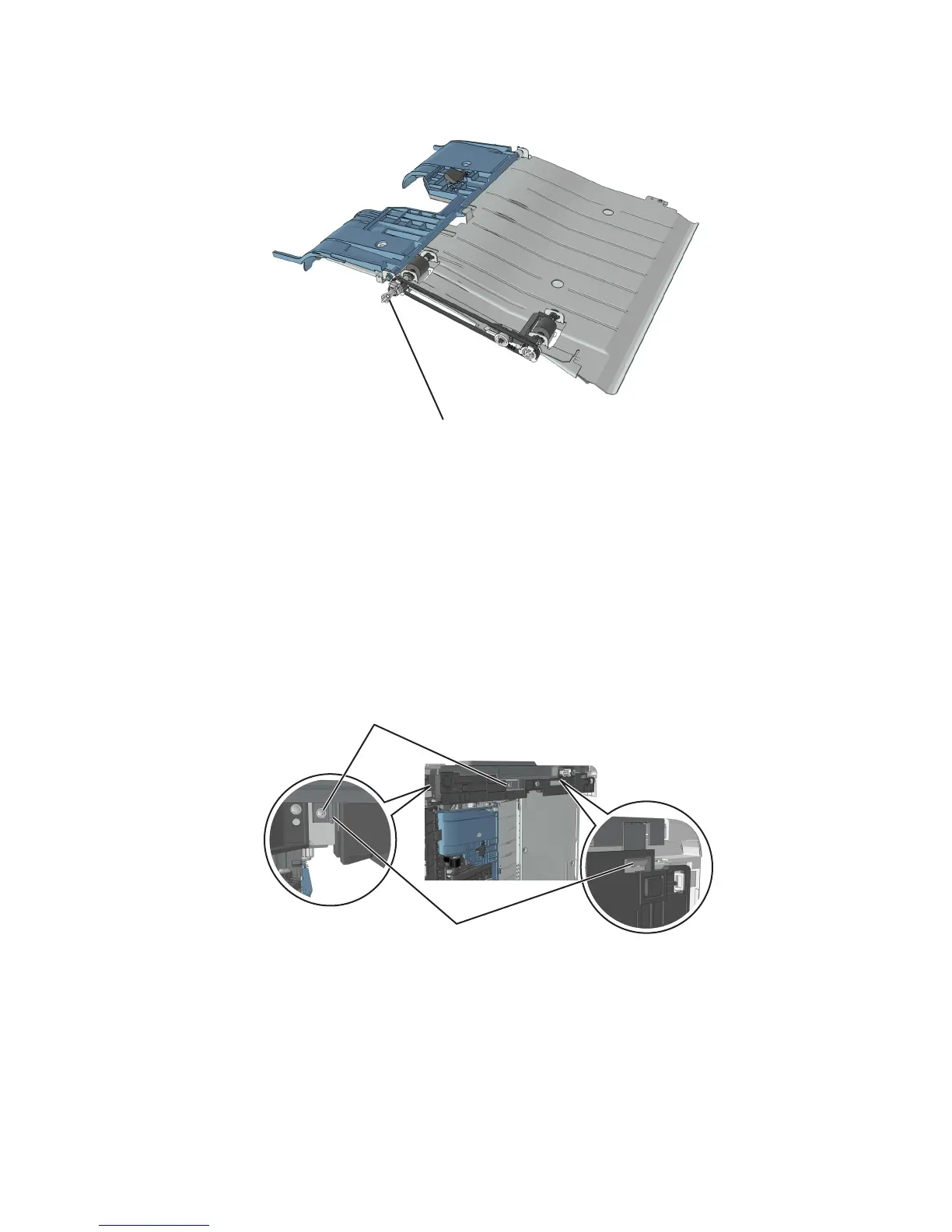

12 Remove the duplex link (E) from the duplex.
E
Right side removals
Right cover removal
1 Open the front door.
2 Position the printer so that it sits on its left side.
3 Remove the two screws (A) securing the right cover.
4 Release the latches (B) to remove the right cover.
B
A
4514-420, -430
Repair information
162

Lexmark MS410 series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 40 ppm
Duplex Printing	Standard
Processor Speed	800 MHz
Warranty	1-year limited warranty
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Input Capacity	250-Sheet Input
Output Capacity	150 sheets
Mobile Printing	Lexmark Mobile Print
Operating System Compatibility	Windows, macOS, Linux
Dimensions	15.7 x 15.0 x 10.3 inches
Weight	31.0 lbs
Recommended Monthly Page Volume	750 - 3, 500 pages
