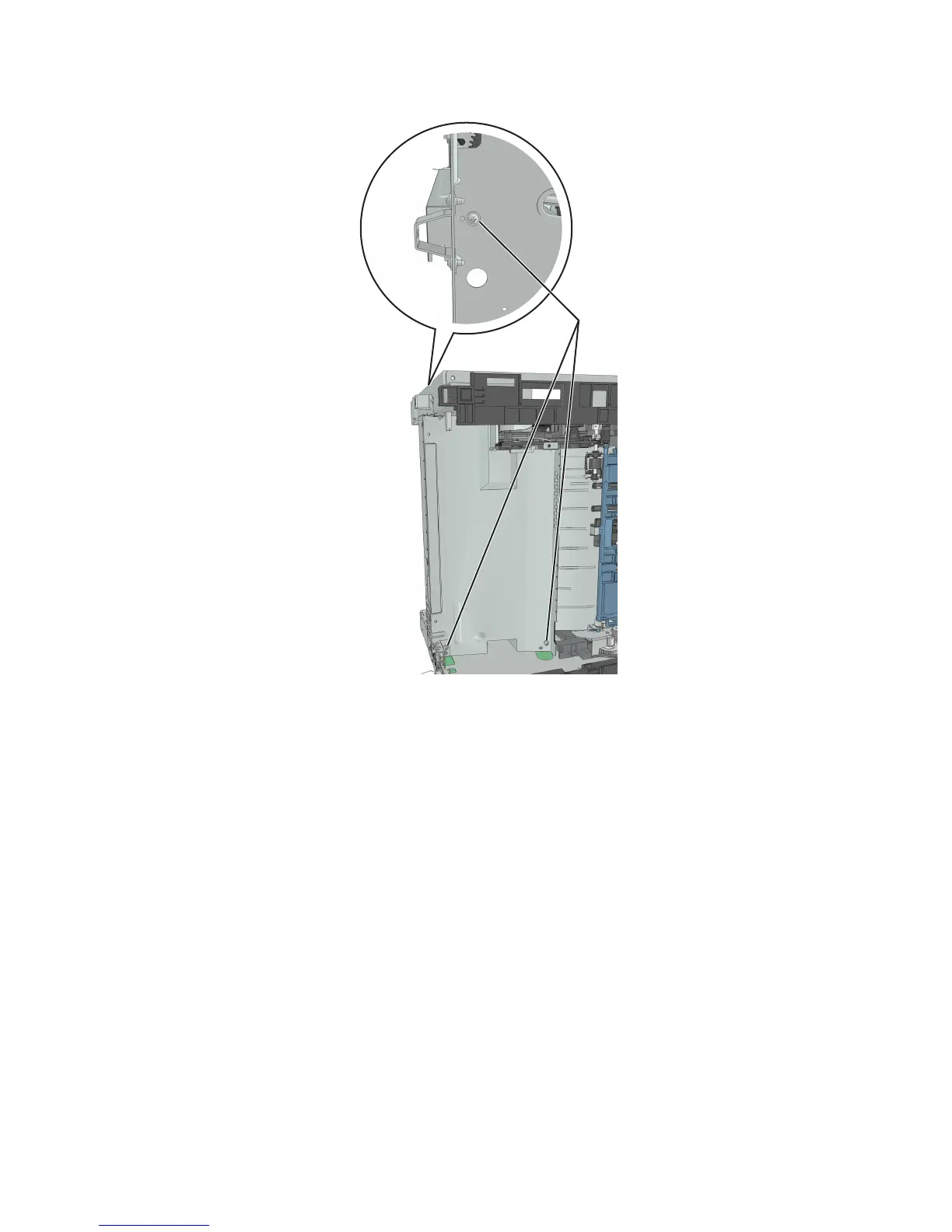

5 Remove the three screws (A), and then remove the power supply shield.
A
Duplex removal
1 Remove the left cover. See “Left cover removal” on page 146.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 207.
3 Remove the power supply. See “Power supply removal” on page 191.
4 Remove the power supply shield. See “Power supply shield removal” on page 192.
5 Position the printer so that it sits on its right side.
4514-420, -430
Repair information
193
