Lexmark MS410 series Service Manual

Horizontal bottom contact connector
This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding.
The horizontal bottom contact connector uses a flip locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator
using your finger. Do not use a fingernail or screwdriver to open the actuator. This could damage the ribbon cable.
Do not close the actuator from the ends of the actuator.
Removing a cable from the horizontal bottom contact connector
1

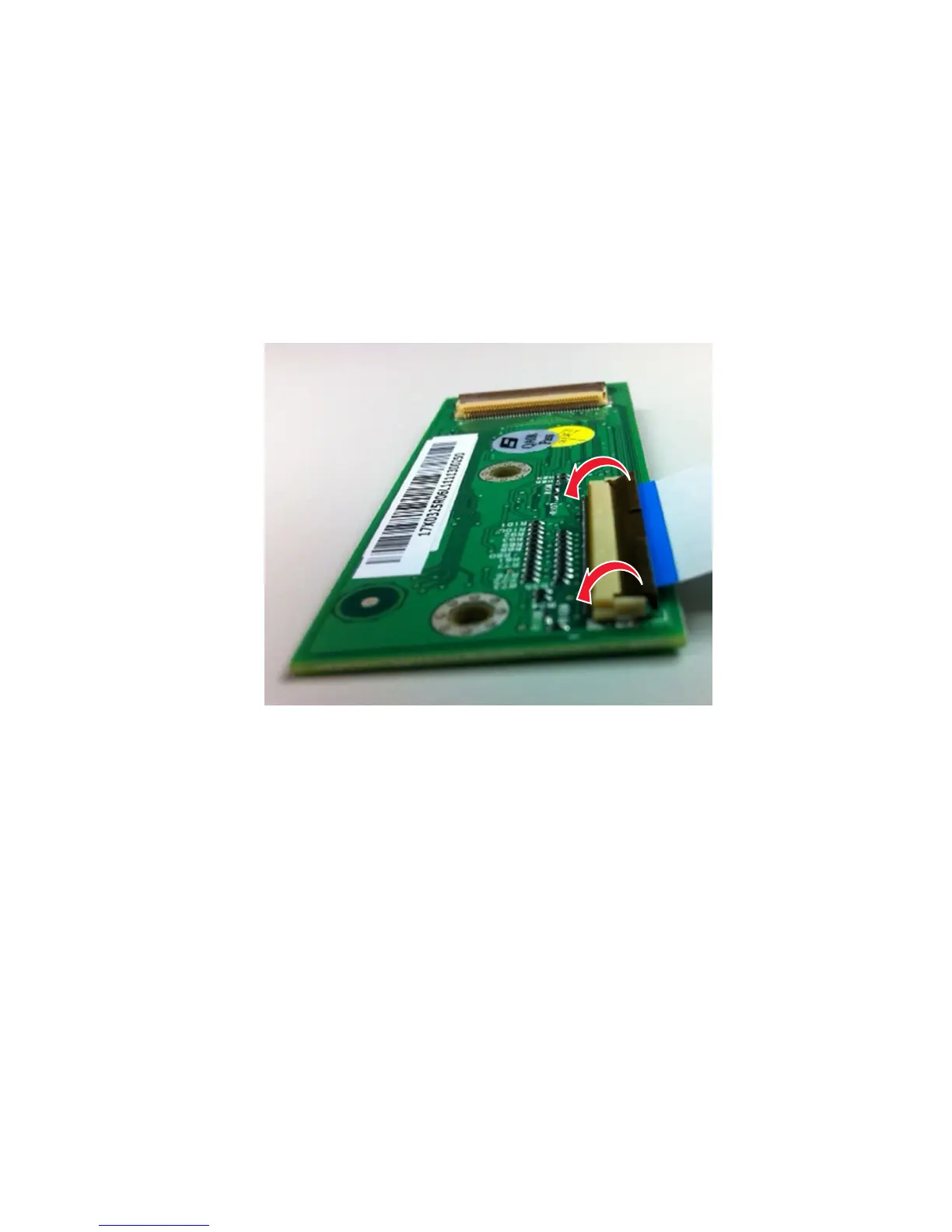

Place two fingers towards each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
4514-420, -430
Repair information
133

Lexmark MS410 series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 40 ppm
Duplex Printing	Standard
Processor Speed	800 MHz
Warranty	1-year limited warranty
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Input Capacity	250-Sheet Input
Output Capacity	150 sheets
Mobile Printing	Lexmark Mobile Print
Operating System Compatibility	Windows, macOS, Linux
Dimensions	15.7 x 15.0 x 10.3 inches
Weight	31.0 lbs
Recommended Monthly Page Volume	750 - 3, 500 pages
