c Install the right front mount to the printer.

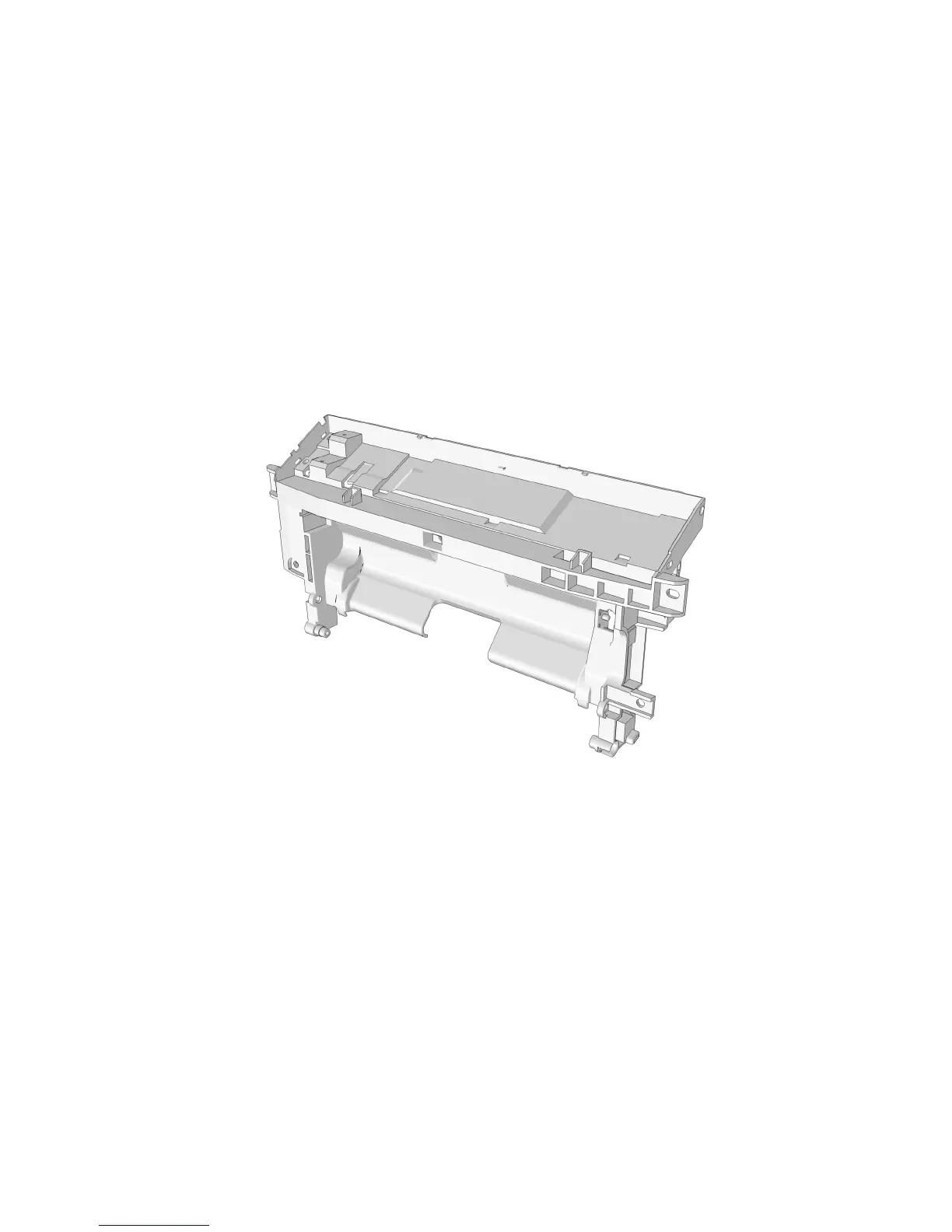

Front access cover removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Remove the front door. See “Front door removal” on page 183.
3 Remove the nameplate. See “Nameplate removal” on page 175.
4 Remove the MPF assembly. See “MPF assembly removal” on page 178.
5 Remove the bezel. See “Bezel removal” on page 174.
6 Remove the control panel assembly. See “Control panel assembly removal” on page 175.
7 The front access cover remains.
Front door sensor removal
1 Remove the front door. See “Front door removal” on page 183.
2 From under the right front mount, remove the screw (A).
Note: Use a #1 Phillips screwdriver.
