Lexmark MS410 series Service Manual

Removal procedures
Keep the following tips in mind as you replace parts:
• Some removal procedures require removing cable ties. You must replace cable ties during reassembly to avoid
pinching wires, obstructing the paper path, or restricting mechanical movement.
• Remove the toner cartridge, imaging unit, and media tray before removing other printer parts. The imaging unit
should be carefully set on a clean, smooth, and flat surface. It should also be protected from light while out of the
device.
• Disconnect all external cables from the printer to prevent possible damage during service.
• Unless otherwise stated, reinstall the parts in reverse order of removal.
• When reinstalling a part held with several screws, start all screws before the final tightening.
Left side removals
Left cover removal
1 Position the printer so that it sits on its right side.
2 Open the front door.
3 Remove the two screws (A) securing the left cover.

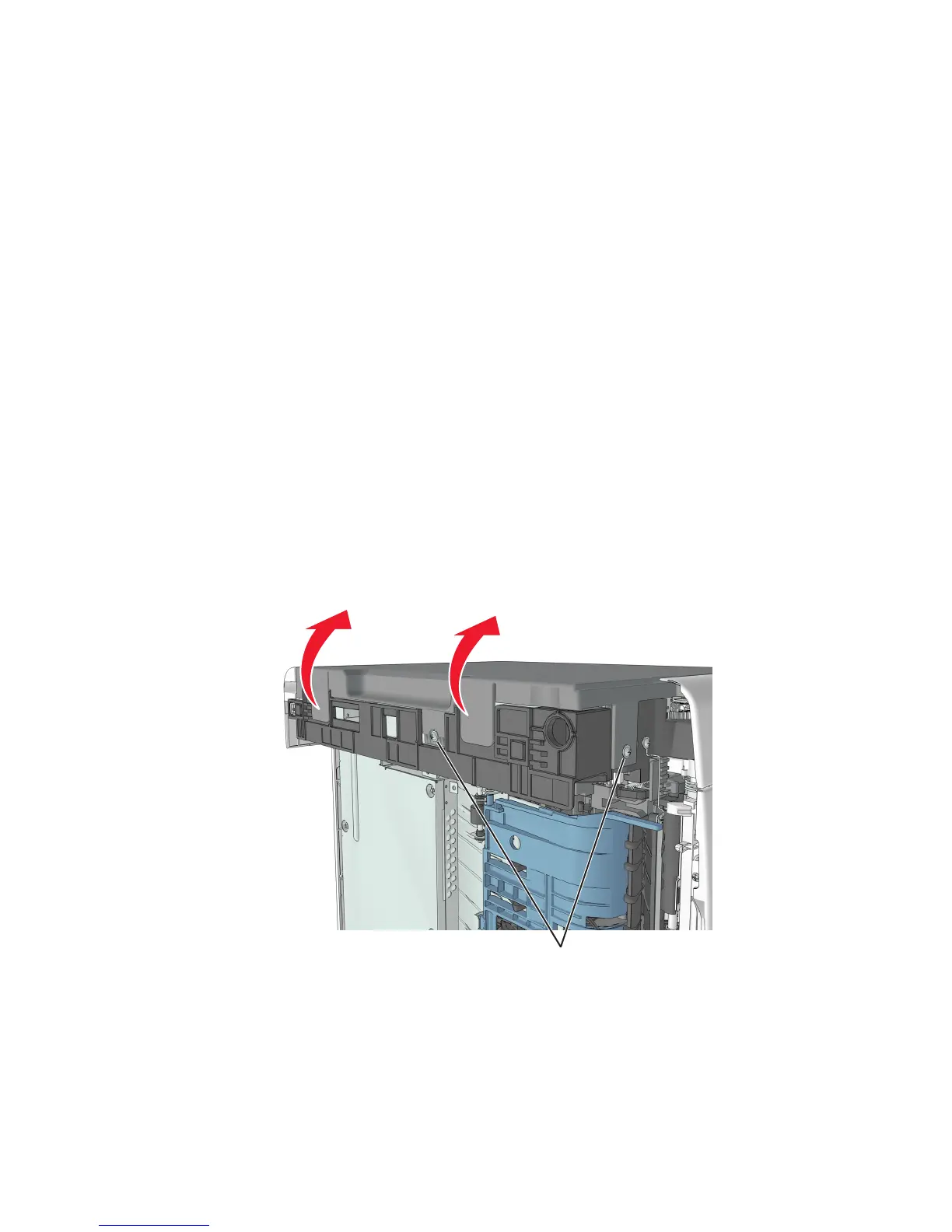

4 Release the latches, and swing the left cover upward to remove.
A
4514-420, -430
Repair information
146
