Lexmark MS410 series Service Manual

Cartridge gearbox removal
1 Remove the left cover. See “Left cover removal” on page 146.

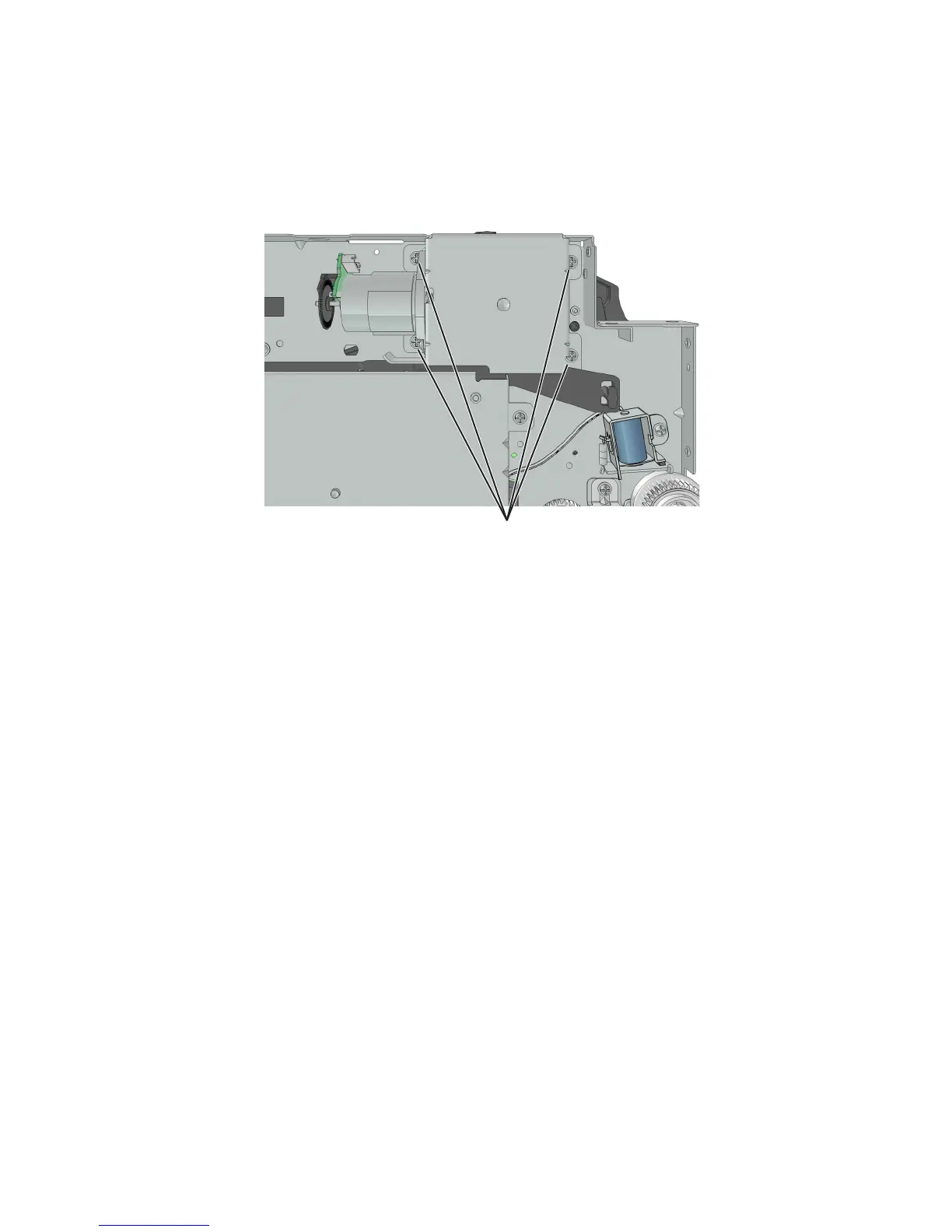

2 Remove the four screws (A) securing the cartridge gearbox.
A
3 Disconnect the cable from the cartridge gearbox.
Duplex gear assembly removal
1 Remove the left cover. See “Left cover removal” on page 146.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 207.
3 Remove the power supply. See “Power supply removal” on page 191.
4 Remove the power supply shield. See “Power supply shield removal” on page 192.
5 Remove the duplex. See “Duplex removal” on page 193.
6 Position the printer so that it sits on its right side.
7 Remove the E‑clip (A).
8 Remove the screw (B).
9 Remove the screw (C).
4514-420, -430
Repair information
160
